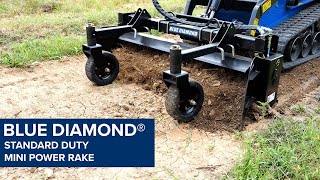

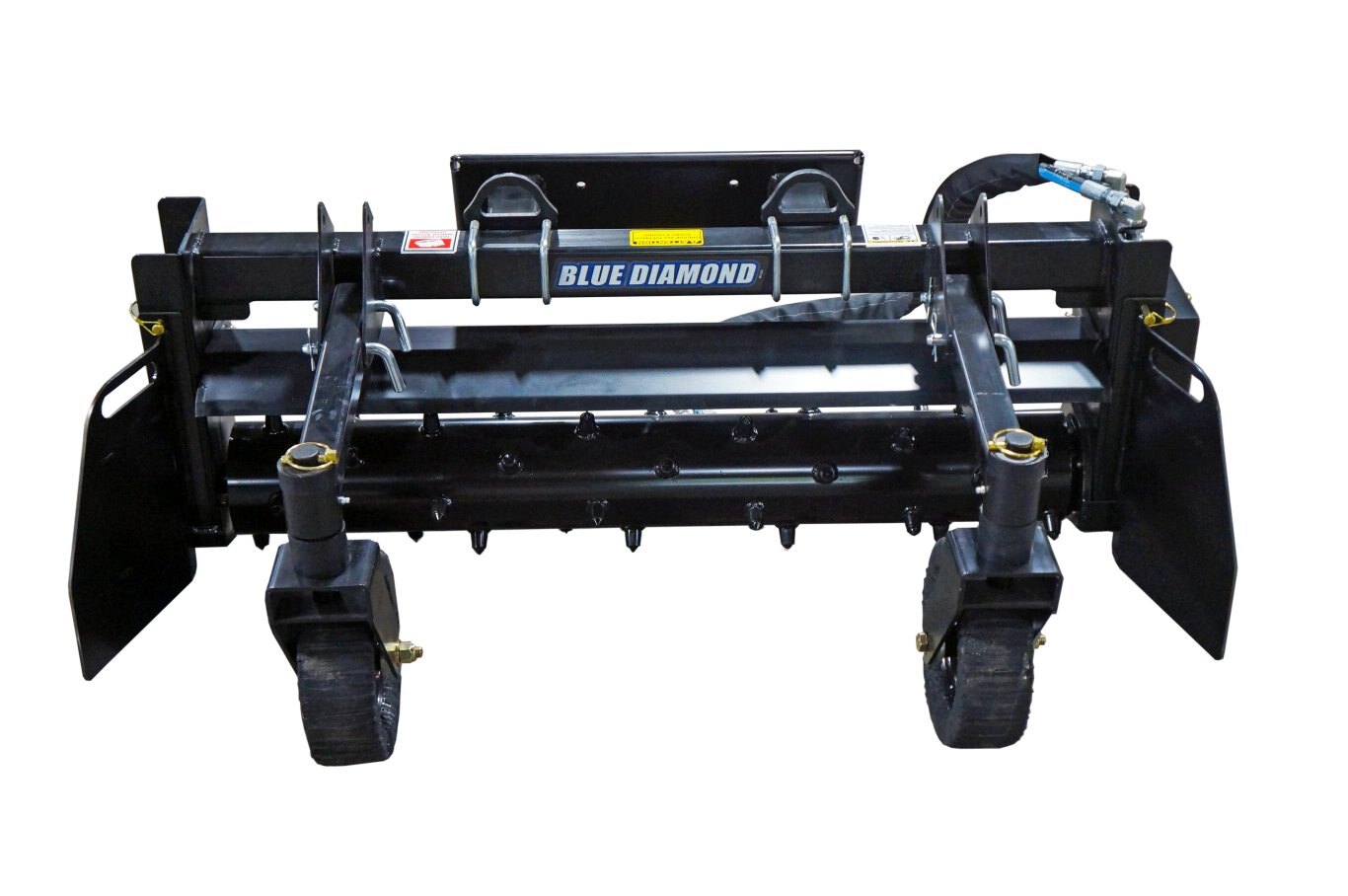

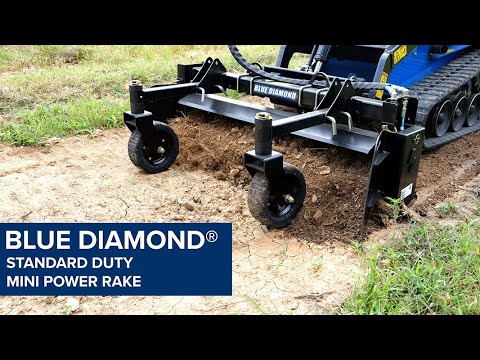

Blue Diamond Mini Power Rake - Standard Duty

Name: Blue Diamond Mini Power Rake - Standard Duty
Brand: Blue Diamond
Availability: OutOfStock

Videos

Call for Price

Get a Quote Get Financed Value a Trade Contact Us Book a Demo Get Directions Get Directions Print

Overview

This lighter unit is suited to smaller frame skid steers and walk behind machines. The bolt-on mount allows greater flexibility for rental companies and dealers to have the correct model for the right machine, with mounts offered for mini and full size skid steer machines.

Specifications

Model

Mini Power Rake - Standard Duty

Category Name

Attachments

Year

2026

Sale Type

New

Manufacturer

Blue Diamond

features & benefits

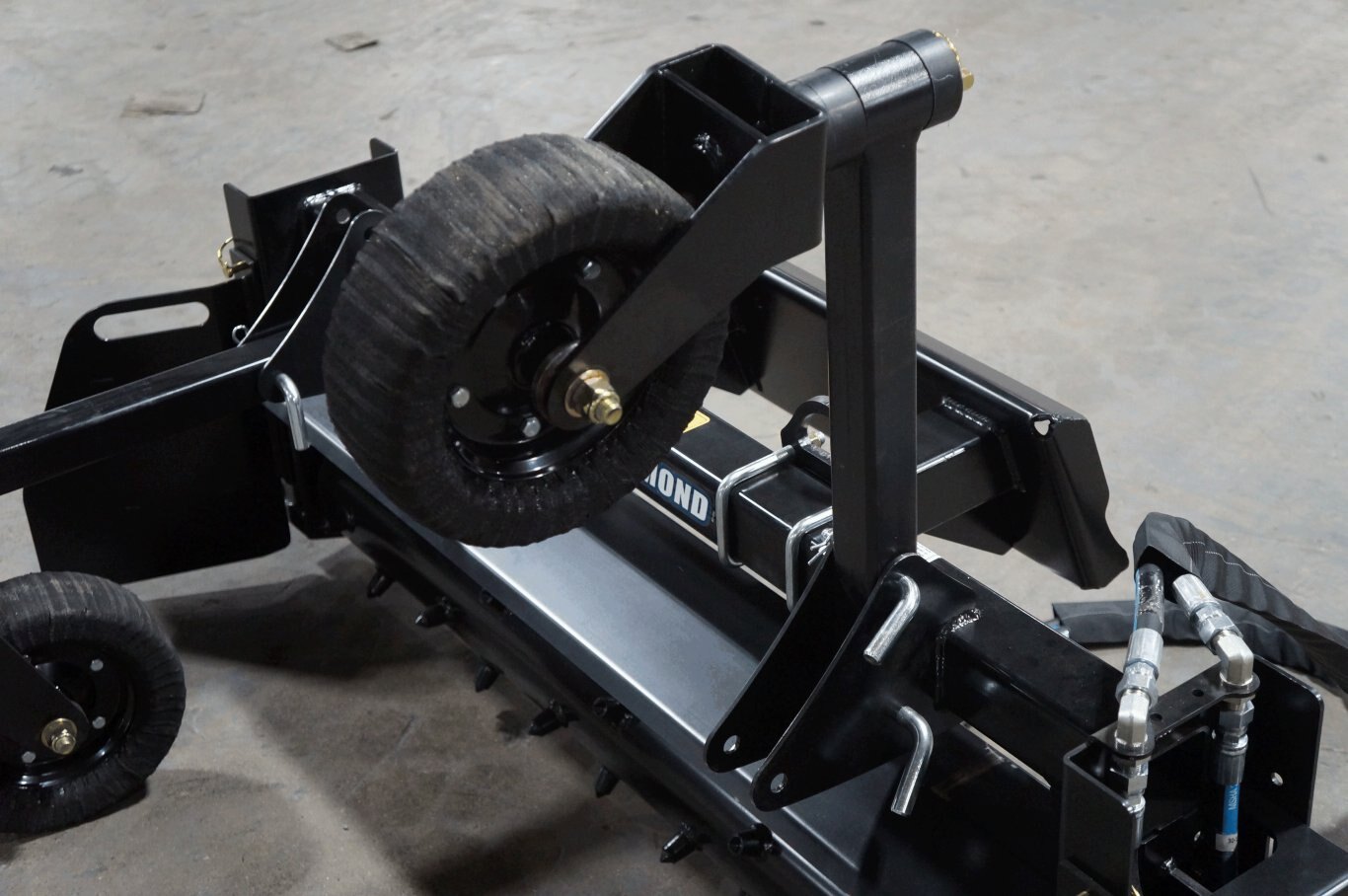

Flip up wheels
No-flat airless wheels
Drum width 48″, 60″ and 72″
5/8″ greaseable axles on wheels
7″ diameter drum with 1.5″ teeth
Overall width 12″ more than drum width
1.25″ spindles with adjustable height

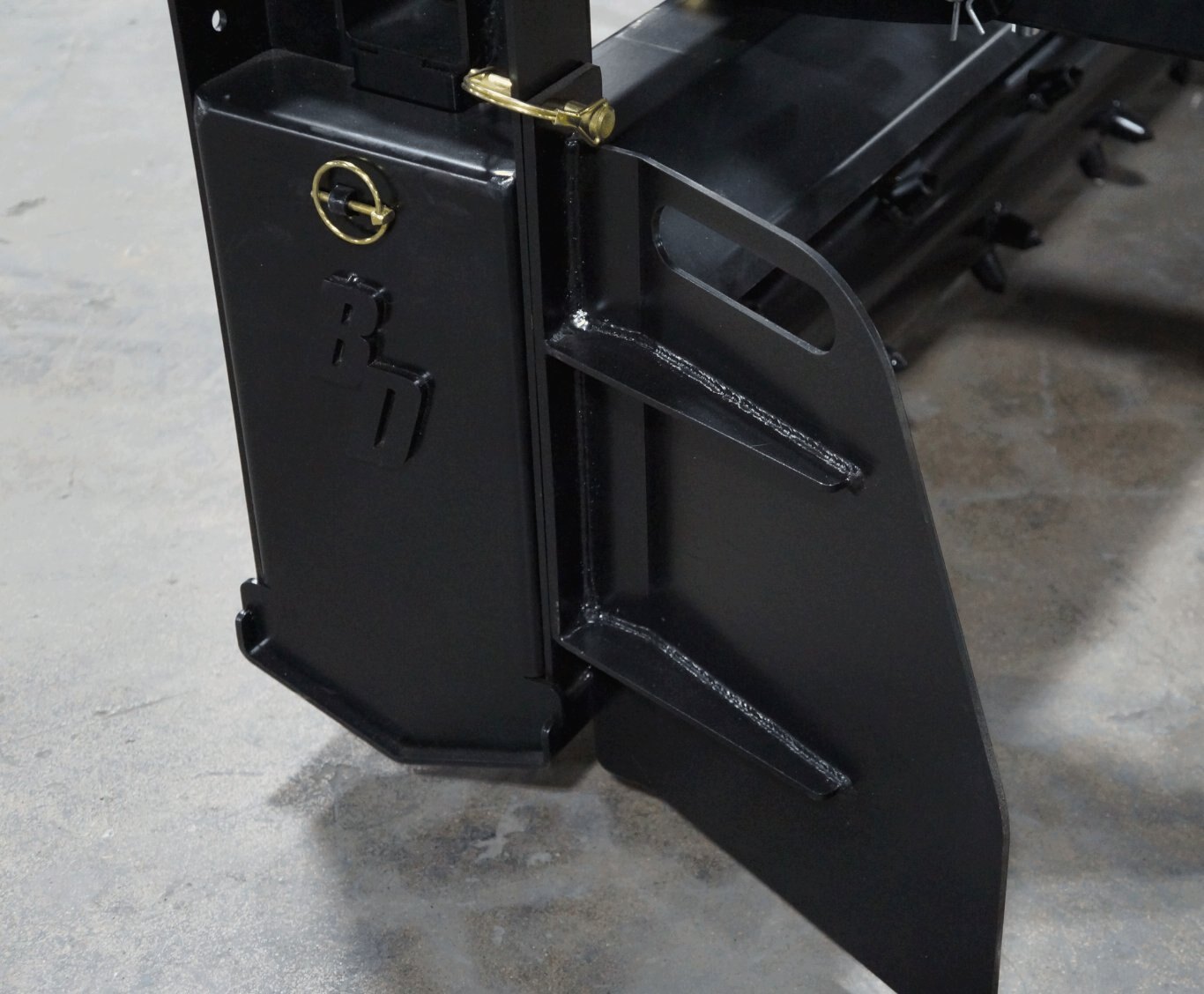

Bolt-on mount (can be switched for a different mini or full size skid steer mount)

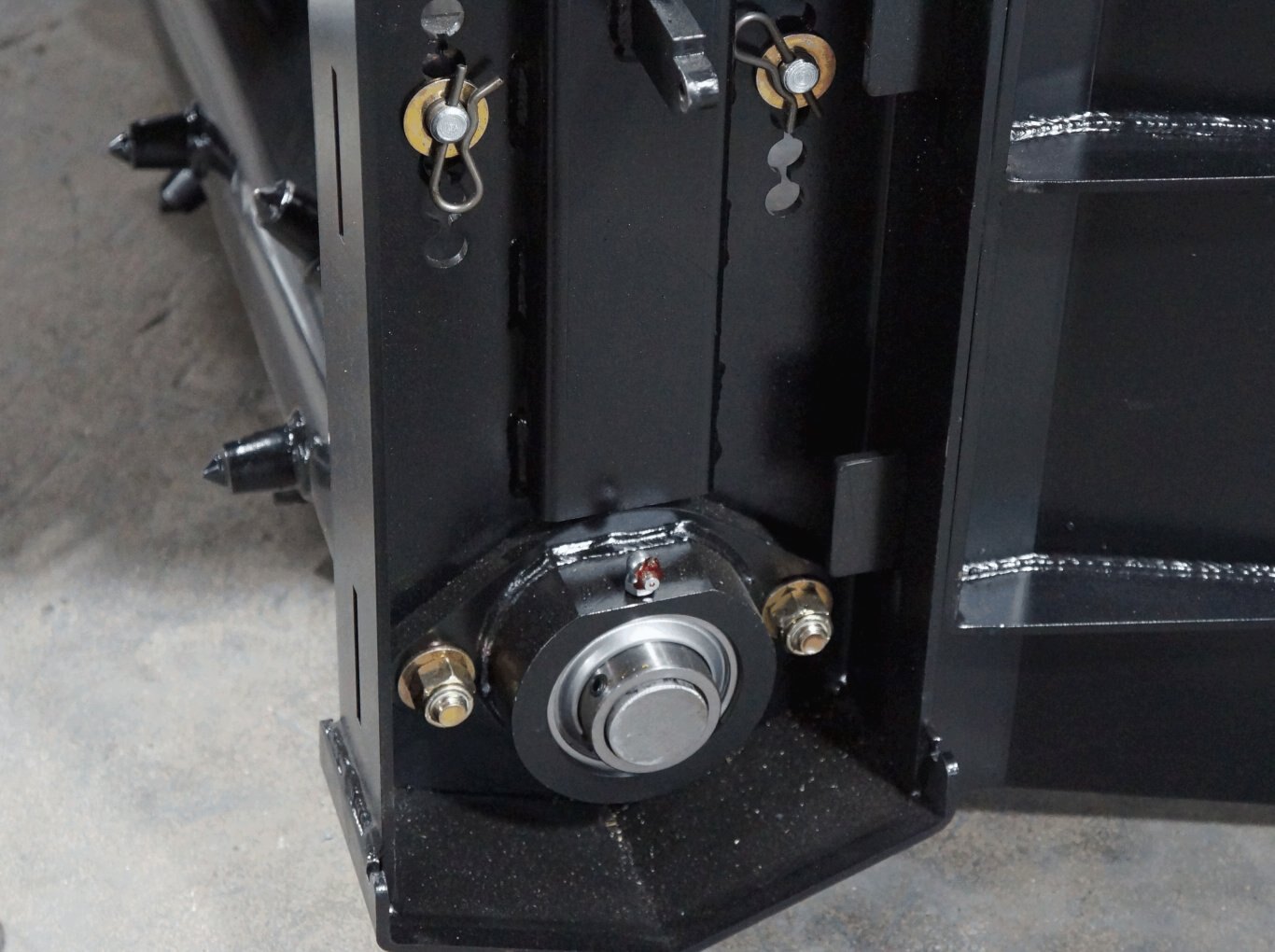

Spindles on drum are 1 3/8″ diameter greaseable bearings
Fixed carbide teeth
Available with manual or hydraulic angle

technical data

Part Number*	Working Width (Straight)	Working Width (Angled) 10°/20°	Overall Width (Straight)	Weight**
332450	48"	—	60"	500 lbs
332451	48"	46"/44"	60"	600 lbs
332452	48"	46"/44"	60"	625 lbs
332453	60"	—	72"	600 lbs
332454	60"	58"56"	72"	650 lbs
332455	60"	58"56"	72"	675 lbs
332456	72"	—	84"	700 lbs
332457	72"	70"68"	84"	750 lbs
332458	72"	70"68"	84"	750 lbs
* — Add -25 for Mini Universal and add -26 for Bobcat MT.				** — Weight varies on mount.
