Blue Diamond MINI BUCKET

Name: Blue Diamond MINI BUCKET
Brand: Blue Diamond
Availability: OutOfStock

Call for Price

Get a Quote Get Financed Value a Trade Contact Us Book a Demo Get Directions Get Directions Print

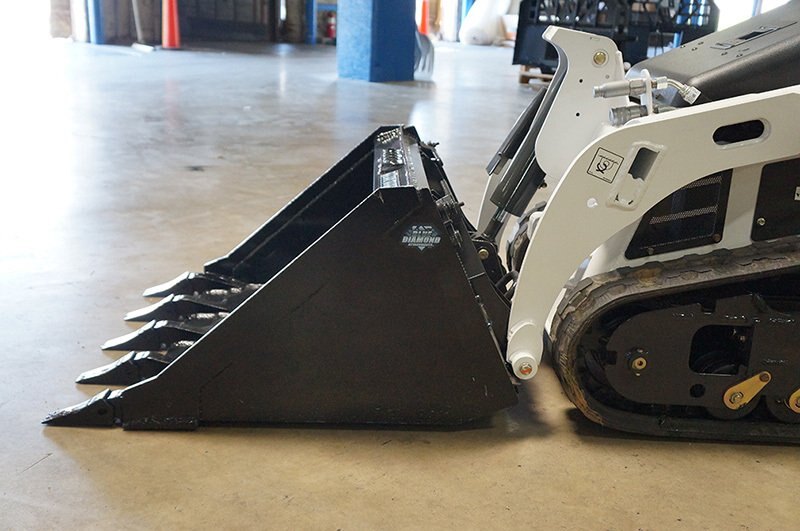

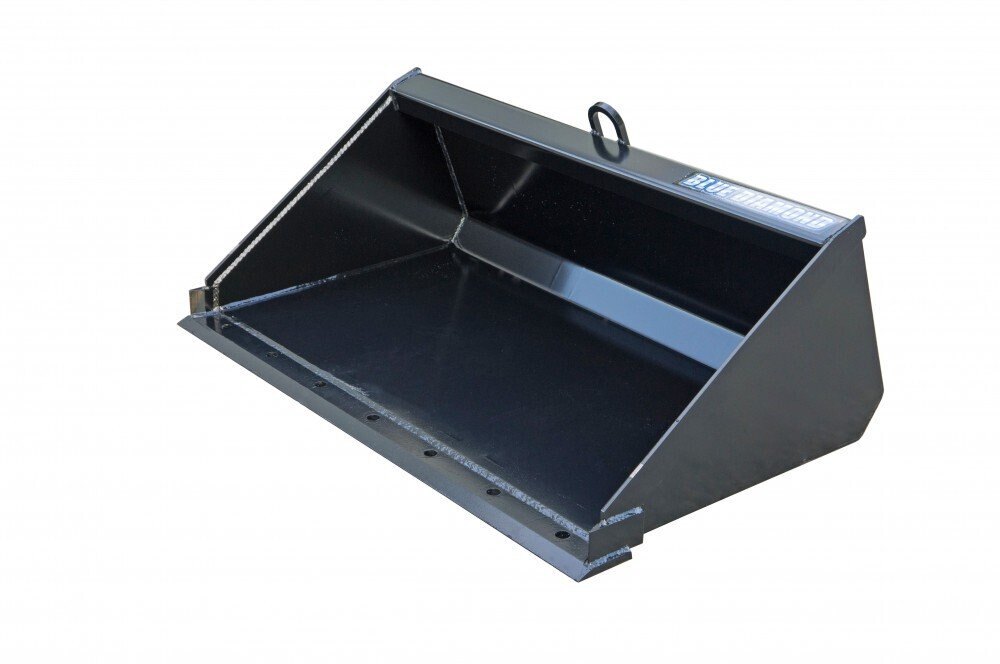

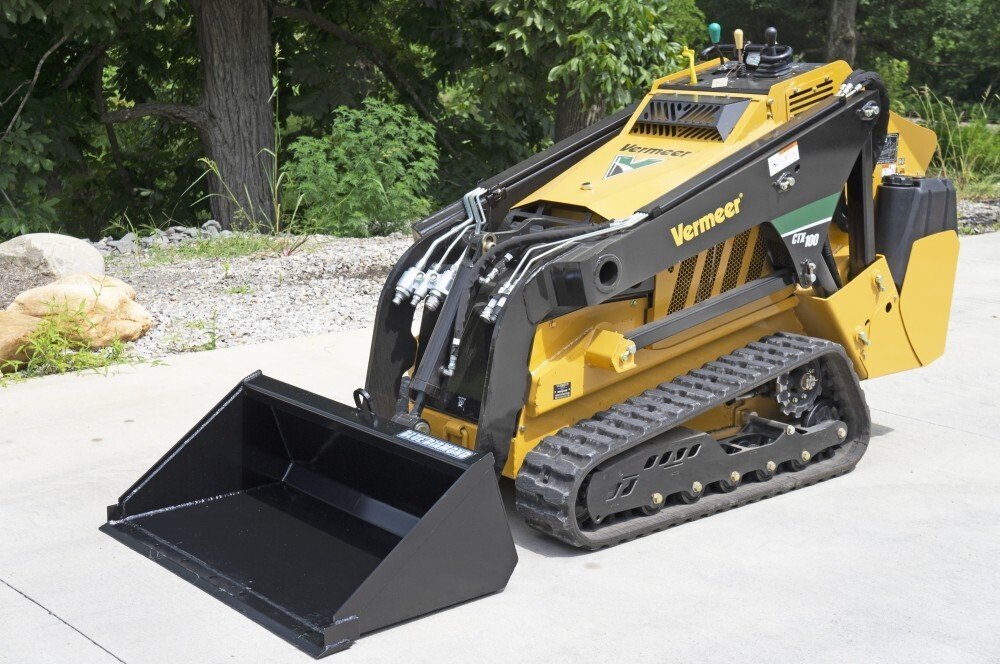

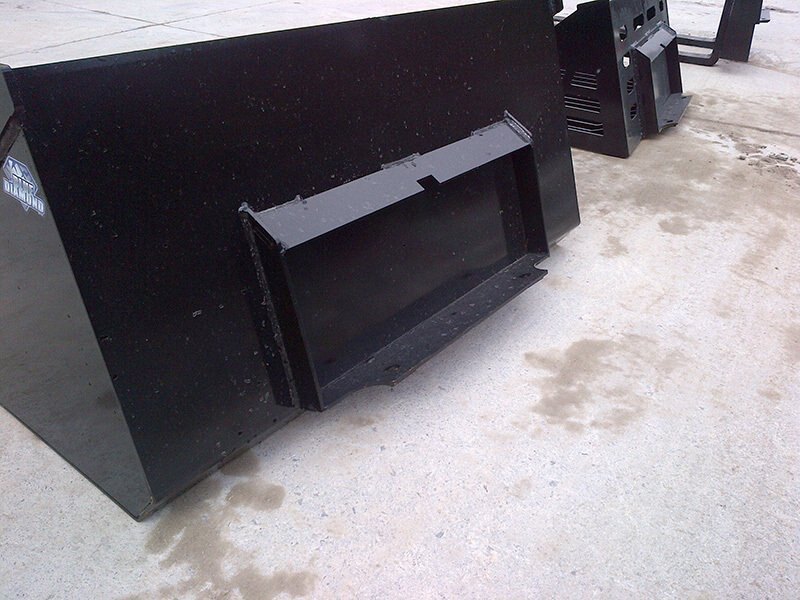

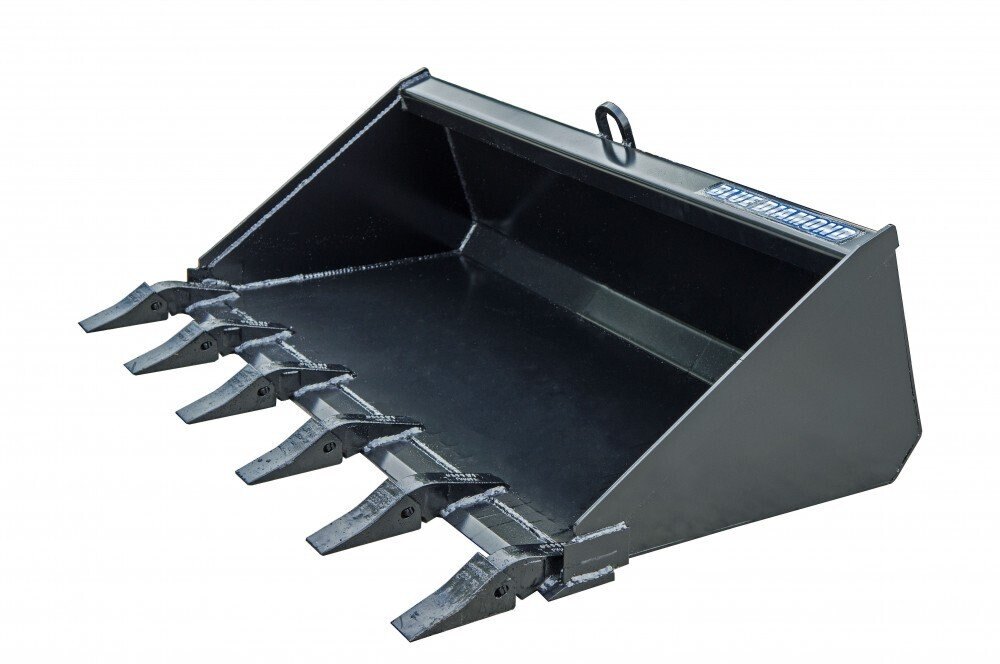

Blue Diamond® Mini Buckets come with either a 15” or 20” back height. Constructed sturdier than most OEM buckets, these durable buckets are built for the long haul when paired with your mini skid steer! They are available in smooth and tooth, and a bolt-on edge is an available option for extra protection against wear and tear. Standard widths are from 36” to 60” wide with a bottom length of 25″ deep. Each bucket comes standard with a D-ring. Rental Recommended.

Specifications

Model

MINI BUCKET

Category Name

Attachments

Year

2026

Sale Type

New

Manufacturer

Blue Diamond

features & benefits

Bottom length depth of 25”
Constructed of 3/16” A36 steel
Available with smooth or tooth edge
15” or 20” tall
Comes standard with D-ring
Optional bolt-on cutting edge (for smooth)
Mounts available to fit most mini skid steers

technical data

Part Number	Model	Struck Cap.	Weight
108005	34" Bucket, Low Profile, 15" Back Smooth	3.83 CU FT	160 lbs
108007	34" Bucket, Low Profile, 15" Back Tooth	3.83 CU FT	166 lbs
108010	36" Bucket, Low Profile, 15" Back Smooth	4.43 CU FT	181 lbs
108015	36" Bucket, Low Profile, 15" Back Tooth	4.43 CU FT	200 lbs
108020	42" Bucket, Low Profile, 15" Back Smooth	5.17 CU FT	225 lbs
108025	42" Bucket, Low Profile, 15" Back Tooth	5.17 CU FT	250 lbs
108030	44" Bucket, Low Profile, 15" Back Smooth	5.42 CU FT	255 lbs
108031	44" Bucket, Low Profile, 15" Back Tooth	5.42 CU FT	269 lbs
108040	48" Bucket, Low Profile, 15" Back Smooth	5.91 CU FT	275 lbs
108050	50" Bucket, Low Profile, 15" Back Smooth	6.00 CU FT	285 lbs
108055	50" Bucket, Low Profile, 15" Back Tooth	6.00 CU FT	295 lbs
108060	52" Bucket, Low Profile, 15" Back Smooth	6.00 CU FT	305 lbs
108065	52" Bucket, Low Profile, 15" Back Tooth	6.00 CU FT	315 lbs
108070	54" Bucket, Low Profile, 15" Back Smooth	6.12 CU FT	325 lbs
108075	54" Bucket, Low Profile, 15" Back Tooth	6.12 CU FT	335 lbs
108089	60" Bucket, Low Profile, 15" Back Smooth	6.83 CU FT	340 lb
108095	60" Bucket, Low Profile, 15" Back Tooth	6.83 CU FT	373 lbs
108140	60" Bucket, Low Profile, Long Bottom, Smooth	6.83 CU FT	385 lbs

108006	34" Bucket, Low Profile, 20" Back Smooth	5.83 CU FT	229 lbs
108012	36" Bucket, Low Profile, 20" Back Smooth	6.14 CU FT	249 lbs
108017	36" Bucket, Low Profile, 20" Back Tooth	6.14 CU FT	250 lbs
108022	42" Bucket, Low Profile, 20" Back Smooth	7.16 CU FT	269 lbs
108027	42" Bucket, Low Profile, 20" Back Tooth	7.16 CU FT	279 lbs
108032	44" Bucket, Low Profile, 20" Back Smooth	7.50 CU FT	275 lbs
108037	44" Bucket, Low Profile, 20" Back Tooth	7.50 CU FT	285 lbs
108042	48" Bucket, Low Profile, 20" Back Smooth	8.19 CU FT	310 lbs
108047	48" Bucket, Low Profile, 20" Back Tooth	8.19 CU FT	320 lbs
108052	50" Bucket, Low Profile, 20" Back Smooth	8.59 CU FT	330 lbs
108057	50" Bucket, Low Profile, 20" Back Tooth	8.59 CU FT	340 lbs
108062	52" Bucket, Low Profile, 20" Back Smooth	8.87 CU FT	350 lbs
108067	52" Bucket, Low Profile, 20" Back Tooth	8.87 CU FT	360 lbs
108072	54" Bucket, Low Profile, 20" Back Smooth	9.29 CU FT	370 lbs
108077	54" Bucket, Low Profile, 20" Back Tooth	9.29 CU FT	380 lbs
108090	60" Bucket, Low Profile, 20" Back Smooth	6.83 CU FT	334 lbs
