Blue Diamond Tractor Rotary Cutter - Standard Duty

Name: Blue Diamond Tractor Rotary Cutter - Standard Duty
Brand: Blue Diamond
Availability: OutOfStock

Videos

Call for Price

Get a Quote Get Financed Value a Trade Contact Us Book a Demo Get Directions Get Directions Print

Overview

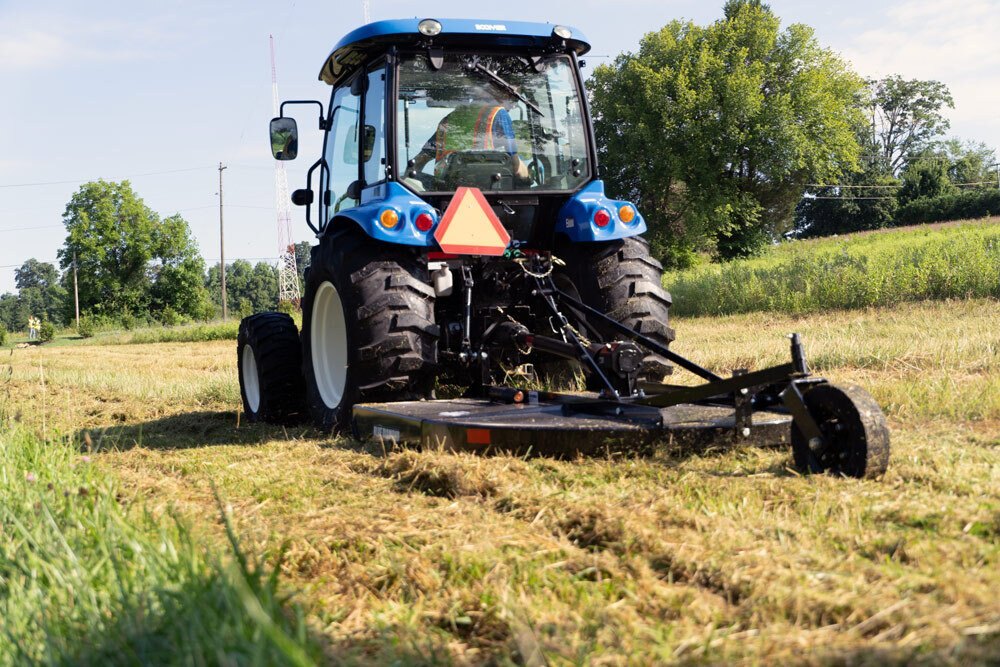

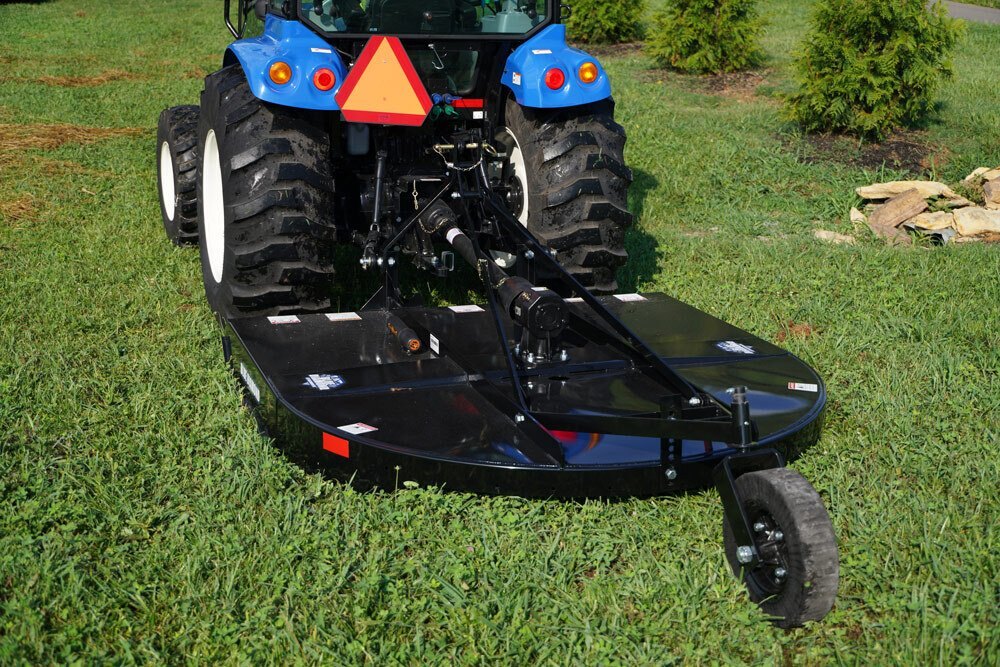

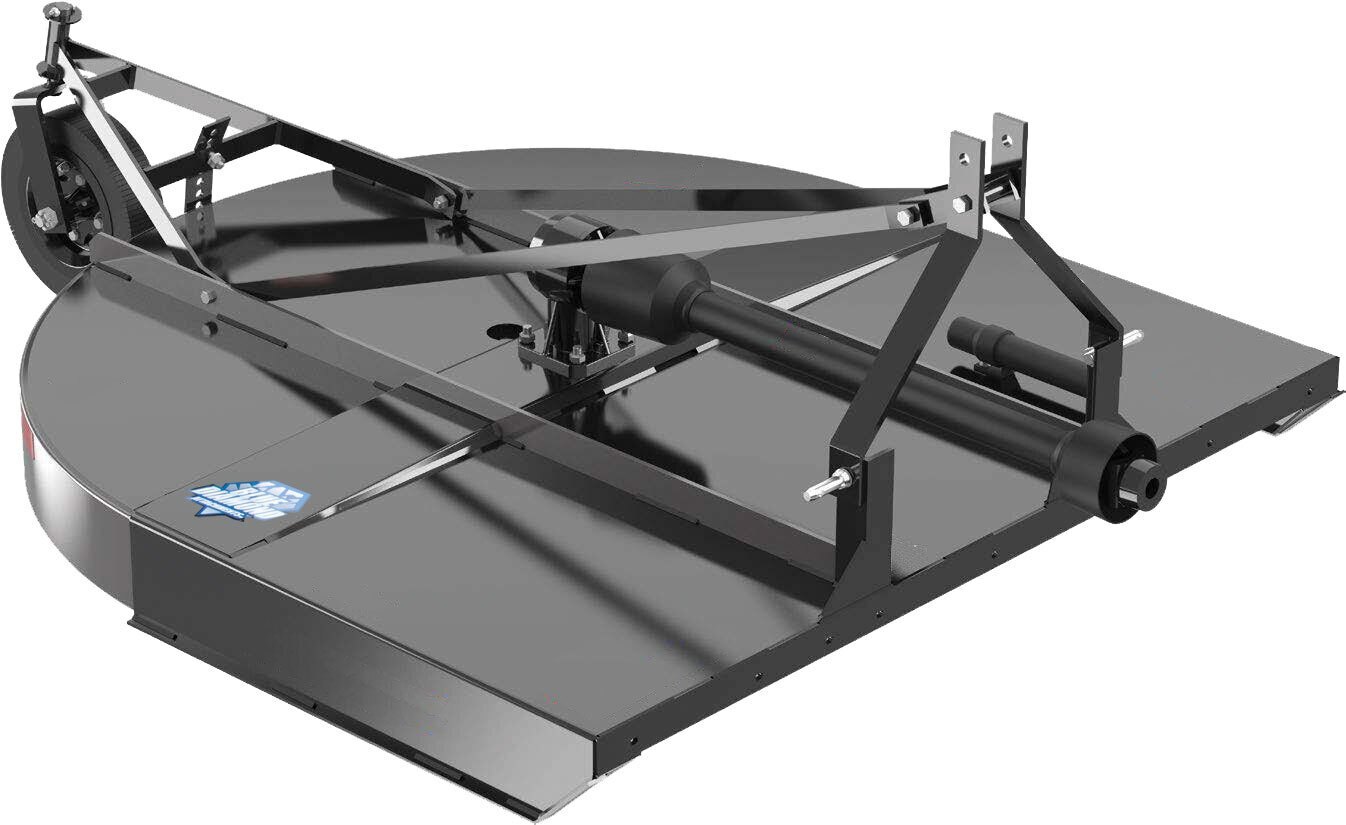

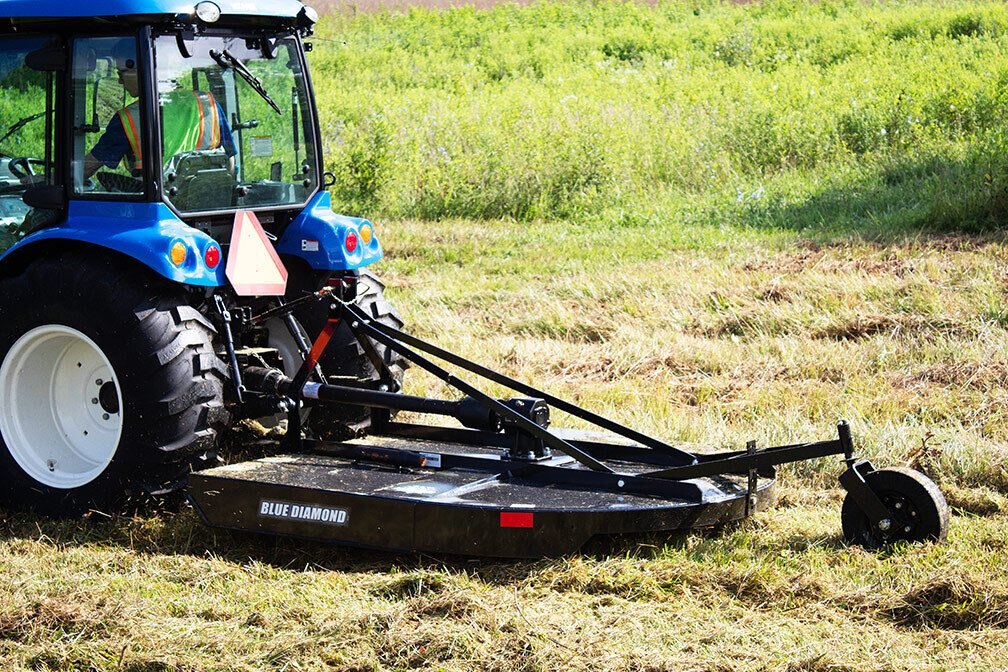

The Blue Diamond® Standard Duty Rotary Cutters easily handle limbs and branches up to 1 inch, clearing your way without trouble. Your implement is made of thick steel that will last season after season. Keep your implement protected – the stump jumper avoids damage by lifting the mower up and over rocks and other obstacles.

Specifications

Model

Tractor Rotary Cutter - Standard Duty

Category Name

Attachments

Year

2026

Sale Type

New

Manufacturer

Blue Diamond

features & benefits

Available in 4', 5’, and 6' widths
Fits 18 – 60 HP machines
1” cutting capacity
1 1/2" to 9" cutting height
45 HP gearbox
Laminated 15"tire
Category 1 hitch

technical data

Part Number	403060	403065	403070
Model	4"	5'	6'
Horsepower Reg.	18-45 HP	20-50 HP	25-60 HP
Weight	463 lbs	530 lbs	623 lbs
Length (w Tailwheel)	77"	86"	93"
Overall Width	51"	64"	75"
Cutting Width	48"	60"	72"
Cutting Height	1 1/2 - 9"	1 1/2 - 9"	1 1/2 - 9"
Cutting Capacity	Up to 1"	Up to 1"	Up to 1"
Deck Thickness	12 GA.	12 GA.	12 GA.
Hitch	Category 1	Category 1	Category 1
Quick Hitch Compatible	Yes	Yes	Yes
Gearbox	45 HP Cast Iron Housing & Precision Forged Steel Gears	45 HP Cast Iron Housing & Precision Forged Steel Gears	45 HP Cast Iron Housing & Precision Forged Steel Gears
Stump Jumper	1/8" Thick, Round 22.3" Pan-Type	1/8" Thick, Round 22.3" Pan-Type	1/8" Thick, Round 22.3" Pan-Type
Blades	1/2" x 3" Heat-Treated & Free Swinging w/Suction Lift	1/2" x 3" Heat-Treated & Free Swinging w/Suction Lift	1/2" x 3" Heat-Treated & Free Swinging w/Suction Lift
Blade Tip Speed	9,982 ft/min	12,478 ft/min	14,974 ft/min
Driveline Protection	Shear Bolt	Shear Bolt	Shear Bolt
Tailwheel	15" Laminated Tire	15" Laminated Tire	15" Laminated Tire
Safety Guard	Optional Rubber Front/Metal Rear	Optional Rubber Front/Metal Rear	Optional Rubber Front/Metal Rear
