Blue Diamond ROTOTILLER – LIGHT, STANDARD, AND HEAVY DUTY

Name: Blue Diamond ROTOTILLER – LIGHT, STANDARD, AND HEAVY DUTY
Brand: Blue Diamond
Availability: OutOfStock

Call for Price

Get a Quote Get Financed Value a Trade Contact Us Book a Demo Get Directions Get Directions Print

Overview

Blue Diamond® Rototillers are designed and manufactured for many years of dependable use. Designed to work with 20 hp to 65 hp tractors, this rototiller is available in 48”, 60”, 72”, and 84” widths. With our heavy gear-driven transmission, you can till up to 8” deep. A standard slip clutch protects the gearboxes and the driveline from damage.

Specifications

Model

ROTOTILLER – LIGHT, STANDARD, AND HEAVY DUTY

Category Name

Attachments

Year

2026

Sale Type

New

Manufacturer

Blue Diamond

features & benefits

Available in 48", 60", 72", or 84" widths
Up to 8” cutting depth
Heavy duty gear-driven system
Standard slip clutch protects gearbox and driveline
2-year warranty

technical data

Part Number	429010	429015	429020	429030
MODEL	Light Duty	Standard Duty	Standard Duty	Heavy Duty
HORSEPOWER	20-25	25-50	25-50	50-65
WIDTH	48”	60”	72”	84”
WORKING DEPTH	7"	7"	7"	8"
WEIGHT	397 lbs	578 lbs	684 lbs	993 lbs
DRIVE TYPE	Heavy Duty Gear Drive	Heavy Duty Gear Drive	Heavy Duty Gear Drive	Heavy Duty Gear Drive
FLANGES	6	7	9	9

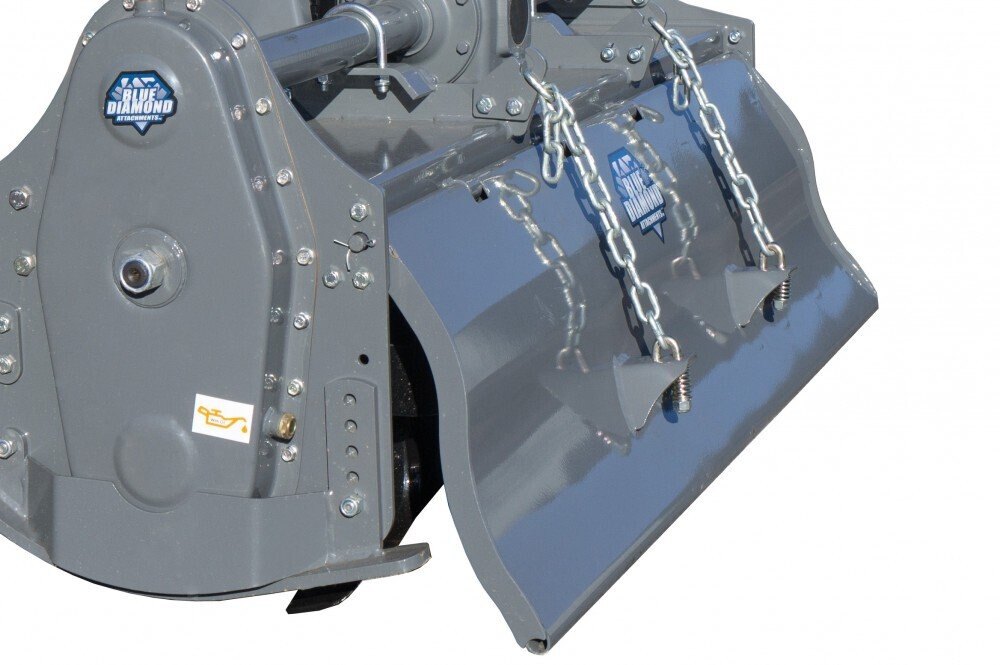

DEFLECTOR	Rear Hinged	Rear Hinged	Rear Hinged	Rear Hinged
DRIVELINE	Heavy Duty Slip Clutch	Heavy Duty Slip Clutch	Heavy Duty Slip Clutch	Heavy Duty Slip Clutch
HITCH	CAT 1	CAT 1	CAT 1	Cat 1 & 2
GEARBOX WARRANTY	2-year limited	2-year limited	2-year limited	2-year limited
