Blue Diamond Rotary Cutter - 15 Flex-Wing

Name: Blue Diamond Rotary Cutter - 15 Flex-Wing
Brand: Blue Diamond
Availability: OutOfStock

Call for Price

Get a Quote Get Financed Value a Trade Contact Us Book a Demo Get Directions Get Directions Print

Overview

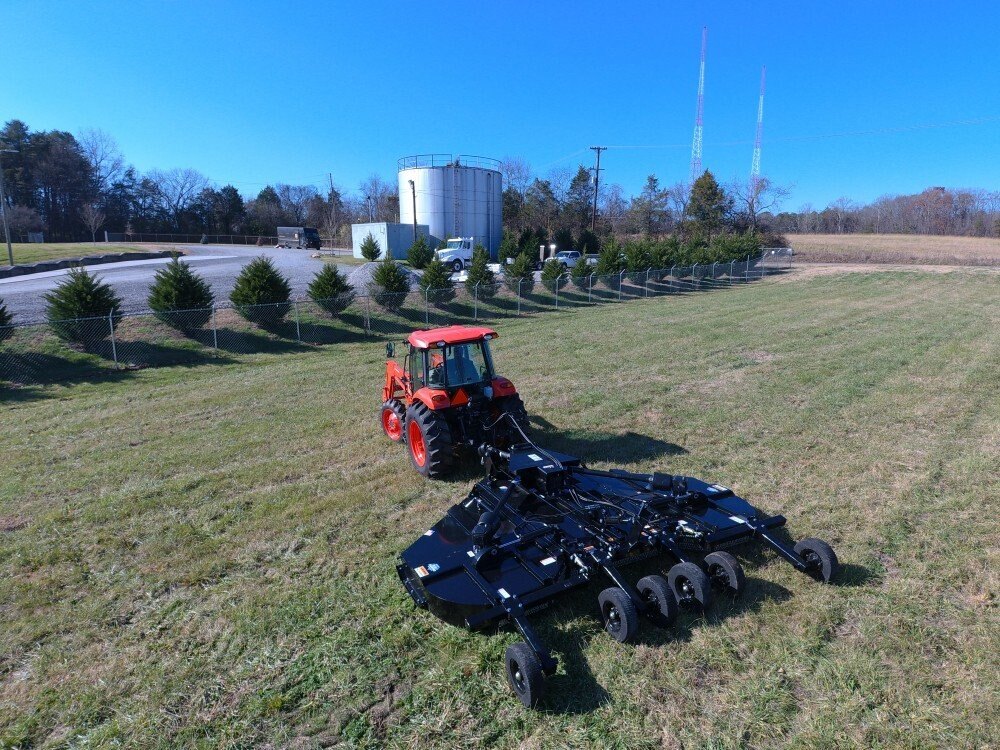

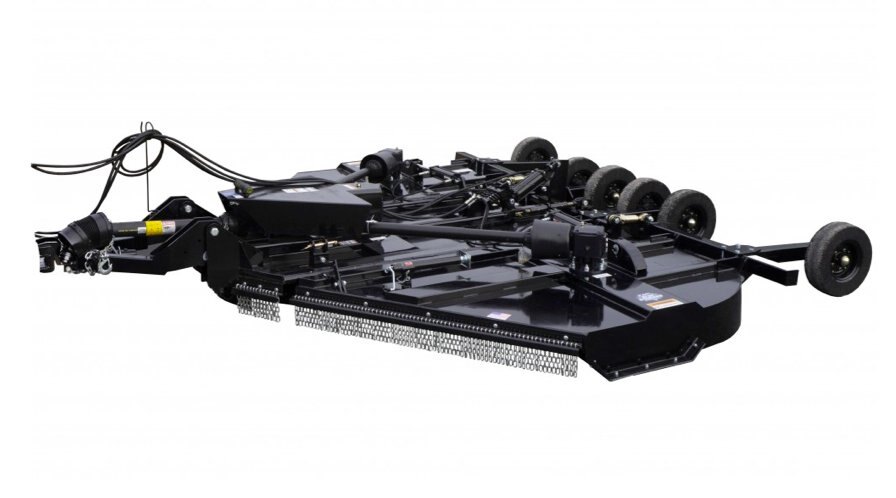

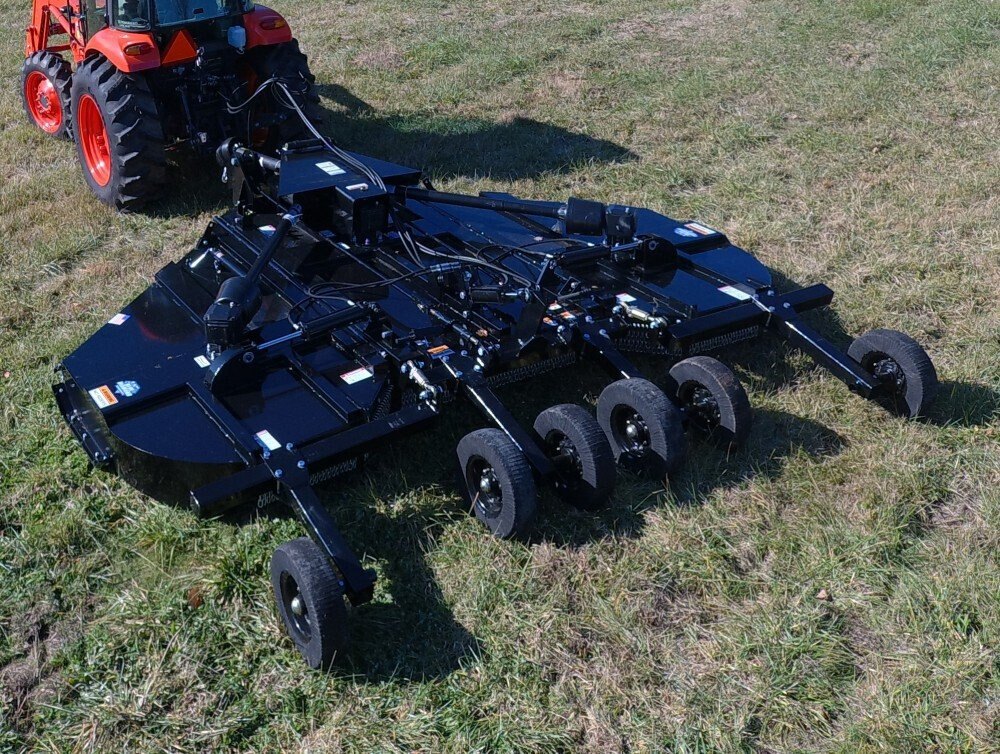

With its heavily braced deck and triple spring suspension, the Blue Diamond® 15′ Flex-Wing Rotary Cutter is designed for heavy duty applications such as weeds, grass, and brush up to 4” diameter. Designed for use with tractors as small as 55 HP, the cutter has a 180” cutting width. The cutter uses three spindles with two free-swinging blades each to reduce the shock of hitting a stationary object. Slip clutches protect the gearboxes and driveline from damage. Standard equipment includes driveline shields, clutch shields, front and rear chain discharge shields, and a towing safety chain.

Specifications

Model

Rotary Cutter - 15 Flex-Wing

Category Name

Attachments

Year

2026

Sale Type

New

Manufacturer

Blue Diamond

features & benefits

Protected gearboxes and drivelines
180” cutting width
2-year warranty
3.5” Cut Capacity
Comes standard with slip clutches and chain guards

technical data

403155	15'
MINIMUM HORSEPOWER	55 hp
HITCH	Swivel Pivot
DECK THICKNESS	10 GA
BODY DEPTH	9.5”
SIDE SKIRT MATERIAL	1/4” x 12”
UNDERNEATH DECK	Heavily Braced
OUTBOARD GEARBOX	190 hp
SPLITTER GEARBOX	235 hp
GEARBOX	540 RPM
BLADES	1/2” x 4”
BLADE TIP SPEED	17,135 FPM
BLADE OVERLAP	6 1/2”
BLADE CARRIER WARRANTY	5 year
WING FLEX	88 degrees up – 22 degrees down
GEARBOX WARRANTY	5 yr. limited
CUTTING WIDTH	180”
OVERALL WIDTH	188”
OVERALL LENGTH	189”
OVERALL WEIGHT	5,175 lbs
CUT HEIGHT	2” – 15”
CUTTING CAPACITY	3.5"
INPUT PTO	ASAE CAT 6 Constant Velocity
WING DRIVE PTO	ASAE CAT 4
SKID SHOES	Replaceable
CHAIN SHIELDS	Standard
TOWING SAFETY CHAINS	Standard

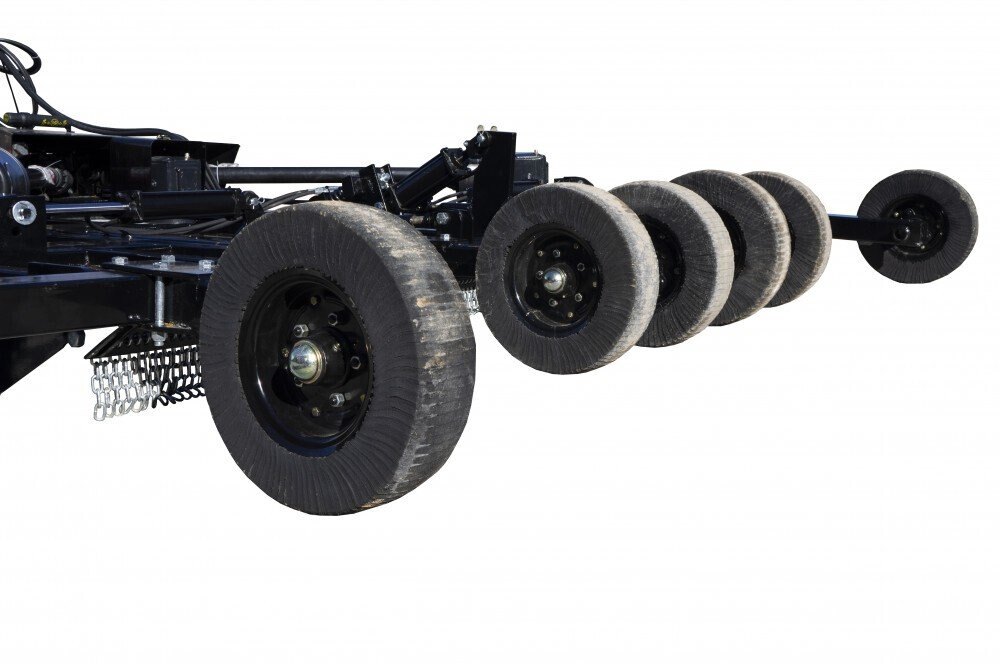

WHEEL TYPE	5 Lug Laminated Standard
BLADE CARRIERS	3/8” Formed Plate w/ 5/8” x 10 ” x 23” Blade Bar
AIRCRAFT WHEEL OPTION	403157
AIRCRAFT WHEEL W LED OPTION	403158
