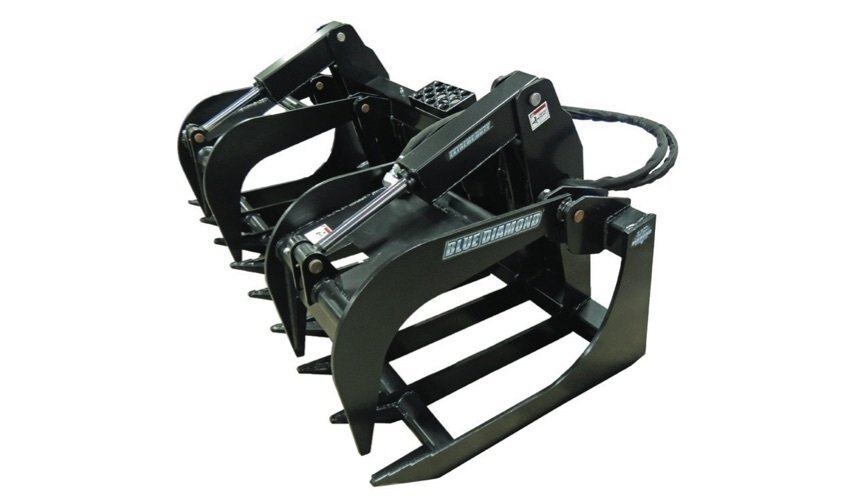

Blue Diamond Root Grapple - Severe Duty

Name: Blue Diamond Root Grapple - Severe Duty
Brand: Blue Diamond
Availability: OutOfStock

Videos

Call for Price

Get a Quote Get Financed Value a Trade Contact Us Book a Demo Get Directions Get Directions Print

Overview

This Blue Diamond® Severe Duty Root Grapple has a number of improved features that take it a step above the extreme design. An enclosed back, heavier top clamps, 1-piece tines, and hose routing are all improvements to reinforce areas that are prone to damage from heavy use. In addition, extra long tubing in the top clamp prevents twisting. Rental Recommended.

Specifications

Model

Root Grapple - Severe Duty

Category Name

Attachments

Year

2026

Sale Type

New

Manufacturer

Blue Diamond

features & benefits

1/2″, extra strong one-piece tines throughout

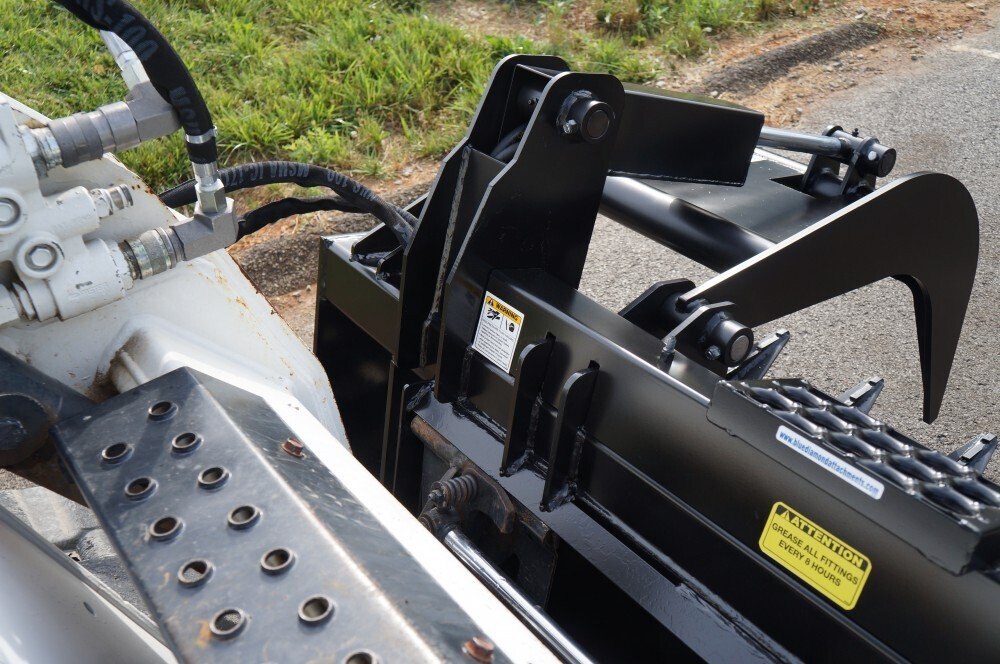

Closed in quick attach area
Reinforced top clamps

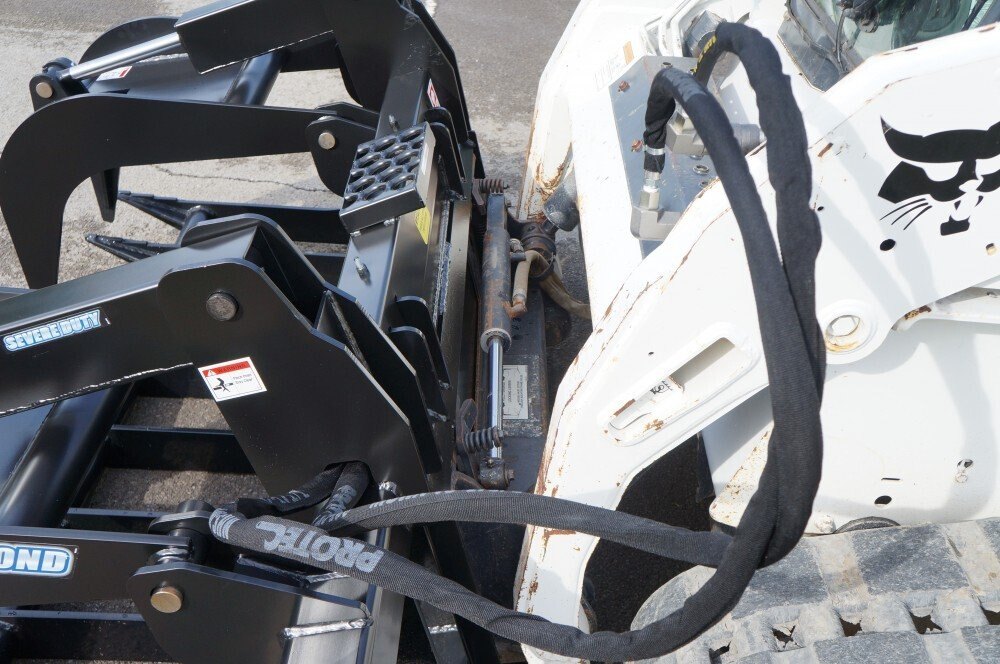

New “no pinch” hose routing
Opens to 34″
35″ deep
8″ tine spacing
1 1/4″ pivot pins in bushings with grease fittings

technical data

Part Number	Model	Weight
106440	66” Root Grapple, Severe Duty	608 lbs
106450	72” Root Grapple, Severe Duty	633 lbs
106460	78” Root Grapple, Severe Duty	689 lbs
106470	84” Root Grapple, Severe Duty	740 lbs
