Quality Attachments

Construction, Landscaping, Agriculture

ID # 67180456

Blue Diamond Pallet Forks – 6,000 Lbs. Capacity Extra Large Heavy Duty

Call for Price
Overview

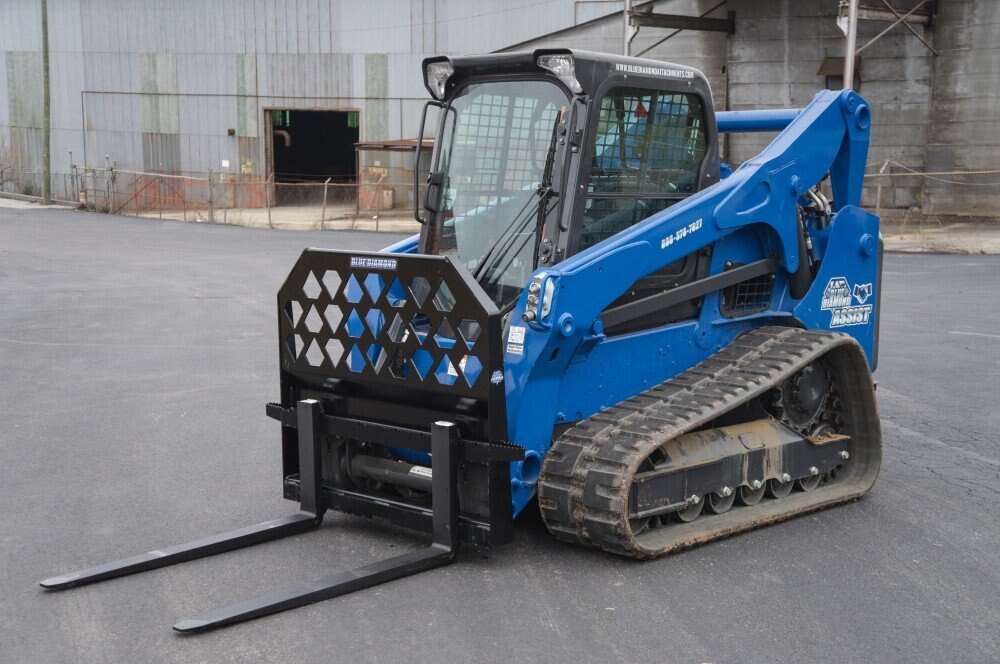

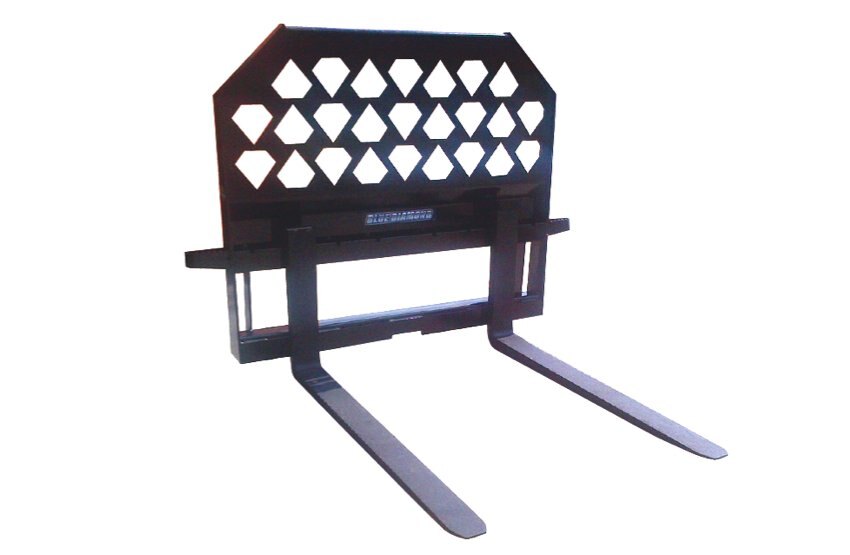

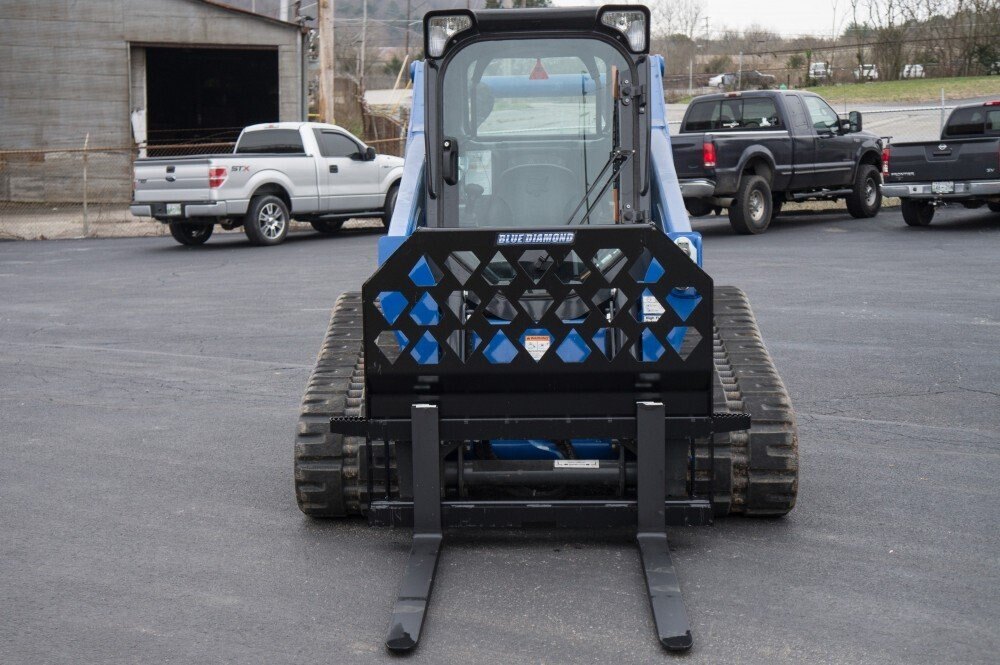

Our extra heavy duty pallet forks are rated for 6,000 lbs lift. Using an easy-to-see-through over size frame, this very heavy duty pallet fork provides added lift capacity for larger skid steers. The heavily reinforced brick guard and quick attach area make it extremely durable for heavy use. 48” x 1 3/4” tines are standard and 60” and 72” are available. These pallet forks feature an extra wide and tall frame and they are serial numbered with lifting capacities in lbs. and kgs. to meet job site requirement for lifting equipment.

Specifications
Model
Pallet Forks – 6,000 Lbs. Capacity Extra Large Heavy Duty
Category Name
Attachments
Year
2026
Sale Type
New
Manufacturer
Blue Diamond
features & benefits
  • 3” heavily reinforced carriage bar
  • 51” wide frame
  • 44” Tall frame
  • 6,000 lb. capacity
  • 48″ x 4″ x 1 3/4″ tines
  • Side steps are standard

technical data
Part Number Model Tine Size Lift Capacity Weight
314015 Pallet Fork, Extra Large HD 48" X 1/34" 6,000 lbs 500 lbs
314016 Pallet Fork, Extra Large HD 60" X 1/34" 6,000 lbs 500 lbs
314017 Pallet Fork, Extra Large HD 72" X 1/34" 6,000 lbs 591 lbs
literature
Name Link
Brochure Download



Documents
