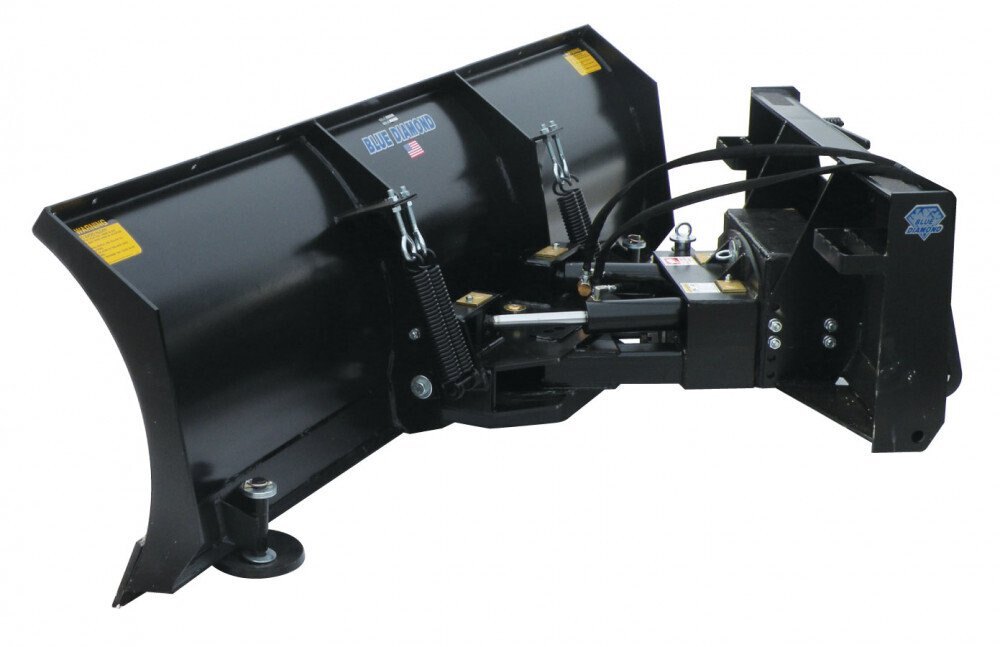

Blue Diamond Heavy Duty Series 2 Multi-Purpose Blade

Call for Price
Overview

The Blue Diamond® Heavy Duty Series 2 Multi-Purpose blade is designed for commercial tractors. At 28” tall, this blade is purpose-built for large applications and has an optional 8” height extension that can be bolted on for even more capacity. The curved back keeps the material rolling for maximum efficiency. Adjustable skid shoes allow the cutting edge to land perfectly every time. The full-trip mouldboard protects the operator and equipment from hidden obstacles or curbs. These blades have a trip-lockout pin that can be installed when using the blade for dirt applications.

*Only compatible with tractors that have a skid steer mount

Specifications
Model
Heavy Duty Series 2 Multi-Purpose Blade
Category Name
Attachments
Year
2026
Sale Type
New
Manufacturer
Blue Diamond
features & benefits
  • Available in 84”, 96”, 108”, and 120” widths
  • 28” blade height
  • Optional bolt-on 8” height extension
  • Full-trip mouldboard
  • Steel cutting edge
  • Hydraulic angle

technical data
Part Number Straight Width Angled Width Angle Height Weight
123470 84” 72 1/2" 30° 28" 901 lbs
123475 96” 82 7/8" 30° 28" 946 lbs
123480 108” 93 3/8" 30° 28" 986 lbs
123485 120” 104 1/8" 30° 28" 1,016 lbs
