Blue Diamond Grader Blade

Name: Blue Diamond Grader Blade
Brand: Blue Diamond
Availability: OutOfStock

Call for Price

Get a Quote Get Financed Value a Trade Contact Us Book a Demo Get Directions Get Directions Print

Overview

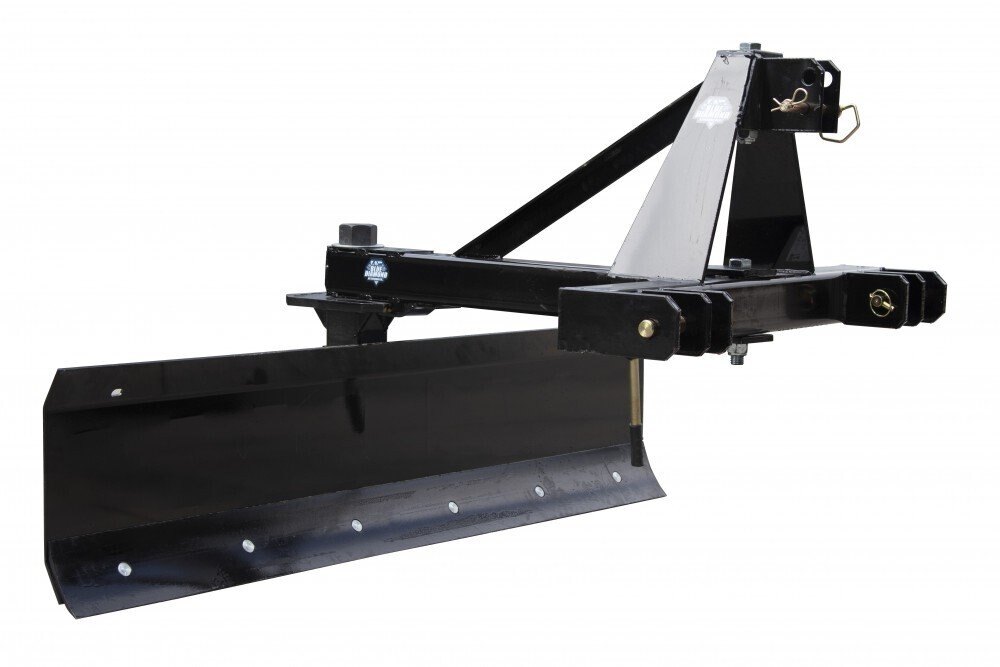

The Blue Diamond® Heavy-Duty Grader Blades are our toughest grader blades. These models will easily meet all of your land grading, leveling, or backfilling needs. Designed for 45 to 75 hp tractors, they feature a five-position angle adjustment forward and reverse, three-position tilt adjustment, utilize a ratchet jack for the offset adjustment, and are Category 1 & 2 quick hitch compatible. Three
models provide working widths from 72” to 96”.

Specifications

Model

Grader Blade

Category Name

Attachments

Year

2026

Sale Type

New

Manufacturer

Blue Diamond

features & benefits

Ratchet jack offset adjustment
Fits Category 1 and 2 hitches
Used for grading, leveling, and backfilling needs
5-position angle in forward and reverse 3-position tilt adjustment
2-year warranty

technical data

Part Number	Model	Horsepower	Width	Moldboard Height	Weight	Angle Adjustment	Tilt Adjustment	Offset Adjustment	Cutting Edges	Quick-Hitch Compatible
423010	6'	45-75	72"	17"	439 lbs	5-Postion, Forward, and Reverse	3-Position	Rachet Jack	6"	Yes
423015	7'	50-75	84"	17"	469 lbs	5-Postion, Forward, and Reverse	3-Position	Rachet Jack	6"	Yes
423020	8'	55-75	96"	17"	503 lbs	5-Postion, Forward, and Reverse	3-Position	Rachet Jack	6"	Yes
