Blue Diamond PLATE COMPACTOR

Name: Blue Diamond PLATE COMPACTOR
Brand: Blue Diamond
Availability: OutOfStock

Videos

Call for Price

Get a Quote Get Financed Value a Trade Contact Us Book a Demo Get Directions Get Directions Print

Overview

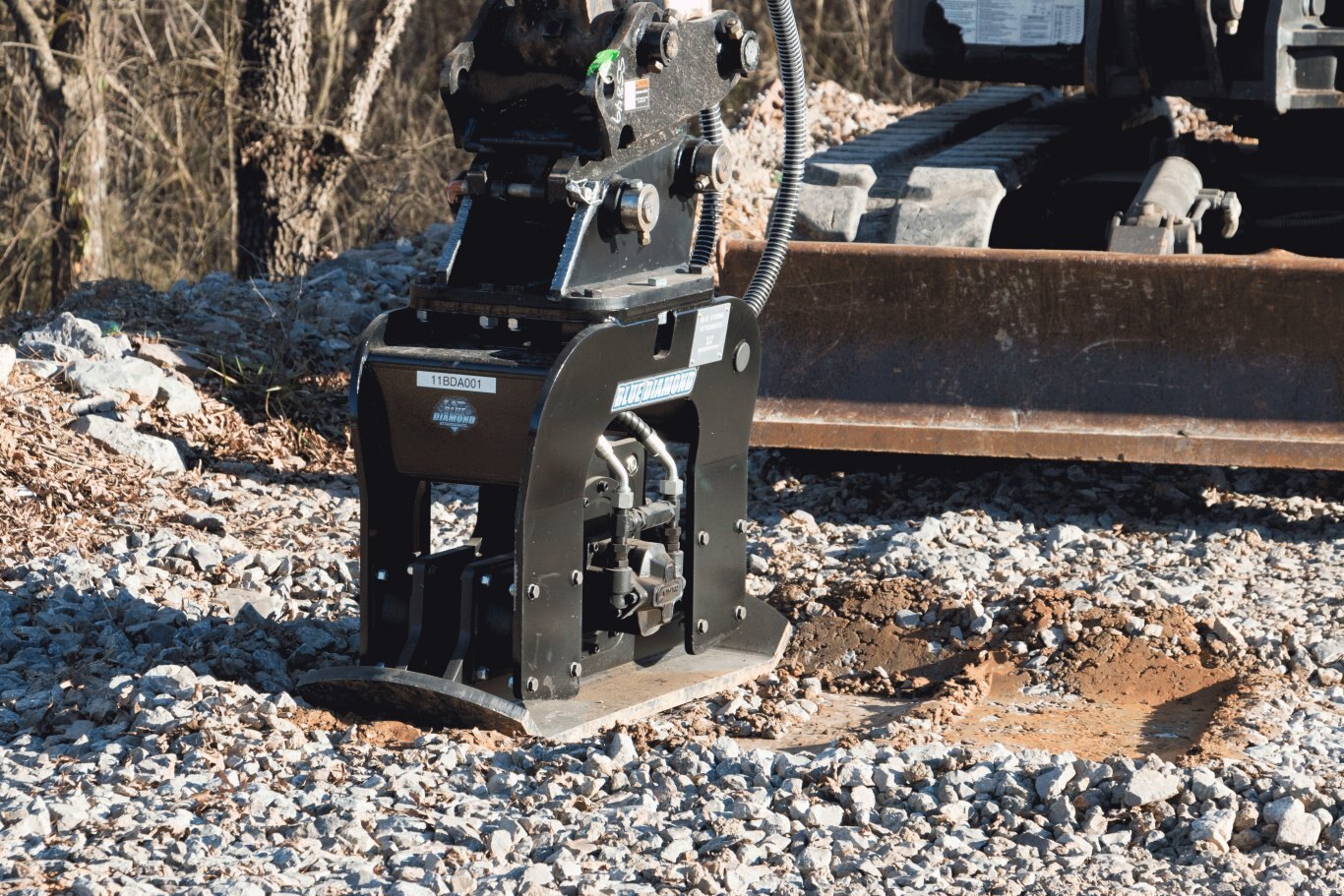

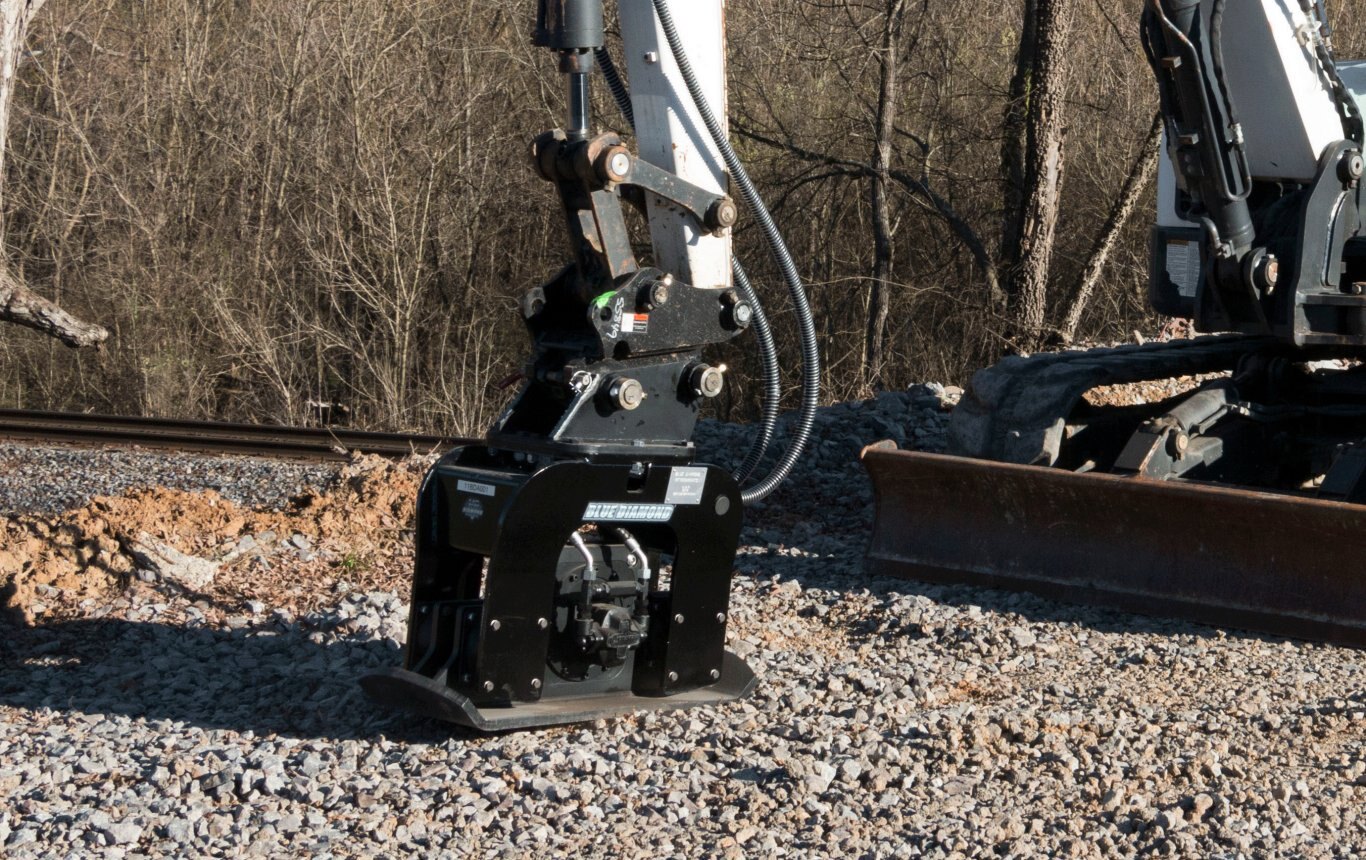

Blue Diamond® Plate Compactor attachments for excavators are essential tools for soil compaction in trenching, slope work, and foundation prep. These hydraulic attachments use vibratory force and the weight of the excavator to efficiently compact soil, gravel, or asphalt. Industry leading technology protects the machine from excessive vibrations yet offers excellent compaction ability. They're ideal for contractors working on utility installations, retaining walls, or foundation prep.

Specifications

Model

PLATE COMPACTOR

Category Name

Attachments

Year

2026

Sale Type

New

Manufacturer

Blue Diamond

features & benefits

Three compactor models for carrier weights from 5,000 - 42,000 lbs.

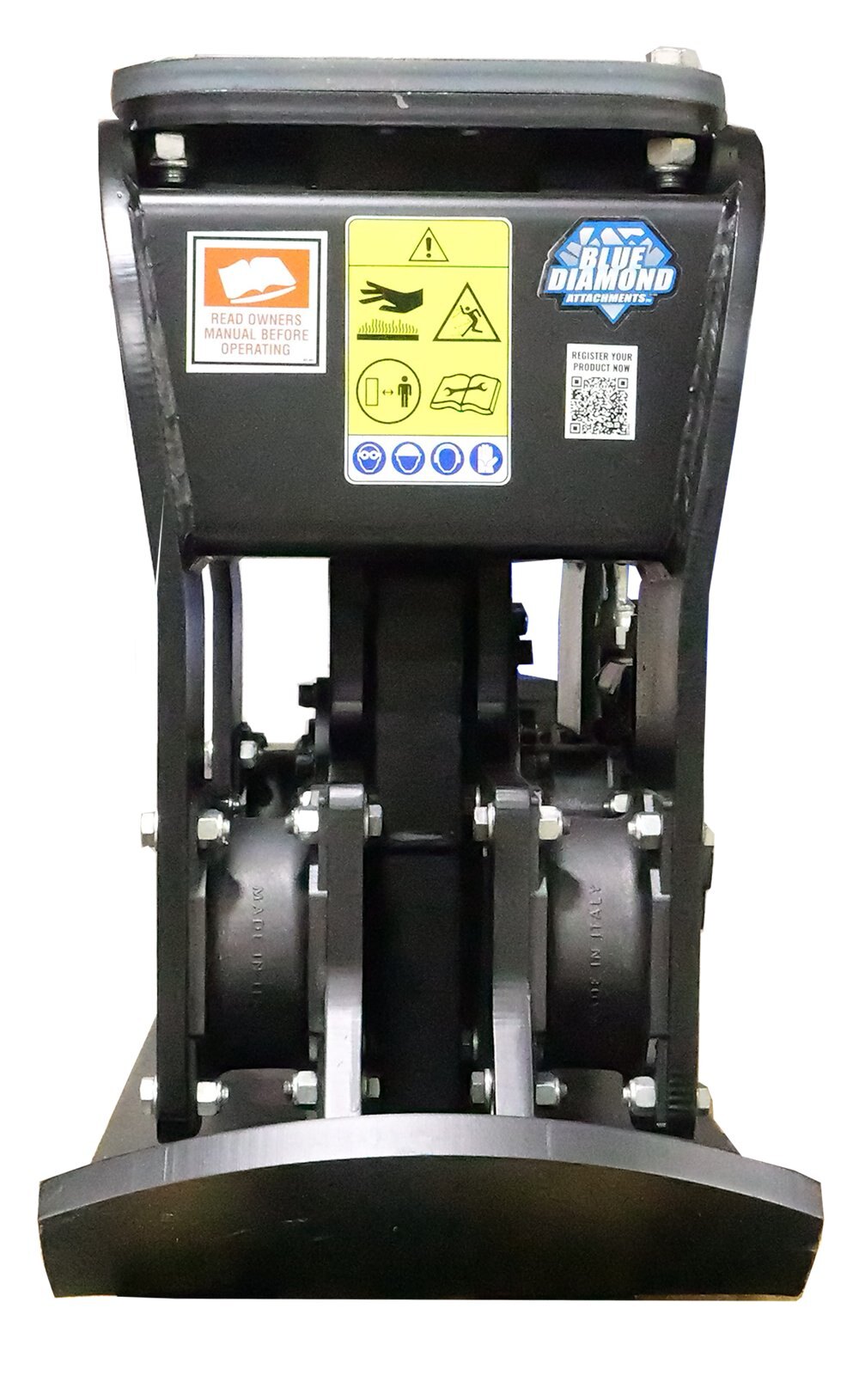

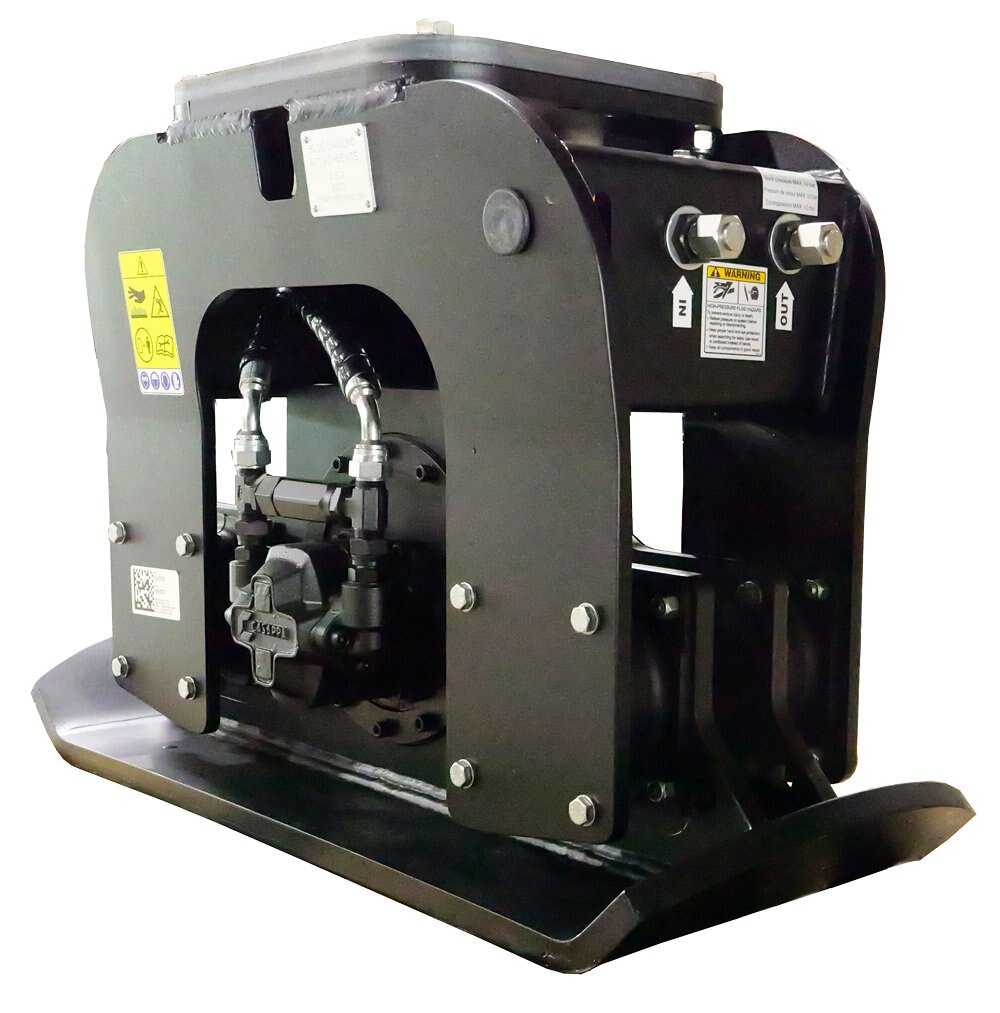

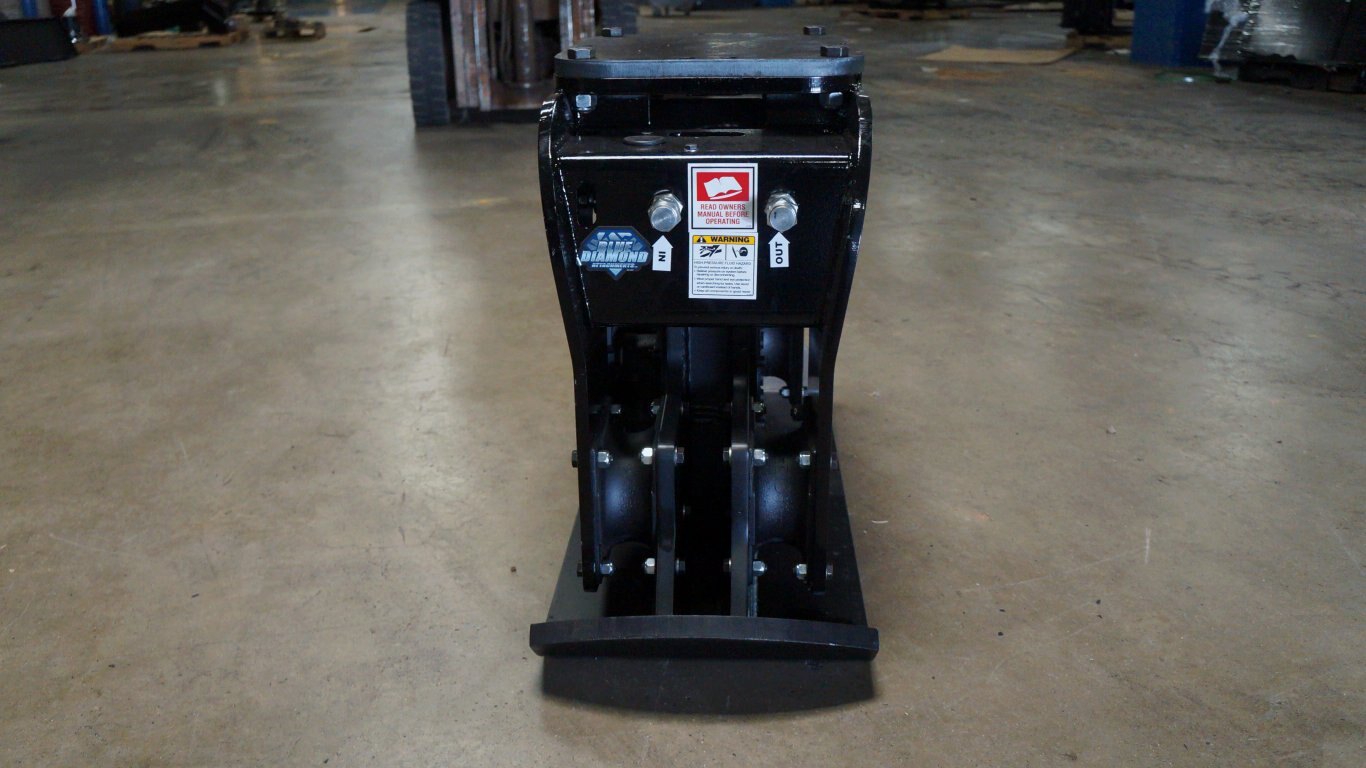

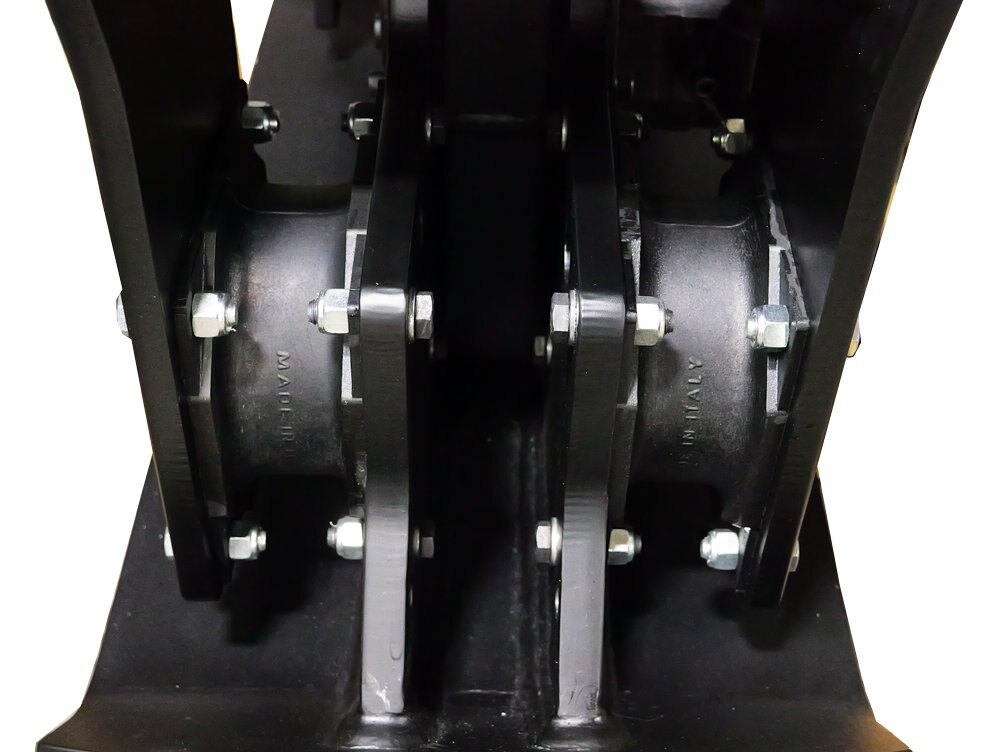

Compact steel frame with large rubber shock absorbers provides strength and low vibration

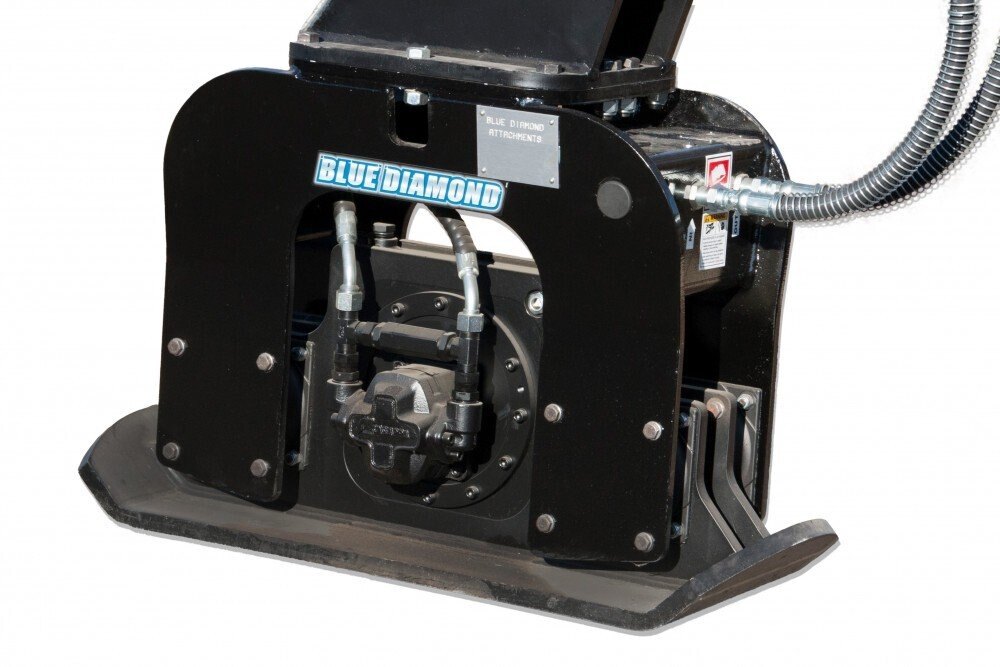

Engineered with heavy compaction plates sized to match standard trenching bucket widths

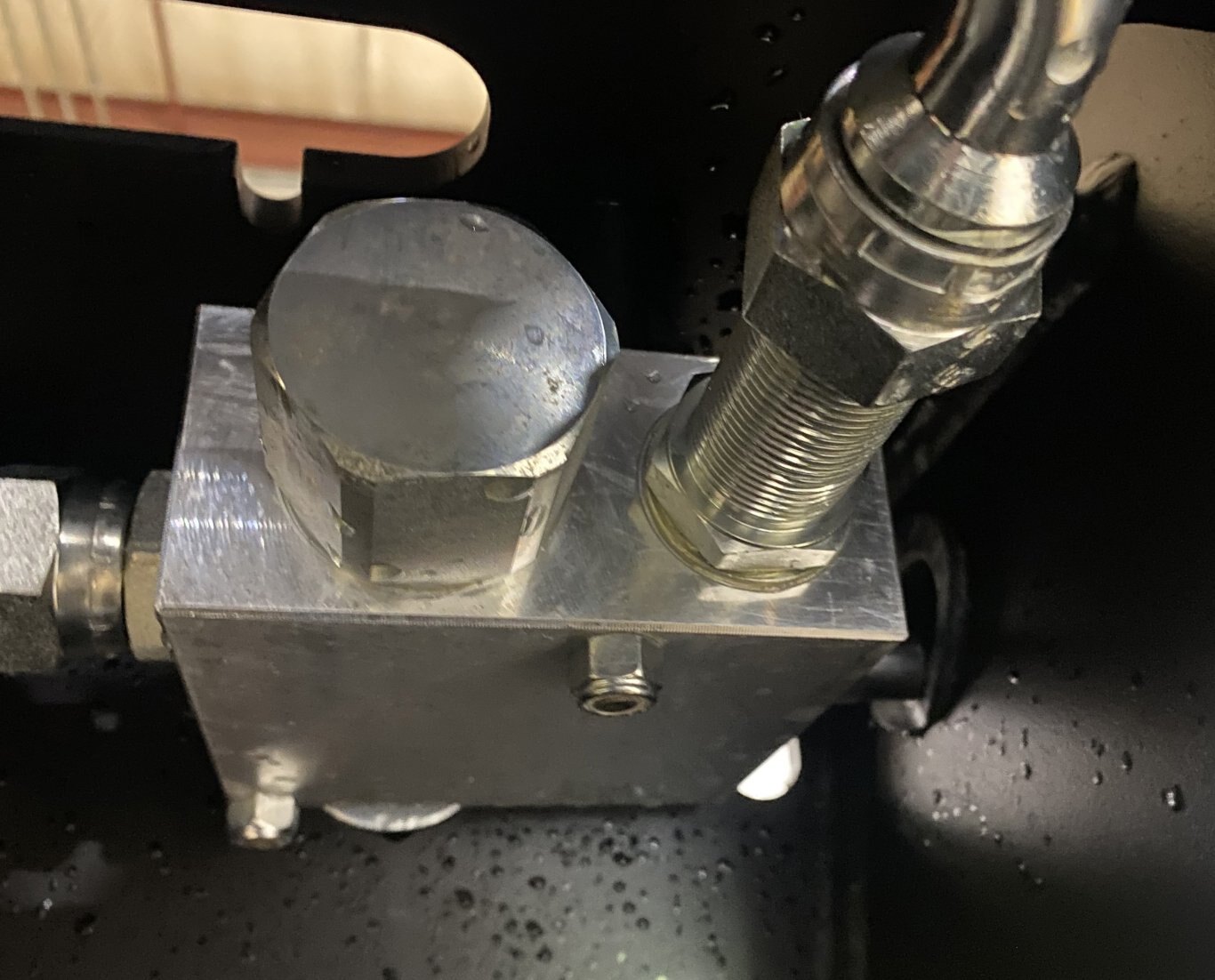

Internal flow regulation and anti-cavitation valves protect the motor and seals
Low maintenance sealed exciter unit with oil bath bearing design

technical data

Part Number	Model	Excavator Weight	Plate Size	Flow Rate (GPM)	Recommended Operating Pressure (PSI)	Power (LBS/KN)	Weight
151005	C310	5,000-12,000 lbs.	12" W x 24" L	10-15 (11)	2,610	4,046/18	552
151010	C410	12,000-22,000 lbs.	16" W x 32" L	15-23 (19)	2,610	7,391/32	880
151015	C610	24,000-42,000 lbs.	24" W x 48" L	29-44 (34)	2,610	14,612/65	2,000
Couplers and hoses sold separately.	Requires blank back mount, sold separately.
