Blue Diamond EXCAVATOR SCREENING BUCKET

Name: Blue Diamond EXCAVATOR SCREENING BUCKET
Brand: Blue Diamond
Availability: OutOfStock

Call for Price

Get a Quote Get Financed Value a Trade Contact Us Book a Demo Get Directions Get Directions Print

Overview

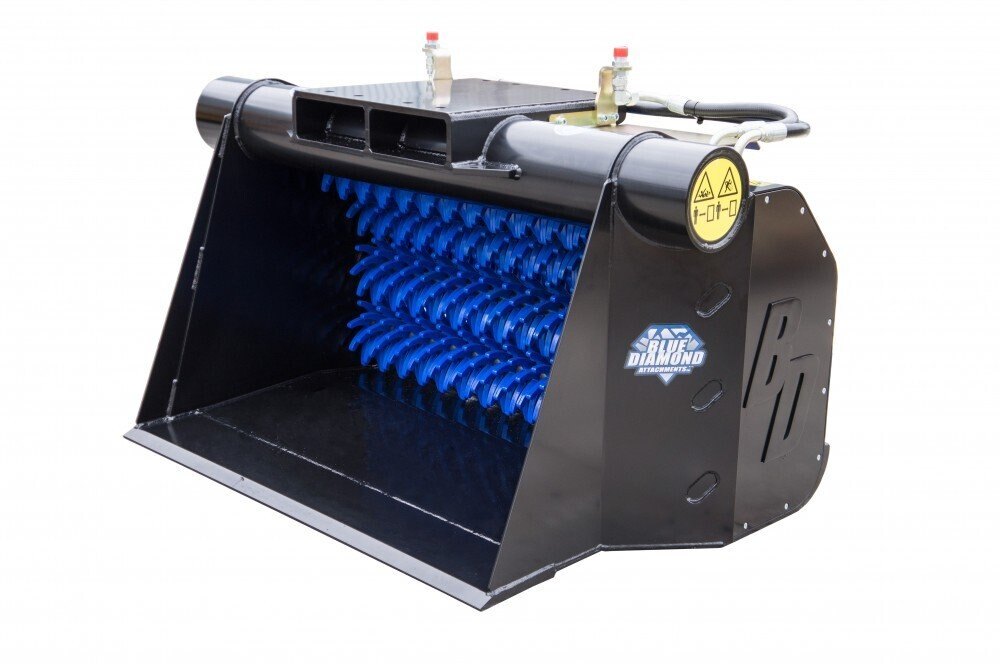

The Blue Diamond® Screening Bucket is used for the screening, aerating, separating and mixing of soils, aggregates, wood chip and compost. The efficient screening process is created by the star rotors agitating the material, causing the fines to flow through the rotating stars leaving the oversized material in the bucket.

Mount sold separately. Hoses and couplers are not included.

Specifications

Model

EXCAVATOR SCREENING BUCKET

Category Name

Attachments

Year

2026

Sale Type

New

Manufacturer

Blue Diamond

features & benefits

1” or smaller material will flow through

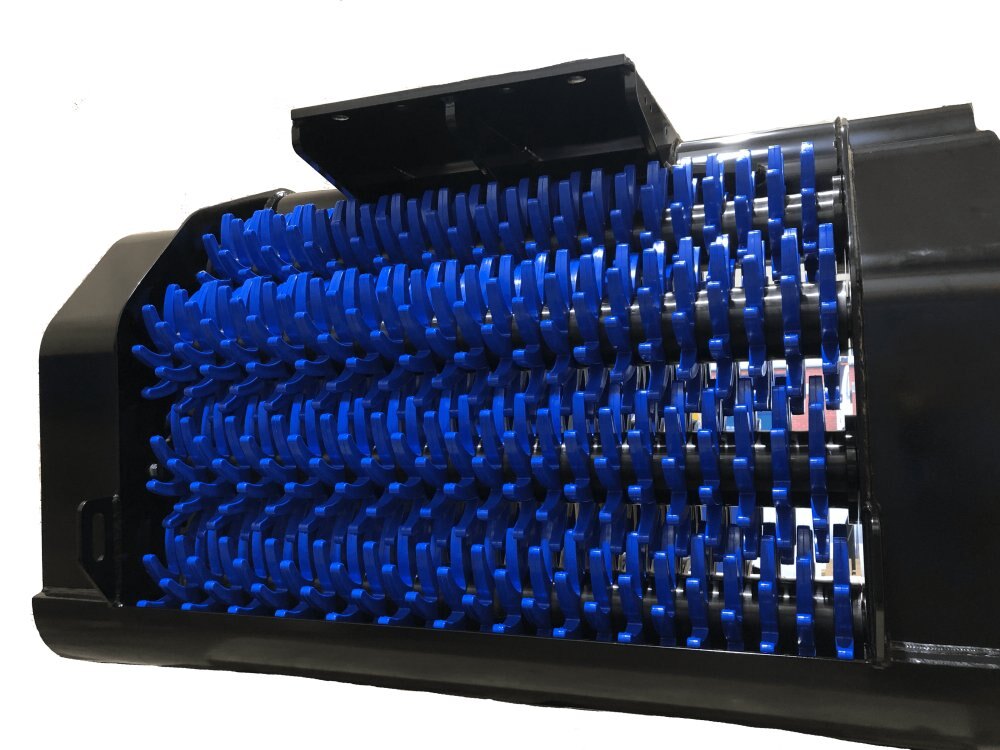

Horizontal shafts, fitted with poly stars that rotate in the same upwards direction
Hardened steel cutting edge
2-position mount plate
Mounts available to fit most machines
1-year warranty

technical data

Part Number	Model	Host Machine Size	Max Flow GPM	Max PSI	Weight	Capacity CU FT
145110	33" Model 3-33E	6,600-11,000	14	2,900	557 lbs	6.00
145115	40" Model 4-40HE	11,000-22,000	23	2,900	1,104 lbs	12.36
145117	47" Model 4-47HE	22,000-30,000	23	2,900	1,179 lbs	14.85
145120	60" Model 4-60HE	28,600-35,000	23	2,900	1,585 lbs	18.60
145135	60" Model 6-60 HDX	35,000-53,000	42	2,900	1,635 lbs	42.38
