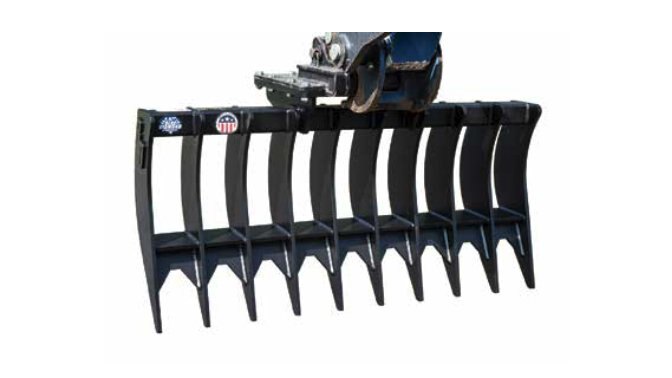

Blue Diamond EXCAVATOR RAKE - Heavy duty

Name: Blue Diamond EXCAVATOR RAKE - Heavy duty
Brand: Blue Diamond
Availability: OutOfStock

Call for Price

Get a Quote Get Financed Value a Trade Contact Us Book a Demo Get Directions Get Directions Print

Overview

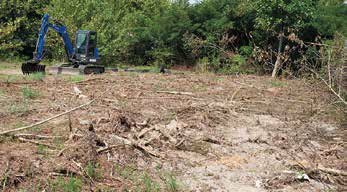

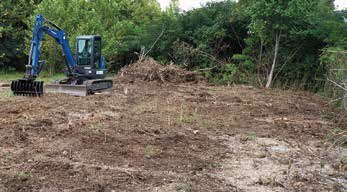

The Blue Diamond® Heavy Duty Excavator Rake is an essential tool for removing roots and other debris when you need a clean finish. The durable 1/2″ thick tines rip and remove underlying roots while allowing loose soil to flow through. Great for removing rocks, light brush, roots, trash, and any other unwanted material.

Specifications

Model

EXCAVATOR RAKE - Heavy duty

Category Name

Attachments

Year

2026

Sale Type

New

Manufacturer

Blue Diamond

features & benefits

1/2″ Thick tines
6 1/2" tine centers
Gusseted tine tips
Interchangeable mounting system

technical data

Part Number	Model	Overall Dimensions	Weight
170405	24” Excavator Rake (6K-10K Machines)	24″ W x 18″ D x 25″ H	210 lbs
170415	36” Excavator Rake (6K-10K Machines)	36″ W x 18″ D x 25″ H	260 lbs
170425	48” Excavator Rake (6K-10K Machines)	48″ W x 18″ D x 25″ H	300 lbs
170475	48” Excavator Rake (10K-15K Machines)	48″ W x 18″ D x 31″ H	400 lbs
170435	60” Excavator Rake (6K-10K Machines)	60″ W x 18″ D x 25″ H	340 lbs
170485	60” Excavator Rake (10K-15K Machines)	60″ W x 18″ D x 31″ H	470 lbs
