Blue Diamond EXCAVATOR MOUNT HYDRAULIC BREAKER

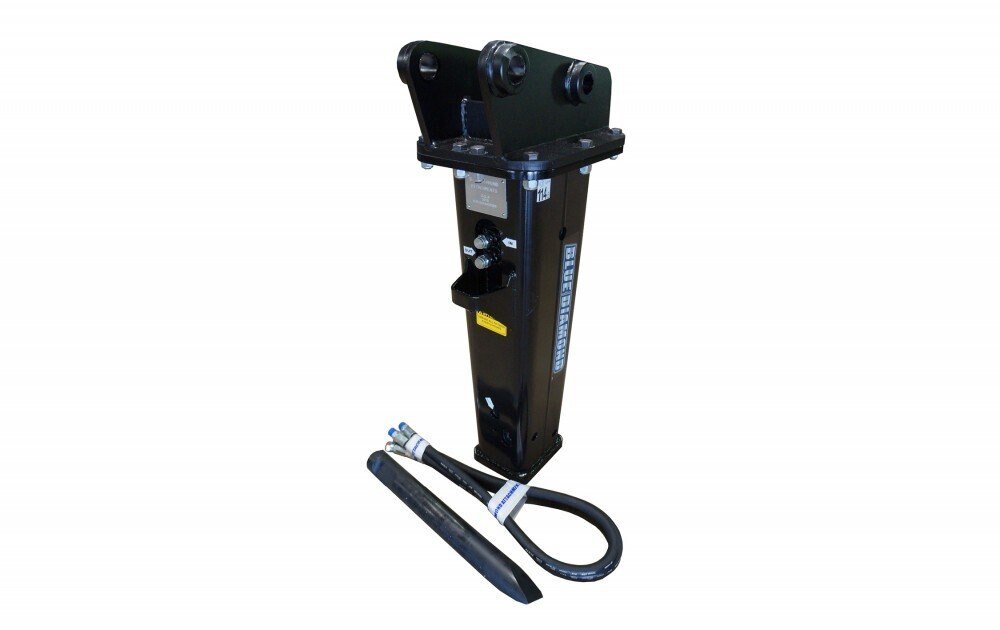

Name: Blue Diamond EXCAVATOR MOUNT HYDRAULIC BREAKER
Brand: Blue Diamond
Availability: OutOfStock

Videos

Call for Price

Get a Quote Get Financed Value a Trade Contact Us Book a Demo Get Directions Get Directions Print

Overview

Absolute superiority is the only way to describe this breaker!

Blue Diamond® hydraulic breakers for excavators offer technology, simplicity, reliability, ease of setup, and service support. Unmatched in the industry. Solid mono-block design. Anti-blank firing. A unique poly case shell vibration dampening system. Interchangeable mounting brackets. There’s simply nothing as productive, effective and efficient as a Blue Diamond Breaker. No more downtime, get started on your demolition, construction, and quarry jobs now.

Specifications

Model

EXCAVATOR MOUNT HYDRAULIC BREAKER

Category Name

Attachments

Year

2026

Sale Type

New

Manufacturer

Blue Diamond

features & benefits

3-year warranty
Mono-block design / no tie rods
Anti-blank firing system hydraulic brake
No re-gassing needed
Only 2 internal moving parts
2 speed control / variable stroke
Quiet operation
Self-regulating
Body bushings around piston

technical data

Part Number	Model	Working Pressure	Max Oil Flow	Frequency (BPM)	Operating Weight	Tool Diameter	Energy Class	Carrier Weight	(PSI) Back Pressure
335005-EX	HB50	1,750	7	1,200	132 LBS	1.5	100	1,500-2,650 LBS	290-360
335009-EX	HB95	1,750	11	1,200	220 LBS	1.8	200	2,650-4,000 LBS	290-360
335016-EX	HB165	1,750	13	1,200	370 LBS	2.2	400	4,000-6,600 LBS	290-360
335021-EX	HB210	1,750	16	1,100	463 LBS	2.5	500	6,100-9,900 LBS	290-360
335030-EX	HB300	1,750	21.2	1,100	661 LBS	2.9	700	8,800-15,500 LBS	290-360
335040-EX	HB400	1,750	29.2	900	882 LBS	3.1	1,000	13,500-20,900 LBS	363
335053-EX	HB530	1,750	32	900	1,169 LBS	3.3	1,200	17,650-25,350 LBS	363
335095-EX	HB950	1,950	34	900	2,161 LBS	4	2,000	22,000-33,000 LBS	363
335098-EX	HB1400	2,050	37	600-800	2,976 LBS	4.6	3,000	30,000-50,000 LBS	145
335100-EX	HB1800	2,050	53	490-630	3,968 LBS	5.4	4,000	48,000-70,000 LBS	145
335105-EX	HB2500	2,200	61	460-630	5,291 LBS	6	5,000	60,000-80,000 LBS	145
335110-EX	HB3000	2,350	75	380-500	6,614 LBS	6.5	7,000	70,000-110,000 LBS	145
