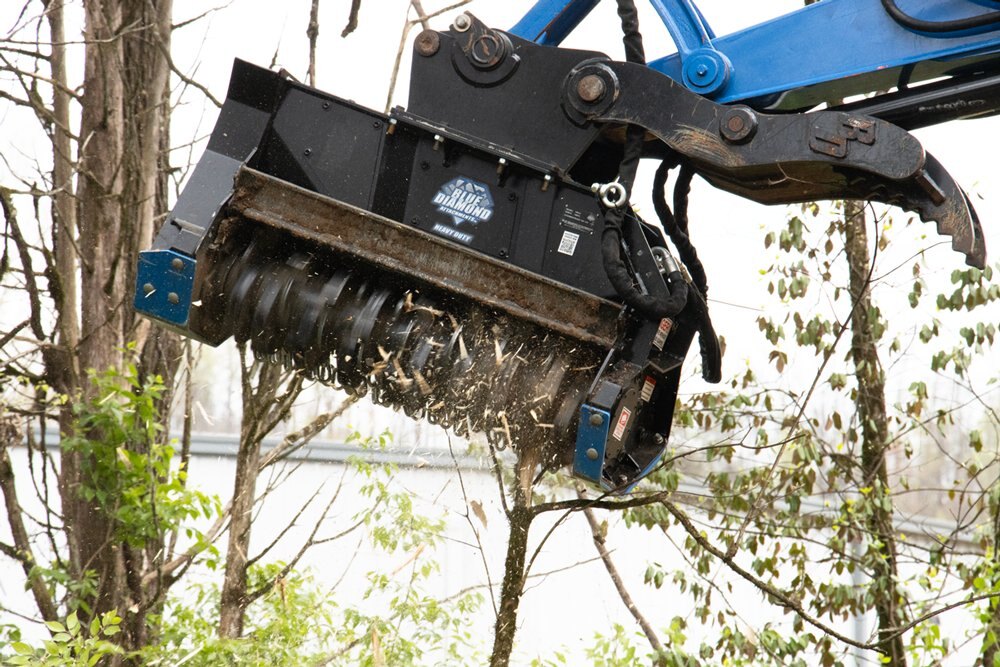

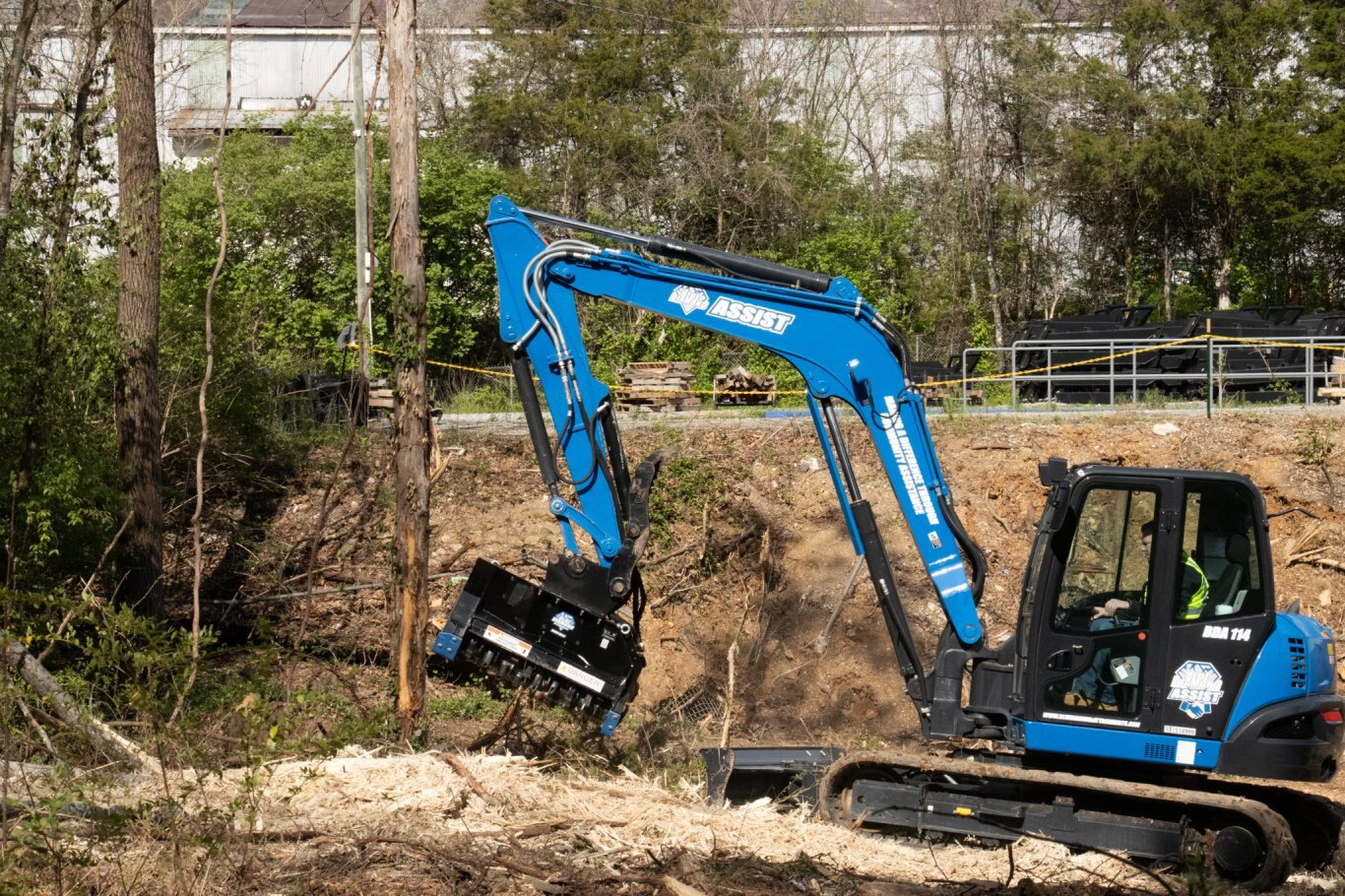

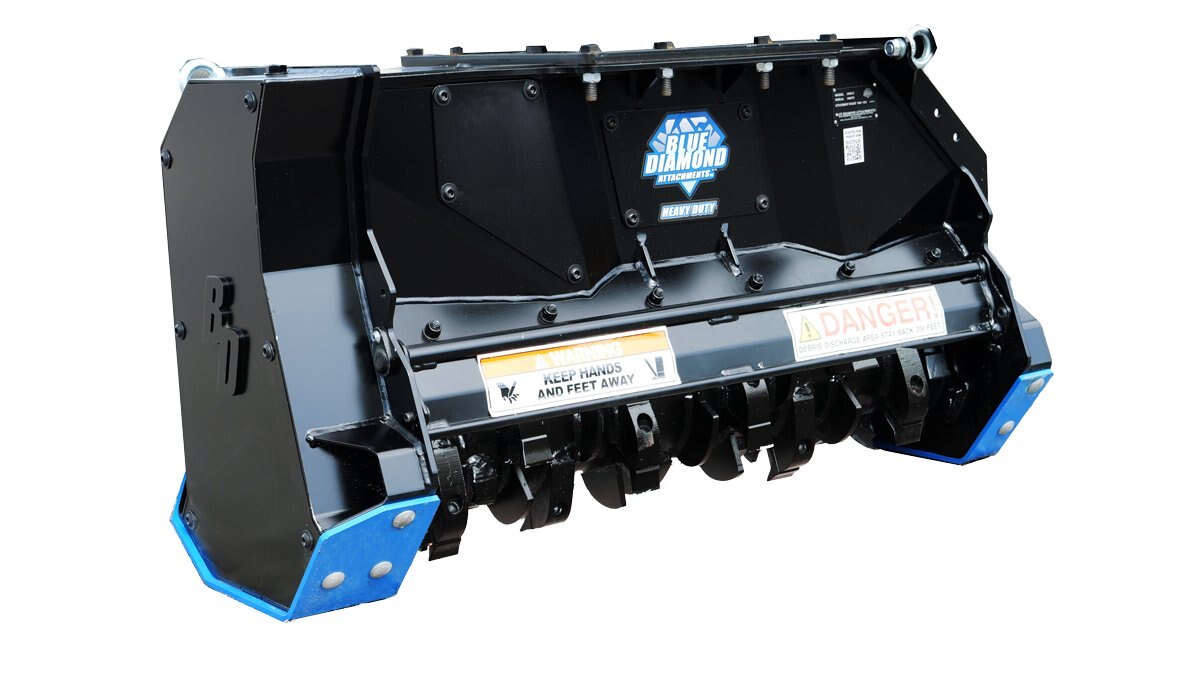

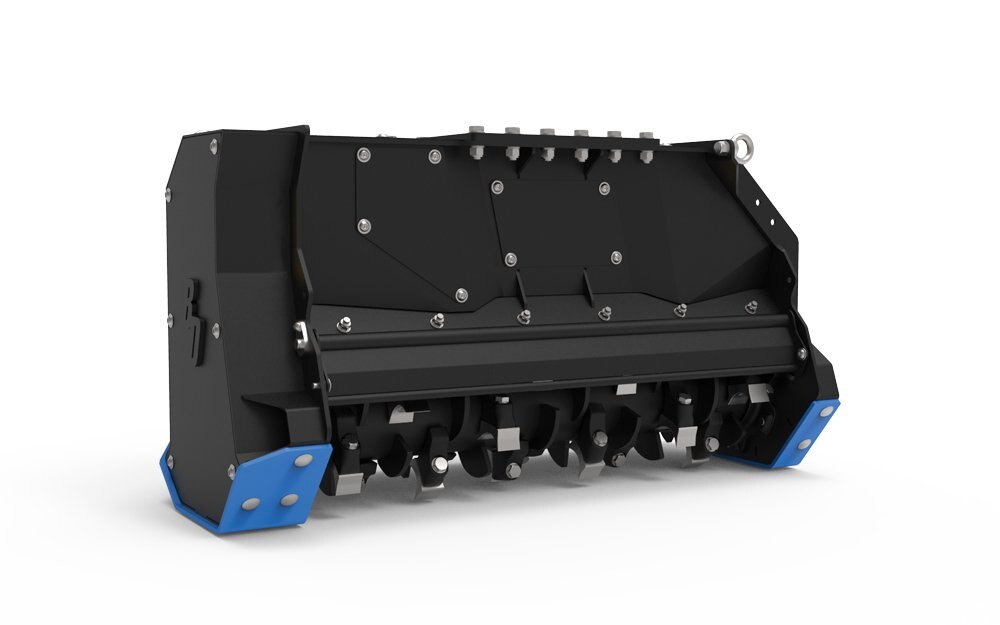

The Blue Diamond® Heavy Duty Excavator Drum Mulcher is one of the fastest ways to tear down a forest. Turn trees to wood chips in minutes using our durable drum mulcher built with high strength steel. Recommended for 9,000 to 24,000 lb mini and mid size excavators. No job is too big or small with cutting widths from 30 to 50 inches. All our drum rotors have fixed teeth set in helical position with “p-cut” depth limiters. Choose the reversible carbide teeth option for maximum tooth lifespan when working in rocky areas! And with centralized grease points and hydraulic quick couplers, you can trust that routine maintenance is straightforward and easy. The Heavy Duty model comes with a double row of chains to keep material flowing and shield the operator from thrown debris. |
|
| Part Number | Model | Required Flow | Motor Size | Weight |
|---|---|---|---|---|
| 190510 | 30" HD Excavator Drum Mulcher, fits 9K-13K machines | 11-24 GPM | 26cc - 45cc | 815 lbs |
| 190515 | 40" HD Excavator Drum Mulcher, fits 13K-24K machines | 15-35 GPM | 26cc - 45cc | 960 lbs |
| 190520 | 50" HD Excavator Drum Mulcher, fits 18K-24K machines | 15-35 GPM | 26cc - 45cc | 1,080 lbs |
| 190511 | HD Excavator Drum Mulcher Brush Rake option | – | – | 375 lbs |
| 290663-KIT | HD Excavator Drum Mulcher Hose Protection Cover kit option | – | – | 17 lbs |
| Requires case drain |
| Name | Link |
| Brochure | Download |
