Blue Diamond EXCAVATOR DRUM MULCHER - SDX

Videos
Call for Price
Overview

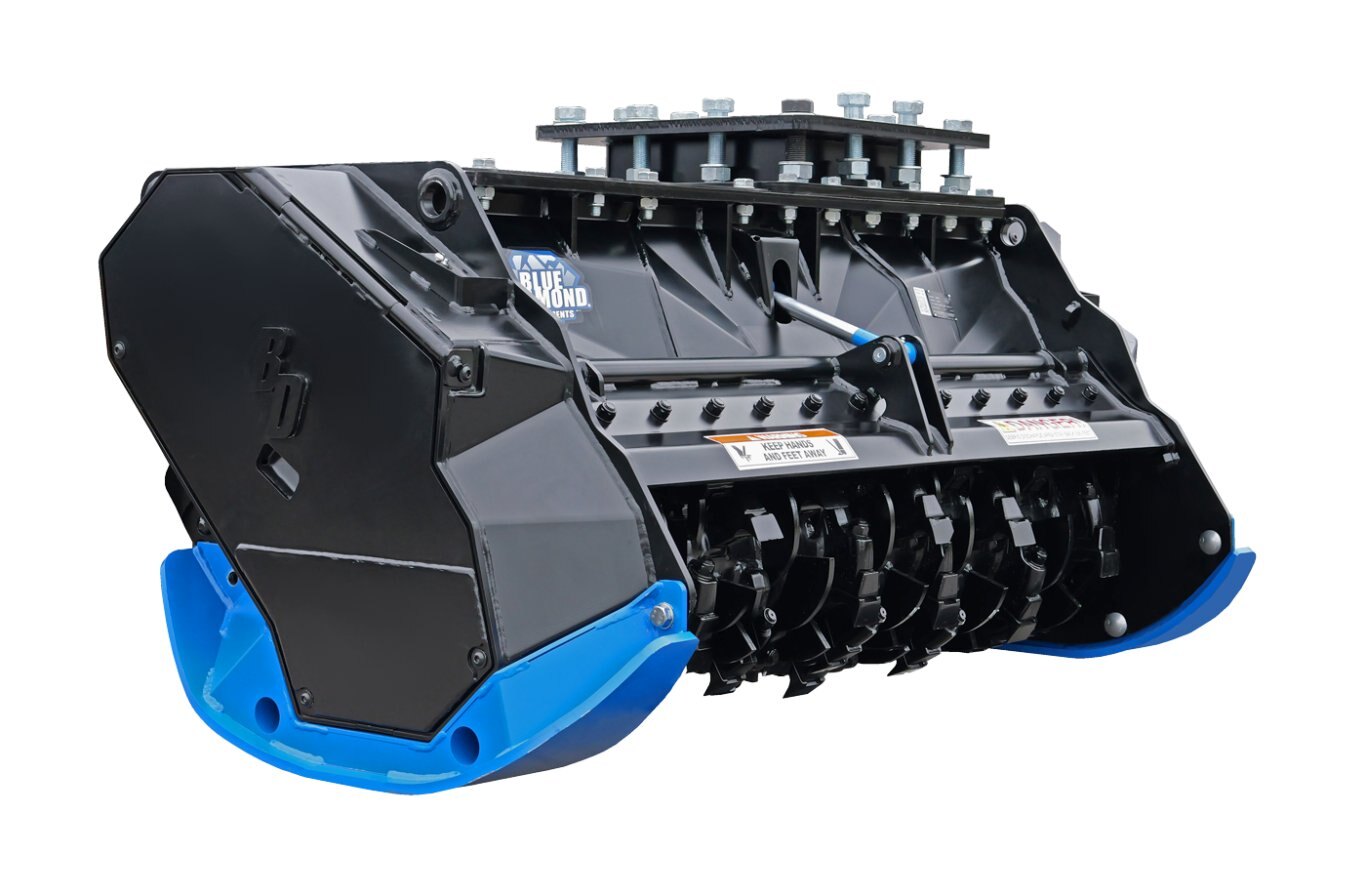

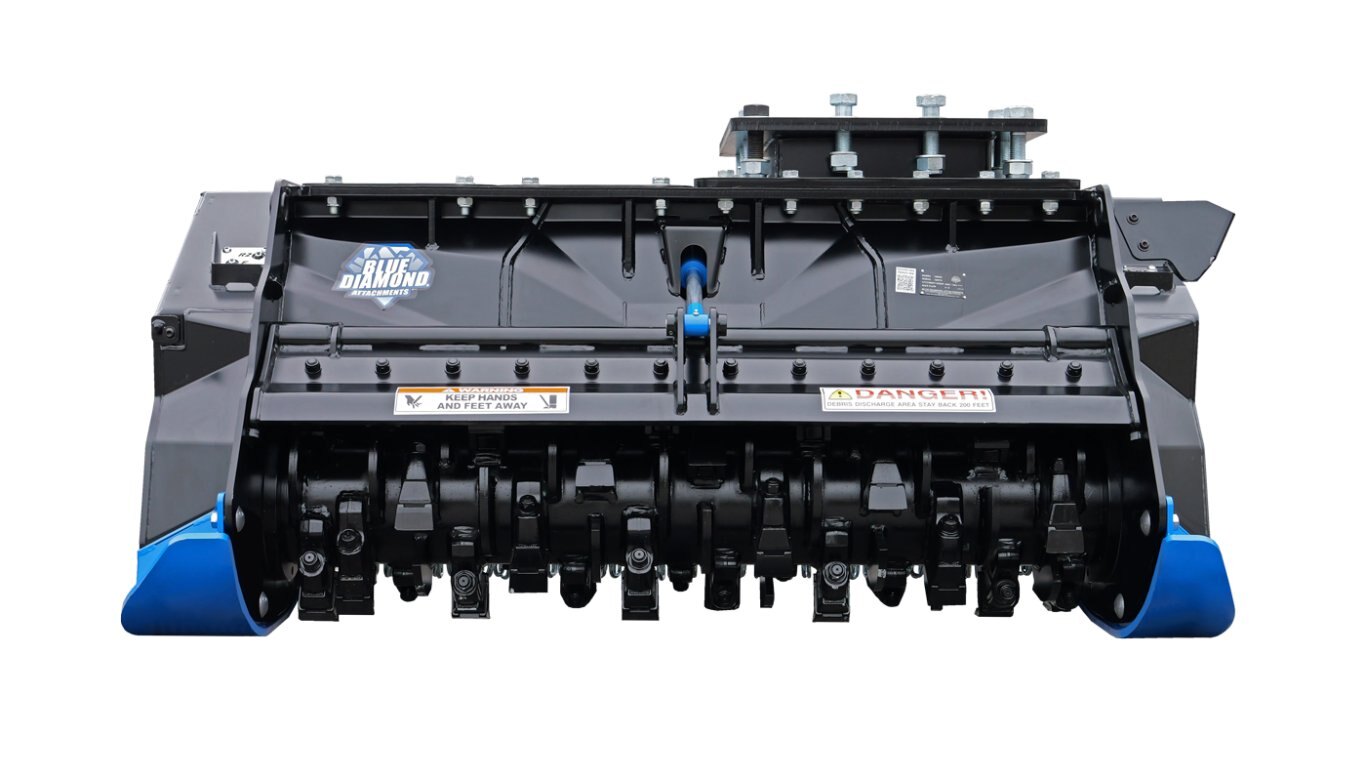

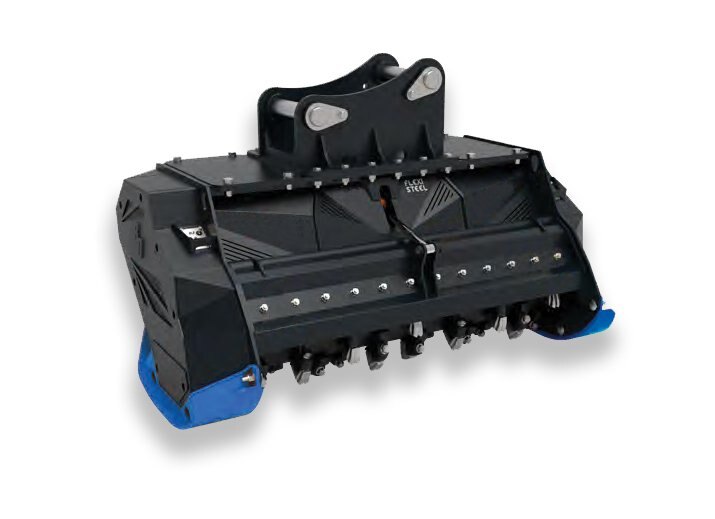

The Blue Diamond® SDX Excavator Drum Mulcher is the one of the quickest ways to turn trees into wood chips in a matter of minutes. Our most durable drum mulcher is built with high strength steel and recommended for 49K-70K excavators.

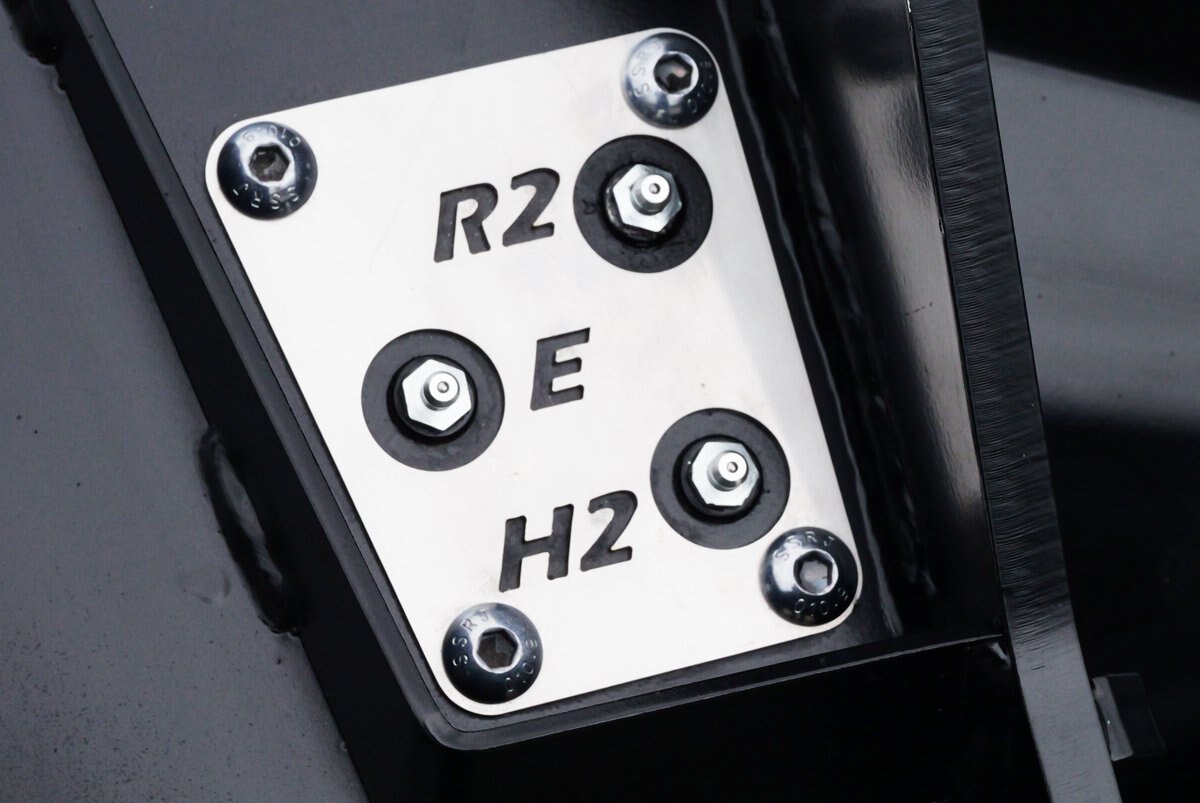

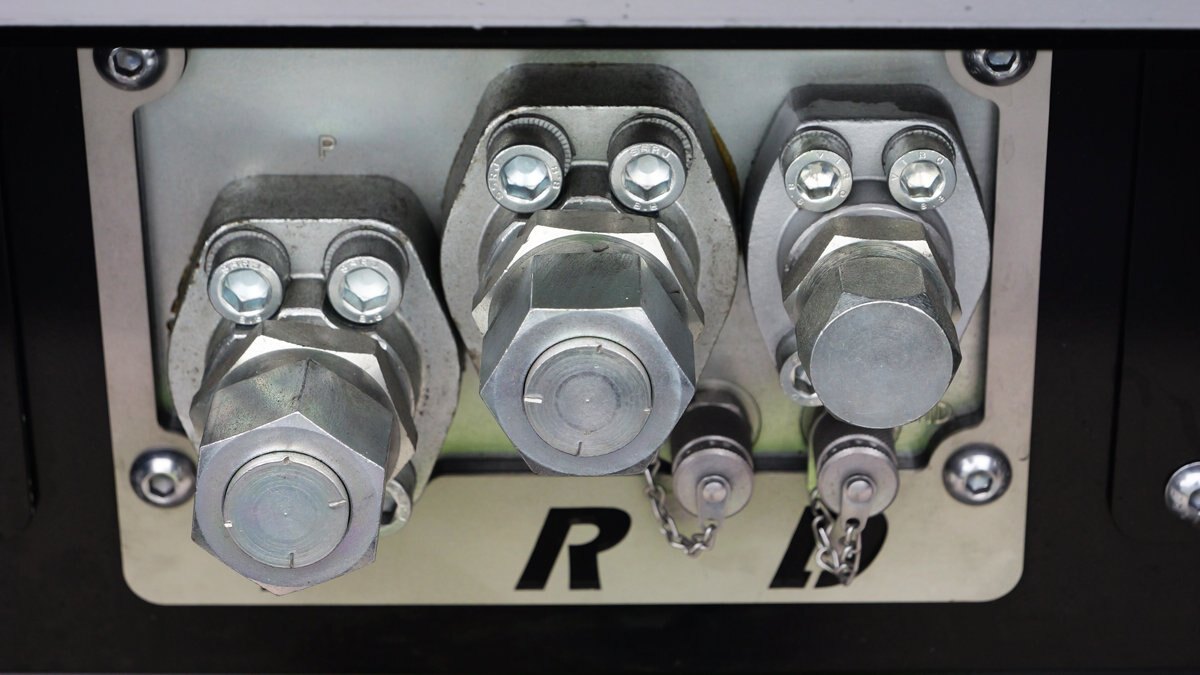

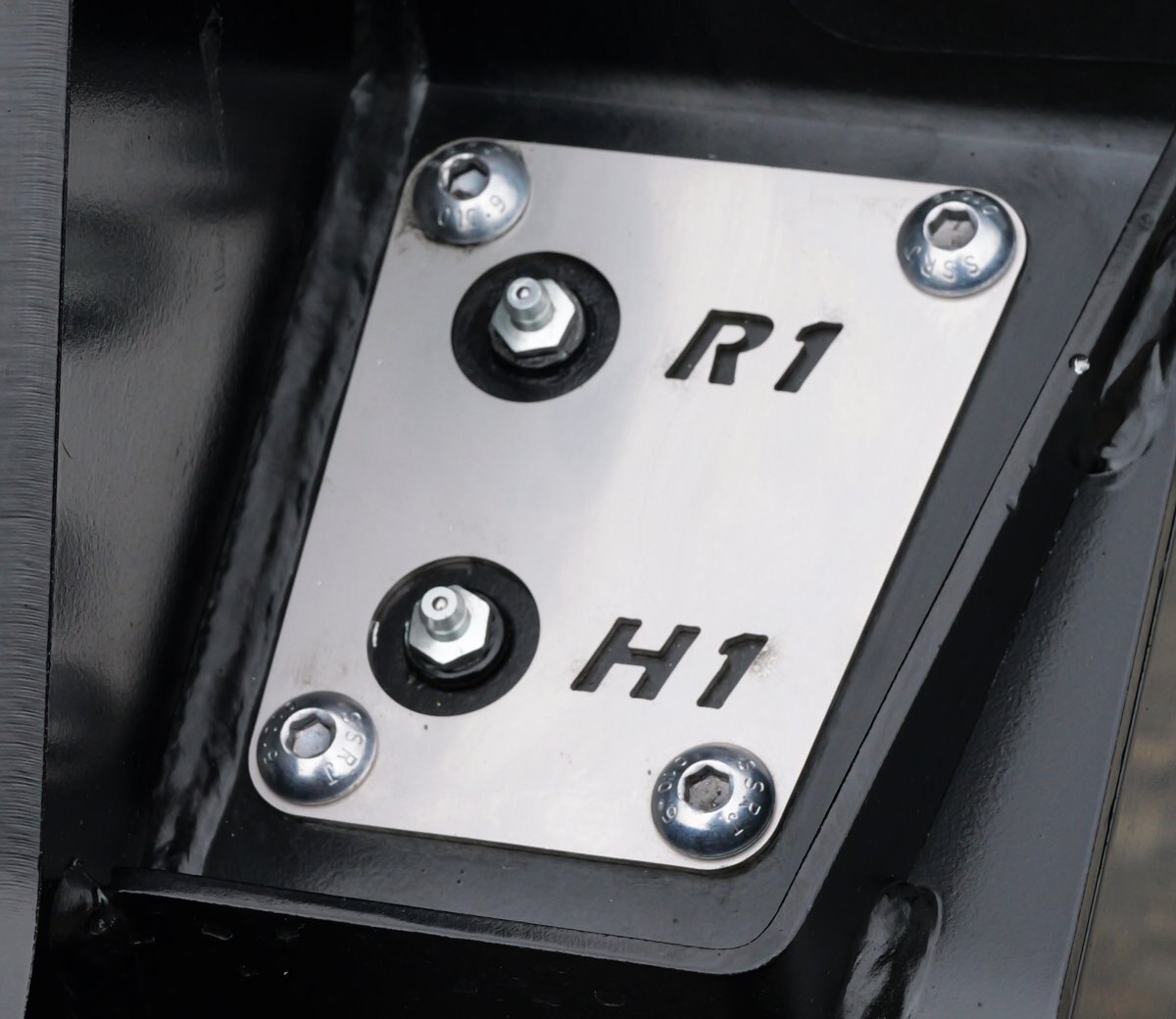

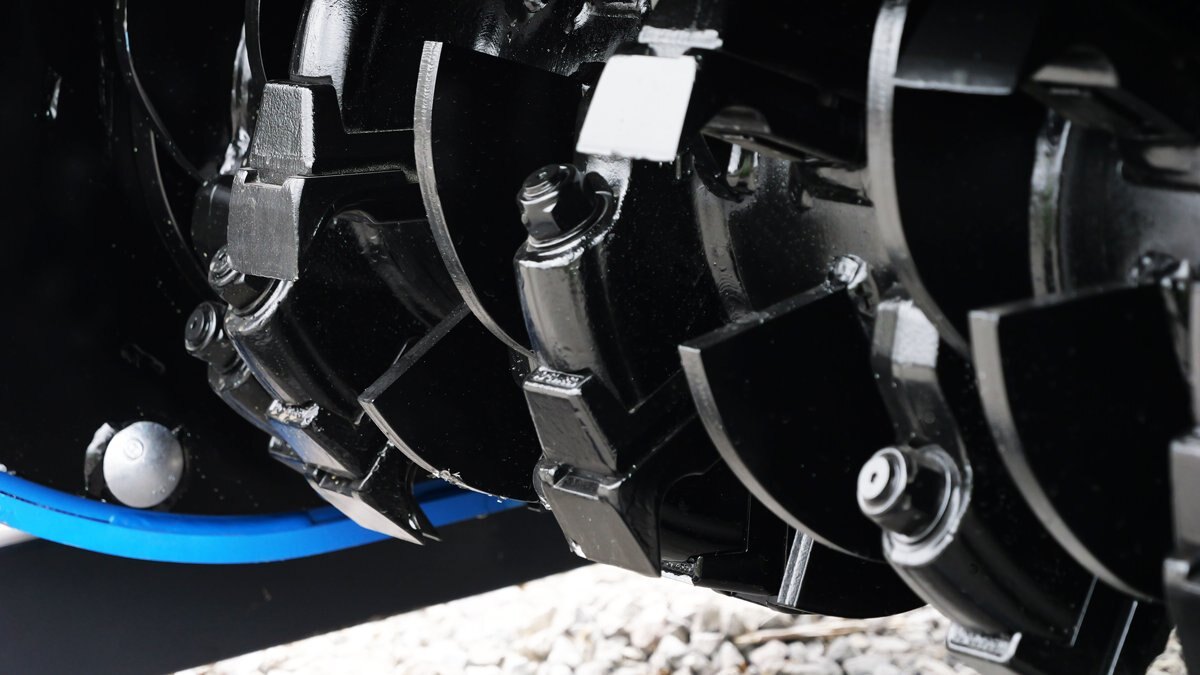

With a 60" working width and a cutting diameter of 12 inches, no job is too tough! Our drum rotors have fixed teeth set in a helical position with “p-cut” depth limiters. The optional reversible carbide teeth are a must when working in rocky areas because it offers a maximum tooth lifespan. Routine maintenance is quick and easy with the centralized grease points and hydraulic quick couplers.

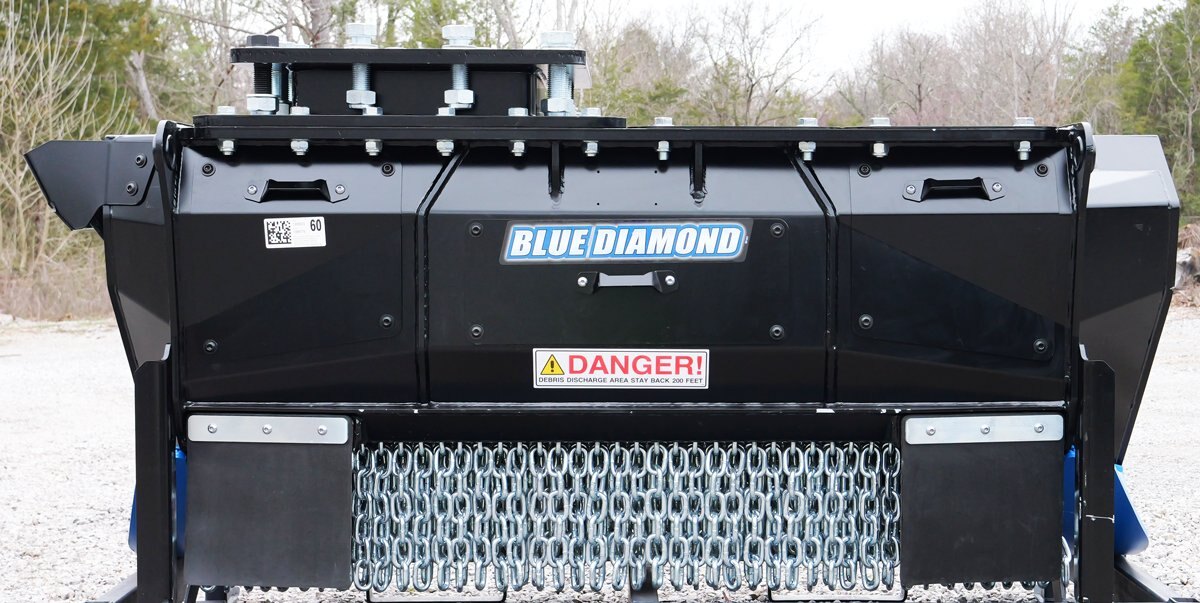

Two double rows of chains and rubber side shields on our SDX Drum Mulchers provide maximum protection of debris while also keeping the material flowing.

Specifications
Model
EXCAVATOR DRUM MULCHER - SDX
Category Name
Attachments
Year
2026
Sale Type
New
Manufacturer
Blue Diamond
features & benefits
  • 49,000 - 70,000 Excavator Size
  • Available in 60” cutting width
  • Variable Displacement (80 - 115cc Bosch Rexroth)
  • Recommended Flow is 45-58 GPM
  • 12" diameter cutting capacity
  • Required pressure 4,000-5,500 PSI
  • Chain curtain minimizes discharge

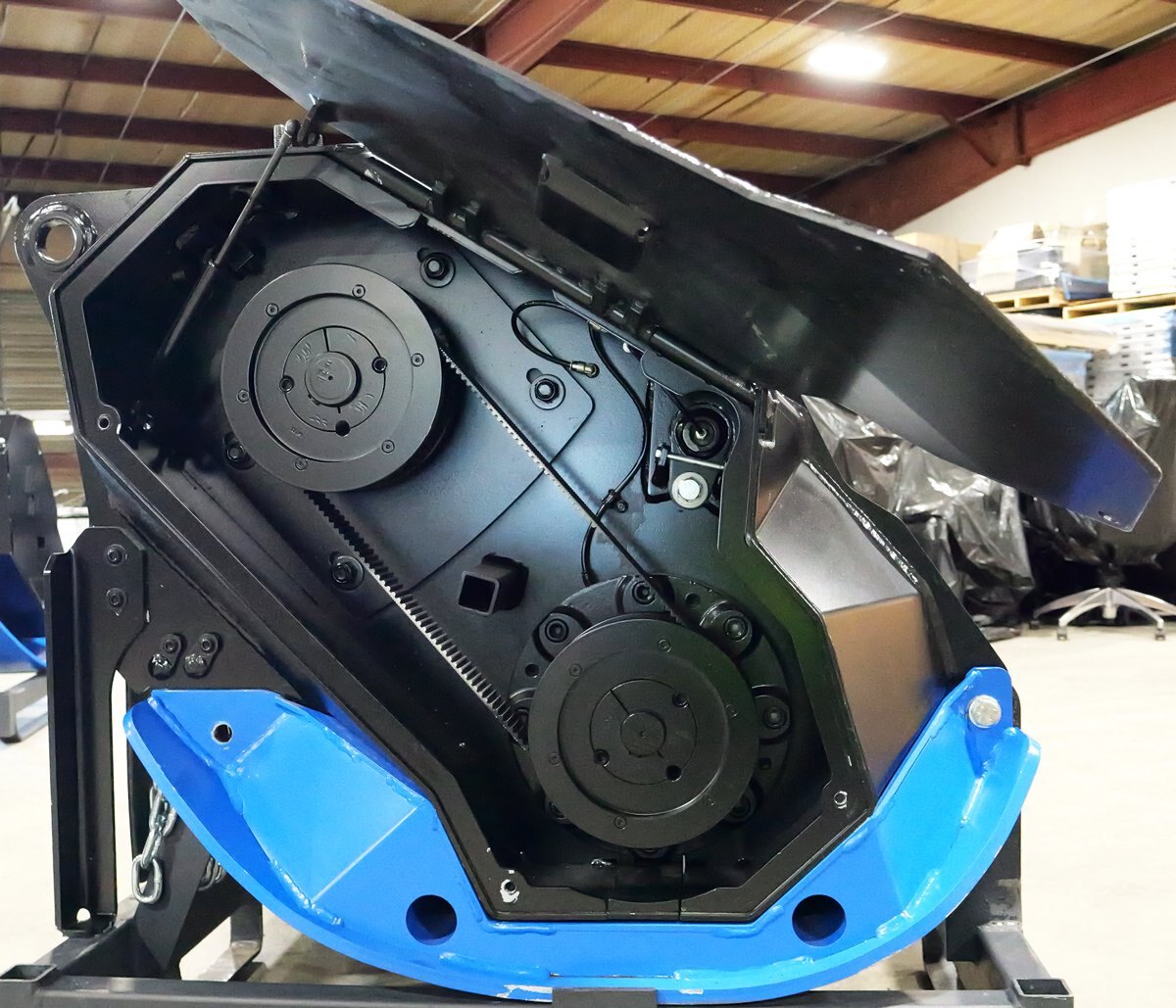

  • Hydraulic front cover
  • Requires case drain

technical data
Part Number Model Required Flow Motor Size Weight
190620 60" SDX Excavator Drum Mulcher, fits 49K-70K machines 45-58 GPM 80cc - 115cc 3,000 lbs
Requires case drain
literature
Name Link
Brochure Download
