Overview

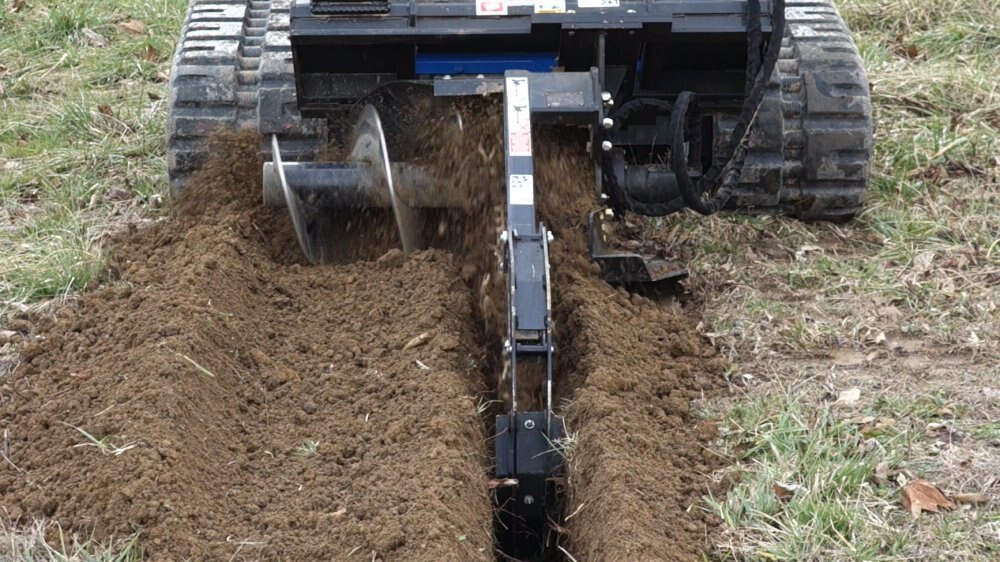

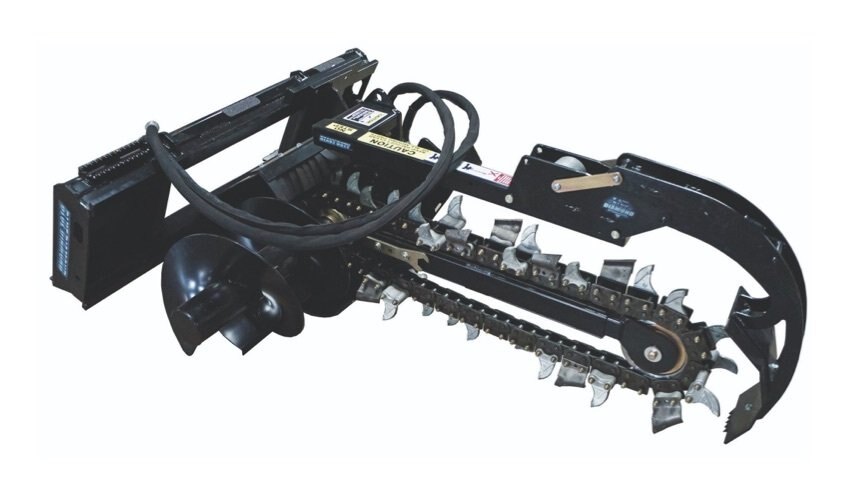

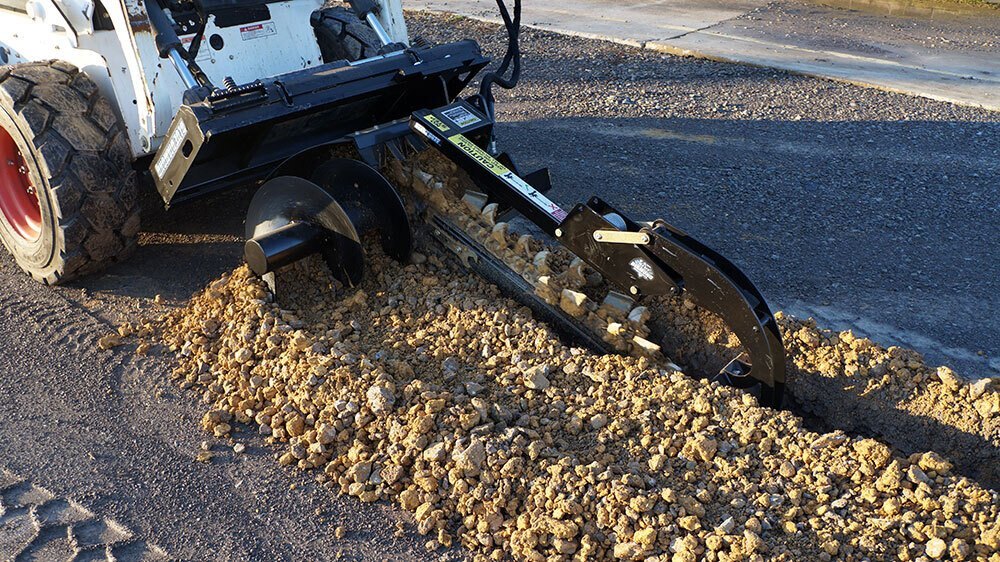

This extremely durable Blue Diamond® Skid Steer Trencher has many features that make it a more productive unit than our competitors. The extended auger carries the dirt further from the trench to prevent it from falling back in. The self-adjusting crumber brings any residual dirt back to the chain to be removed from the trench for an immaculate finish. Rental Recommended.

Specifications

Model

Trencher

Category Name

Attachments

Year

2026

Sale Type

New

Manufacturer

Blue Diamond

features & benefits

Extended auger
Adjusting foot to keep trench depth consistent
Depths: up to 36″, 48″, or 60"
Cut widths: 4″, 6″, 8″, 10″, and 12″
Chain types: dirt, rock, and combo
Spring-loaded, self-adjusting crumber for sweeping the trench clean
Manual adjusting side shift
Side auger to prevent dirt falling back into the trench
Eaton drive motor

technical data

Part Number	Model	Weight
131110	Trencher, 36” Depth, 4” Dirt Chain	390 lbs
131125	Trencher, 36” Depth, 4” Combo Chain	697 lbs
131140	Trencher, 36” Depth, 4” Rock Chain	751 lbs
131115	Trencher, 36” Depth, 6” Dirt Chain	575 lbs
131130	Trencher, 36” Depth, 6” Combo Chain	780 lbs
131145	Trencher, 36” Depth, 6” Rock Chain	751 lbs
131120	Trencher, 36” Depth, 8” Dirt Chain	585 lbs
131135	Trencher, 36” Depth, 8” Combo Chain	780 lbs
131150	Trencher, 36” Depth, 8” Rock Chain	751 lbs
131210	Trencher, 48” Depth, 6” Dirt Chain	1,120 lbs
131230	Trencher, 48”Depth, 6” Combo Chain	1,075 lbs
131250	Trencher, 48”Depth, 6” Rock Chain	1,075 lbs
131215	Trencher, 48” Depth, 8” Dirt Chain	1,120 lbs
131235	Trencher, 48”Depth, 8” Combo Chain	1,120 lbs
131255	Trencher, 48”Depth, 8” Rock Chain	1,120 lbs
131220	Trencher, 48”Depth, 10” Dirt Chain	1,120 lbs
131240	Trencher, 48”Depth, 10” Combo Chain	1,120 lbs
131260	Trencher, 48”Depth, 10” Rock Chain	1,120 lbs
131225	Trencher, 48”Depth, 12” Dirt Chain	1,120 lbs
131245	Trencher, 48”Depth, 12” Combo Chain	1,120 lbs
131265	Trencher, 48”Depth, 12” Rock Chain	1,120 lbs
131300-HF	Trencher, High Flow, 60” Depth, 6” Combo	1,020 lbs
131305-HF	Trencher, High Flow, 60” Depth, 8” Combo	1,040 lbs
131310-HF	Trencher, High Flow, 60” Depth, 12” Combo	1,080 lbs
131005	Trencher Mount Skid Steer 47 1/8" Wide	146 lbs
131006	Trencher Mount, Wide Frame Side Shift 73 3/4" Wide	200 lbs
