Blue Diamond LAND GRADER - HEAVY DUTY

Name: Blue Diamond LAND GRADER - HEAVY DUTY
Brand: Blue Diamond
Availability: OutOfStock

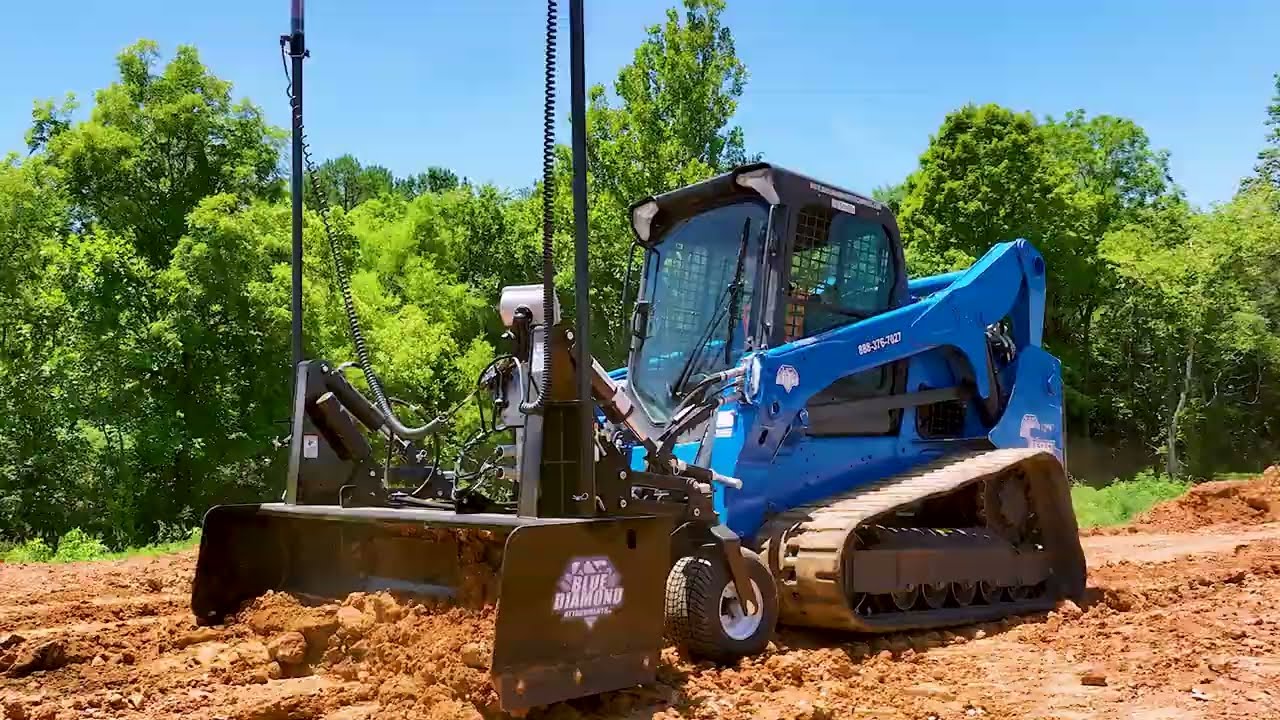

Videos

Call for Price

Get a Quote Get Financed Value a Trade Contact Us Book a Demo Get Directions Get Directions Print

Overview

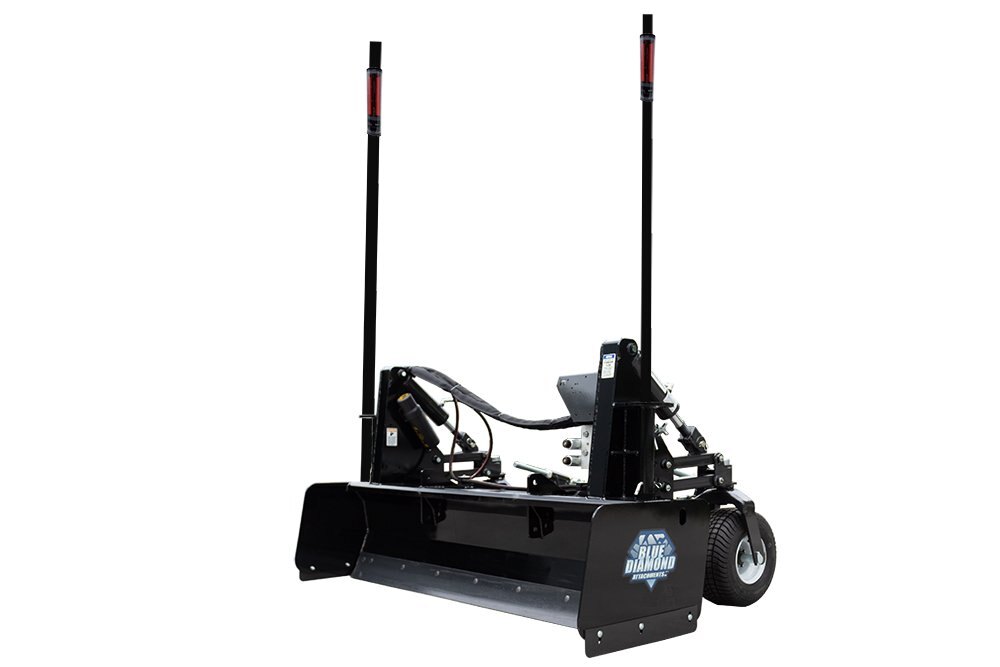

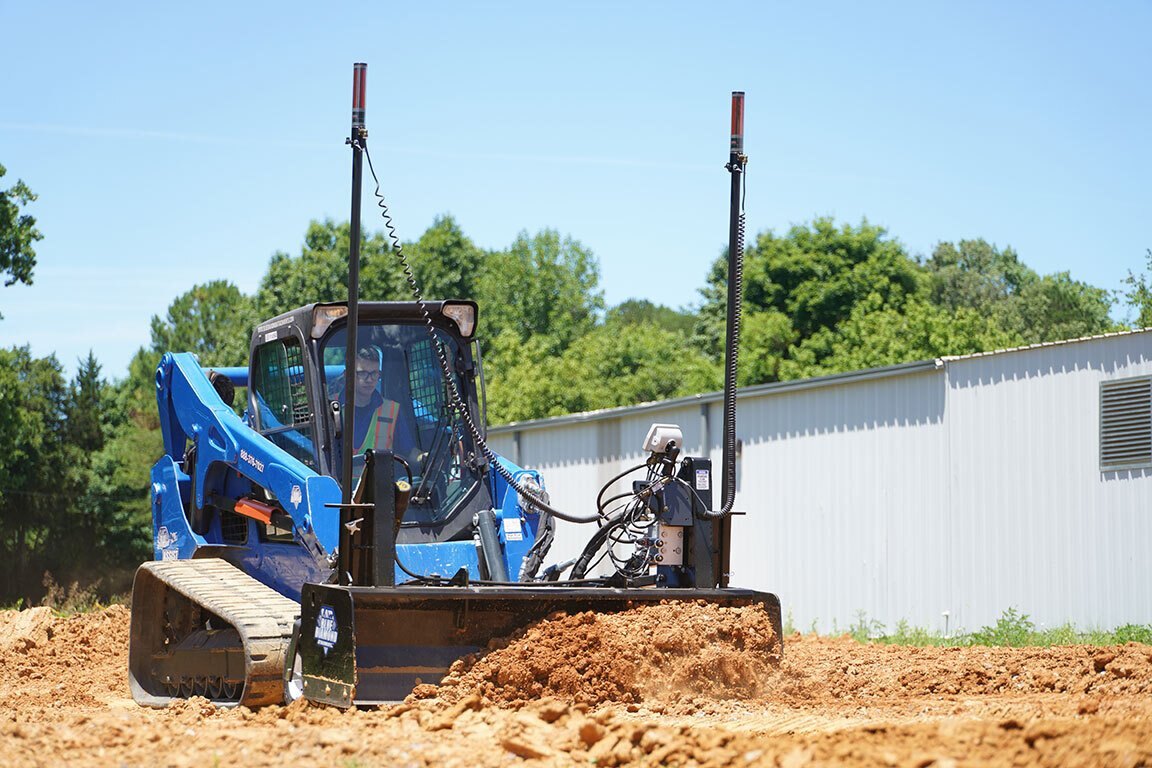

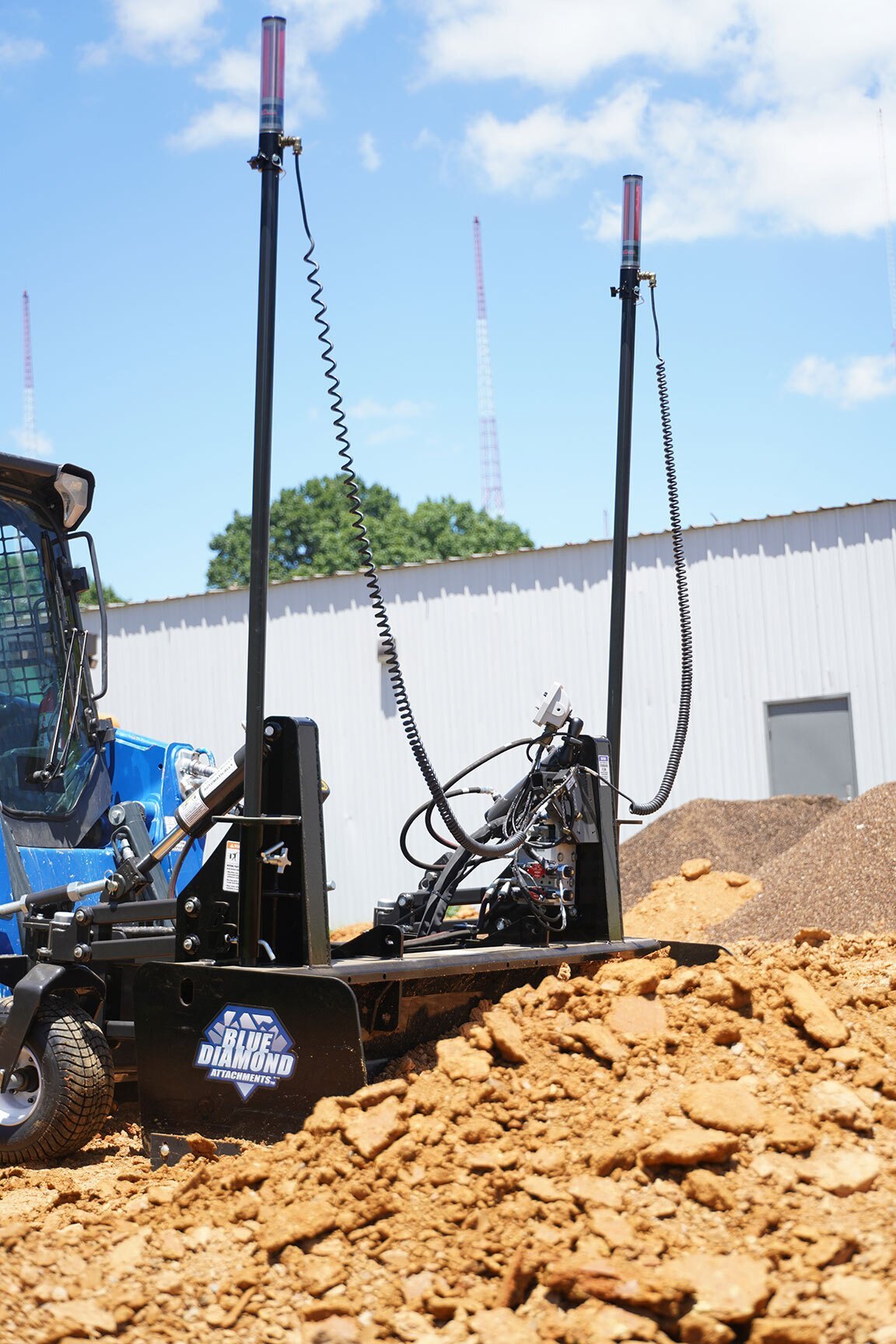

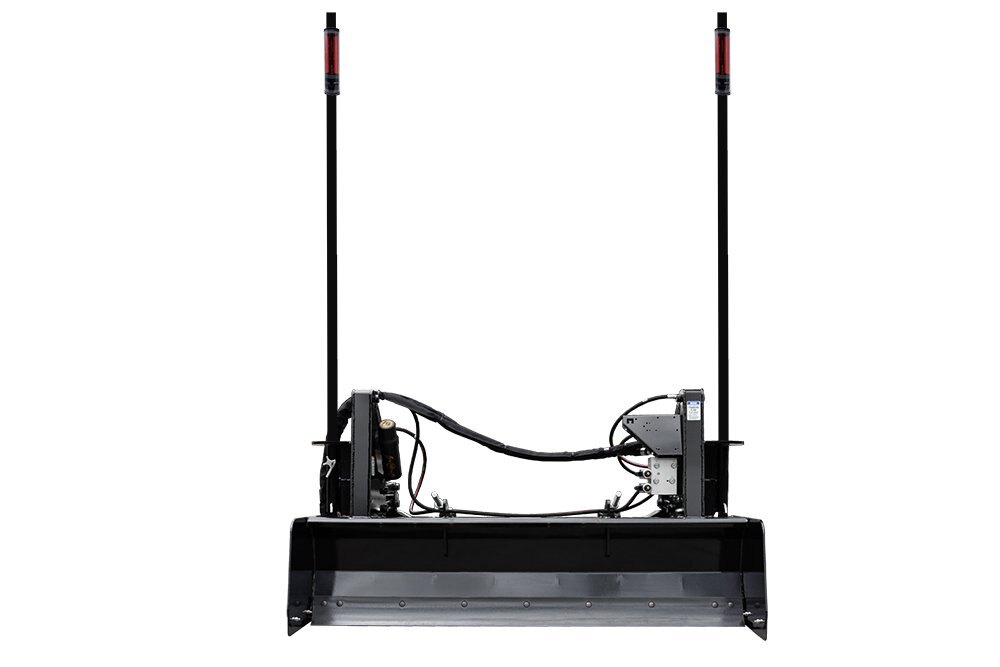

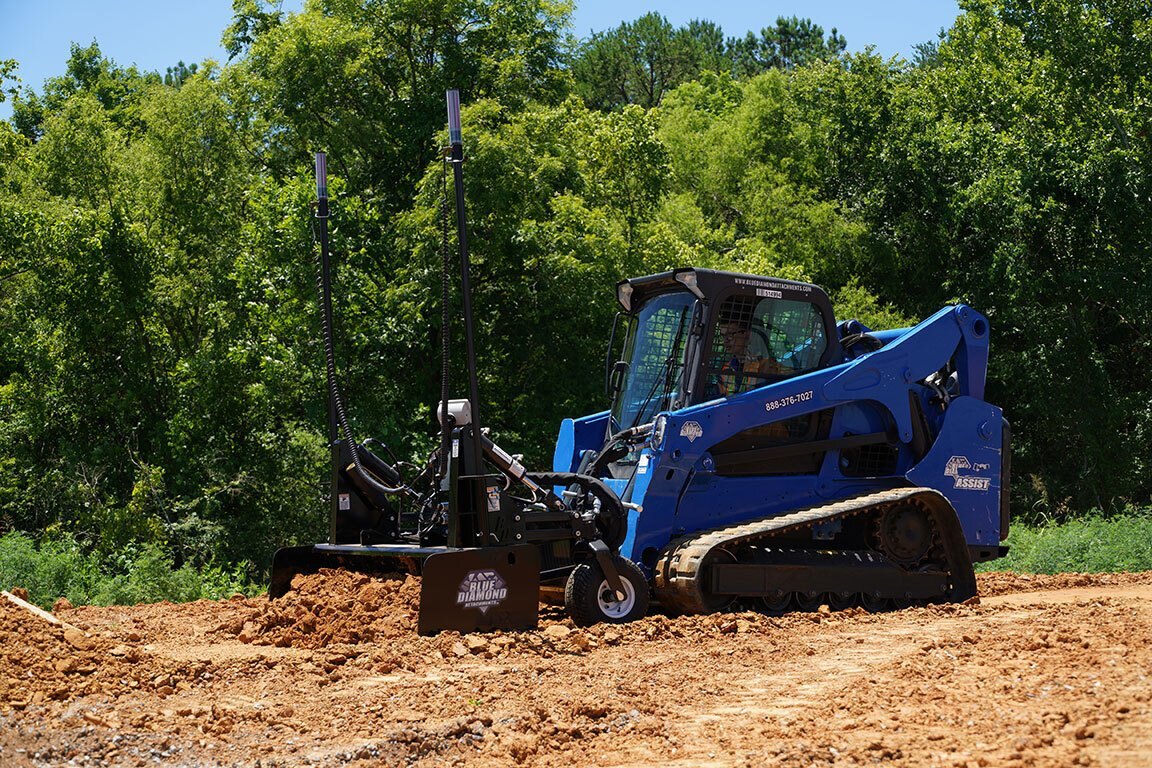

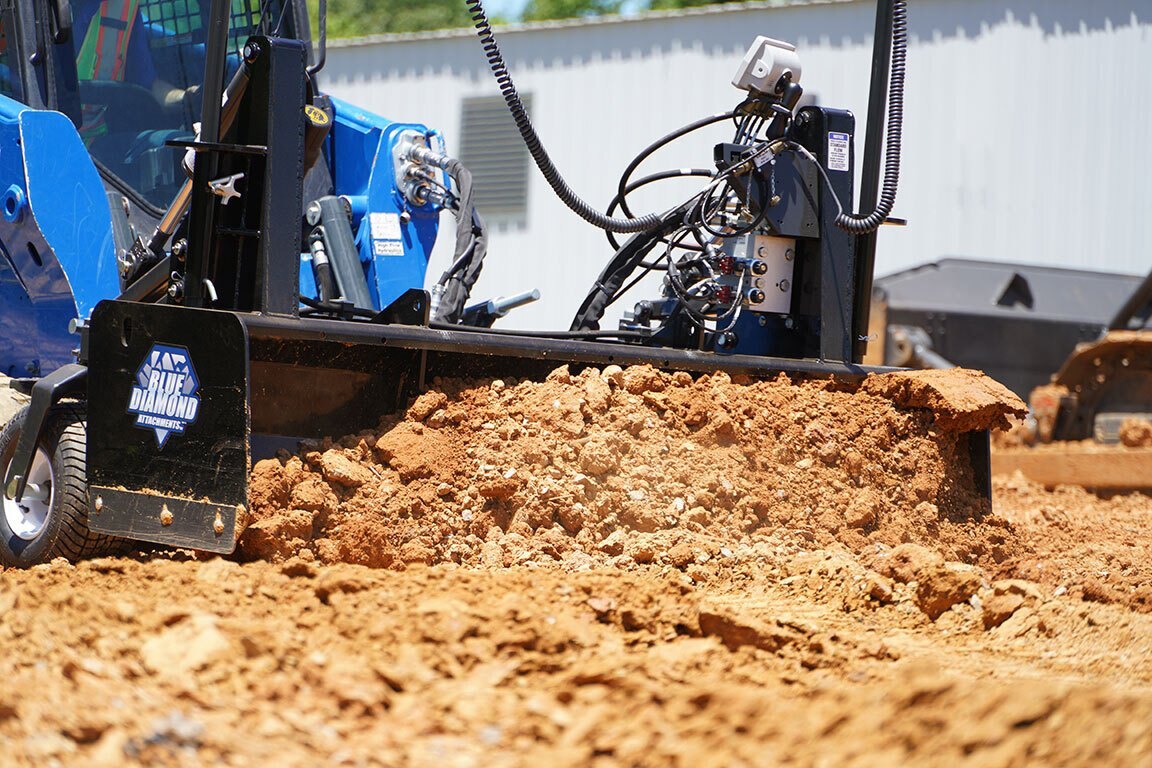

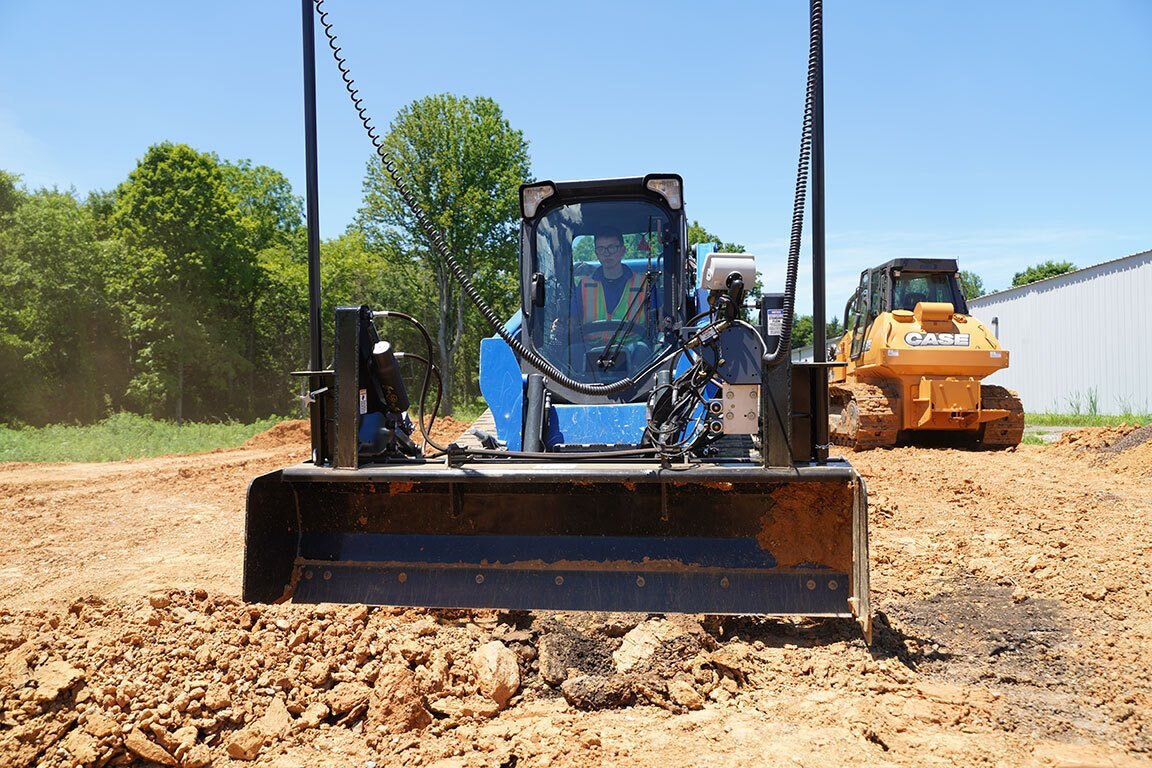

The Blue Diamond® Heavy Duty Land Grader provides fast and accurate laser grading, saving you time and money. High capacity front and rear boxes combined with rear mounted wheels allow you to move and spread material efficiently. This attachment reduces labor and material costs, and improves the overall quality of site preparation! Pair with a bolt-on automatic grade control system and sit back and let the grader do the work!

Specifications

Model

LAND GRADER - HEAVY DUTY

Category Name

Attachments

Year

2026

Sale Type

New

Manufacturer

Blue Diamond

features & benefits

Rear mounted wheels with air-filled tires mounted behind the blade
Front and rear cutting edges allow you to push or pull material for precise placement while traveling in either direction
Bolt-on front and rear cutting edges are ½” thick hardened steel and replaceable. Side edges are adjustable and replaceable
Blade attachment can self-articulate up to 8 inches independently of the skid steer on either side
Ball joints and parallel links allow up/down and side to side movement independent from the machine creating a precision graded surface
Operating width 84 with a 19” box height
17 cubic foot front box and 10 cubic foot rear box capacity
3/16” (7 gauge) steel wrap with rib reinforcements, 3/8" steel side plates
Max 25 GPM, standard flow only, 55 HP minimum required
Hoses and couplers included
Laser receiver kit optional (laser beacon not included)
