Blue Diamond ROCK & CONCRETE GRINDERS

Call for Price

Get a Quote Get Financed Value a Trade Contact Us Book a Demo Get Directions Get Directions Print

Overview

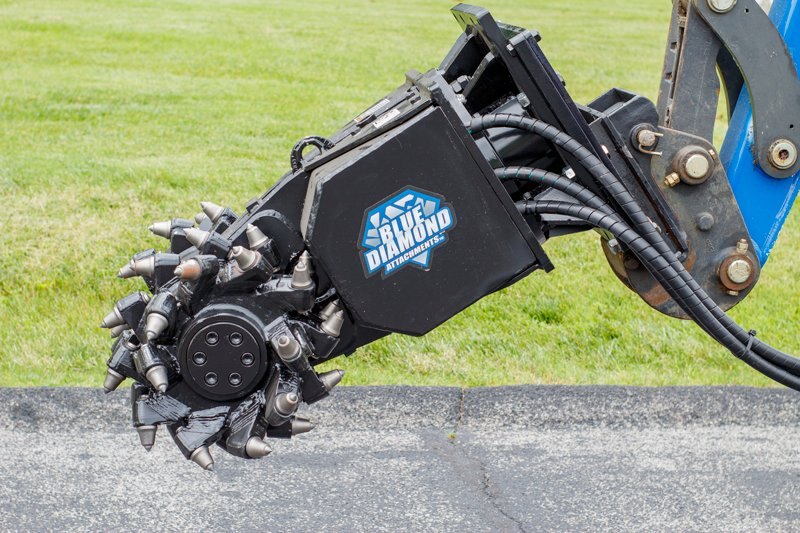

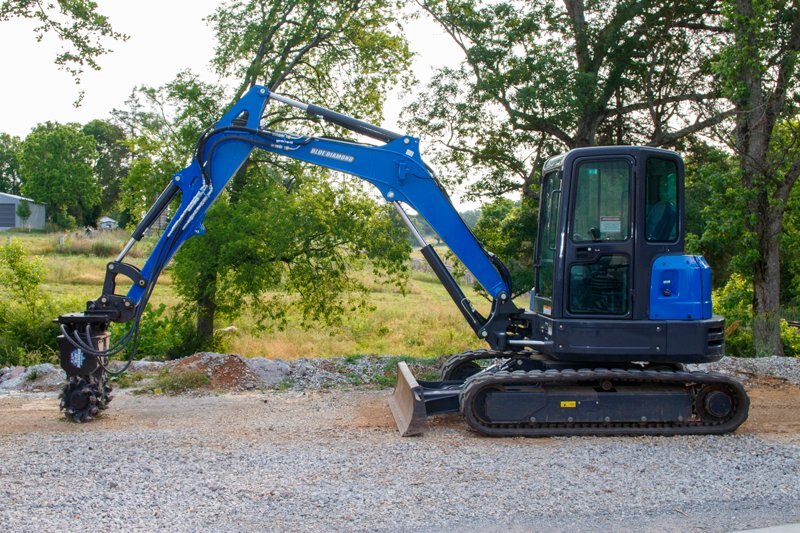

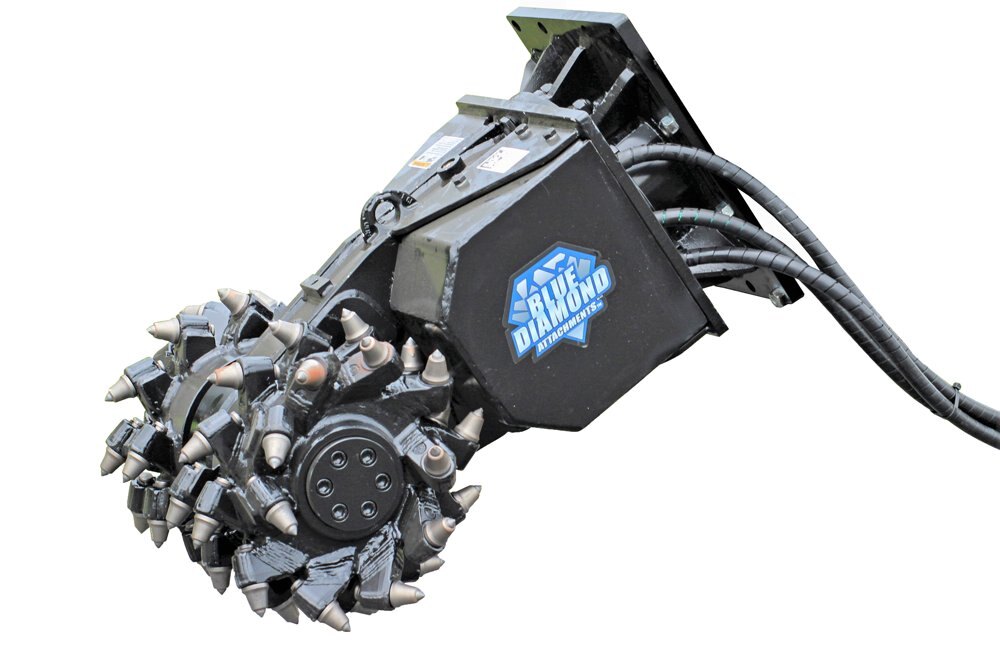

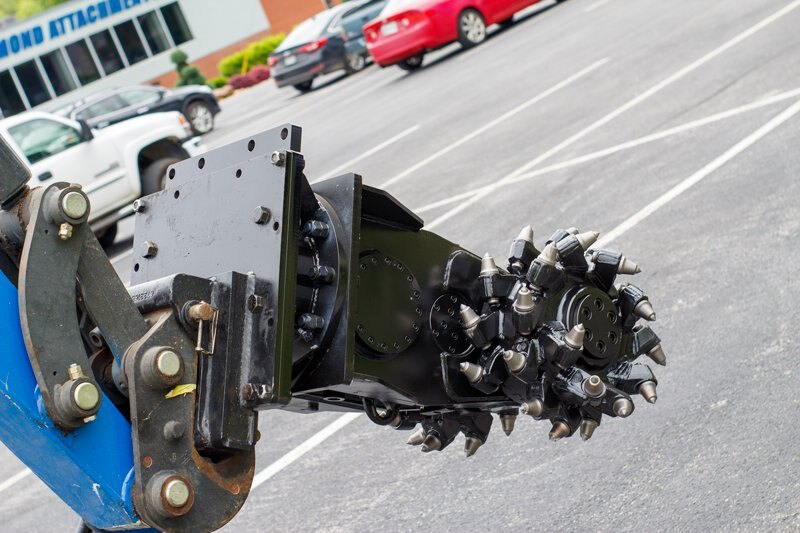

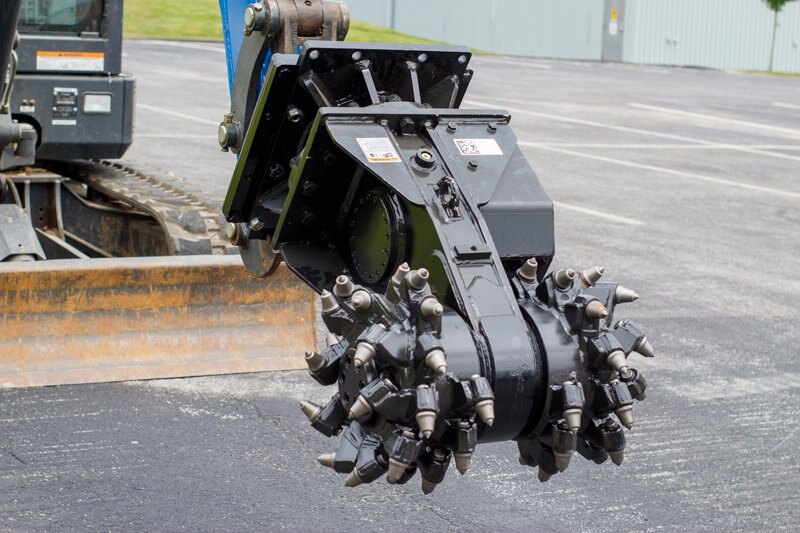

The Blue Diamond® Rock & Concrete Grinders are a must-have tool for any application where rock, concrete, and asphalt need to be removed. They allow for a clean trench to be made with vertical walls. Four different models are available. Mounts are available to fit most excavators and skid steers.

Specifications

Model

ROCK & CONCRETE GRINDERS

Category Name

Attachments

Year

2026

Sale Type

New

Manufacturer

Blue Diamond

features & benefits

All American-made parts & components
Powerful high torque hydraulic motors
Robust cutting drums to ensure maximum production & prolonged life
Customizable drums to accommodate performance maximized applications
Durable spur gears & housing
Bolt-on mount for excavator or skid steer

technical data

Part Number	Model	Weight (Without Mount)	Cutting Width	Head Diameter	Required Flow (GPM)	Carrier
159010	G1S	265 lbs	19"	9"	5-12	1,300-5,000 lbs
159015	G1	635 lbs	21"	11"	8-20	6,900-17,000 lbs
159020	G2	1,035 lbs	25"	16.5"	12-26	17,000-30,000 lbs
159025	G3	2,045 lbs	31"	22″	30-45	22,000-39,000 lbs
159030	G3XL	2,290 lbs	32"	23"	34-65	33,000-66,000 lbs
159035	G4	4,100 lbs	40"	29"	50-85	50,000-90,000 lbs
