Blue Diamond ROCK BUCKET GRAPPLE – HEAVY DUTY

Name: Blue Diamond ROCK BUCKET GRAPPLE – HEAVY DUTY
Brand: Blue Diamond
Availability: OutOfStock

Call for Price

Get a Quote Get Financed Value a Trade Contact Us Book a Demo Get Directions Get Directions Print

Overview

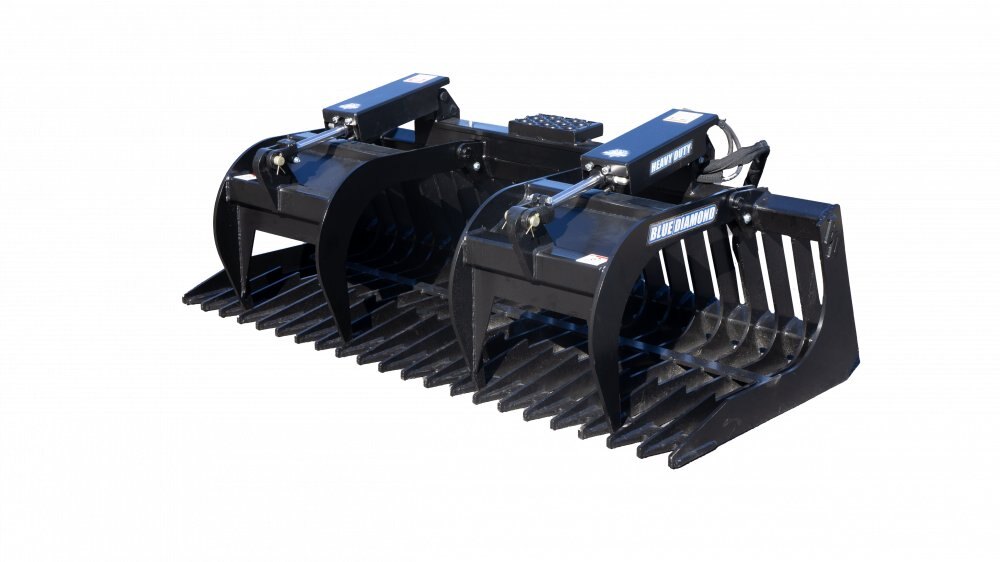

The Blue Diamond® Heavy Duty Grapple Rock Bucket uses 3/8” steel, the tines are spaced at 3”, and the top clamps are constructed of 1/2″ steel. This highly popular bucket can be used for sifting or raking and is available with dual grapples for holding and securing your load. This skid steer attachment works well as a land plane, skimming off high spots with the leading edge and smoothing the loose soil off again with the rear cross bar. The drop down inside keeps rocks from sliding out.

Specifications

Model

ROCK BUCKET GRAPPLE – HEAVY DUTY

Category Name

Attachments

Year

2026

Sale Type

New

Manufacturer

Blue Diamond

features & benefits

Laser cut cutting edge gussets tips of tines
3” spacing between tines
Works great as a land plane and for light clearing

technical data

Part Number	Model	Weight
108332	66” Rock Bucket, W/Heavy Duty Grapple	689 lbs
108347	72” Rock Bucket, W/Heavy Duty Grapple	740 lbs
108362	78” Rock Bucket, W/Heavy Duty Grapple	775 lbs
108382	84” Rock Bucket, W/Heavy Duty Grapple	787 lbs
Heavy Duty - for machines with Max 50 HP or 2,500 lb capacity.
