Blue Diamond ROAD SAW

Name: Blue Diamond ROAD SAW
Brand: Blue Diamond
Availability: OutOfStock

Call for Price

Get a Quote Get Financed Value a Trade Contact Us Book a Demo Get Directions Get Directions Print

Overview

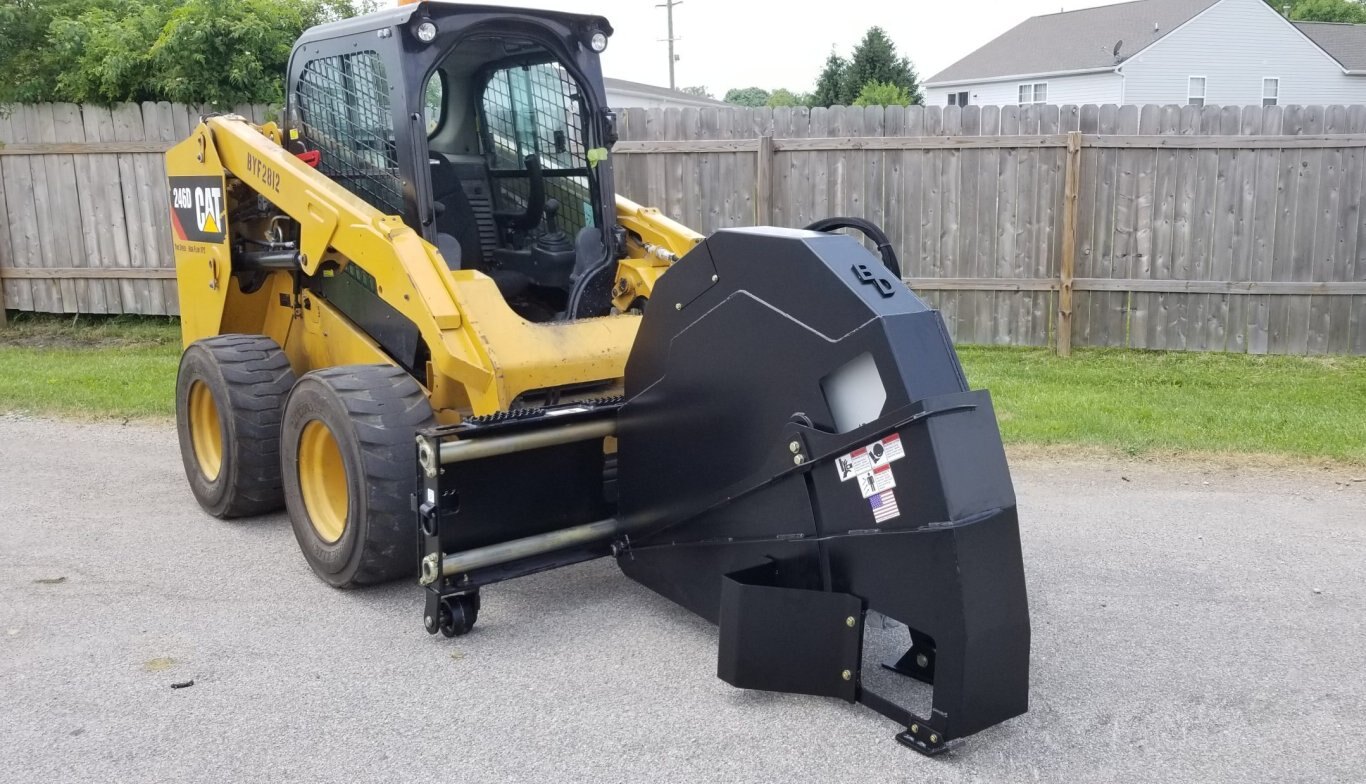

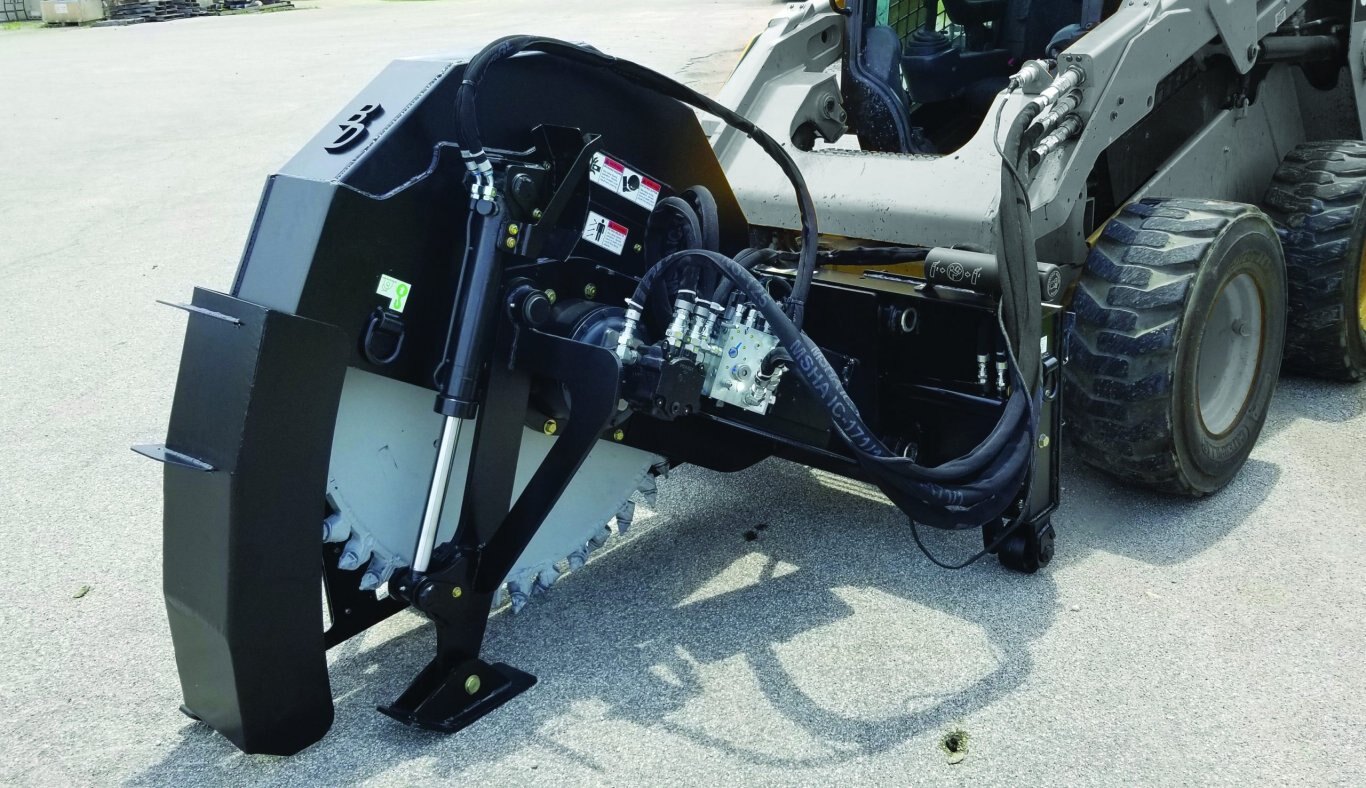

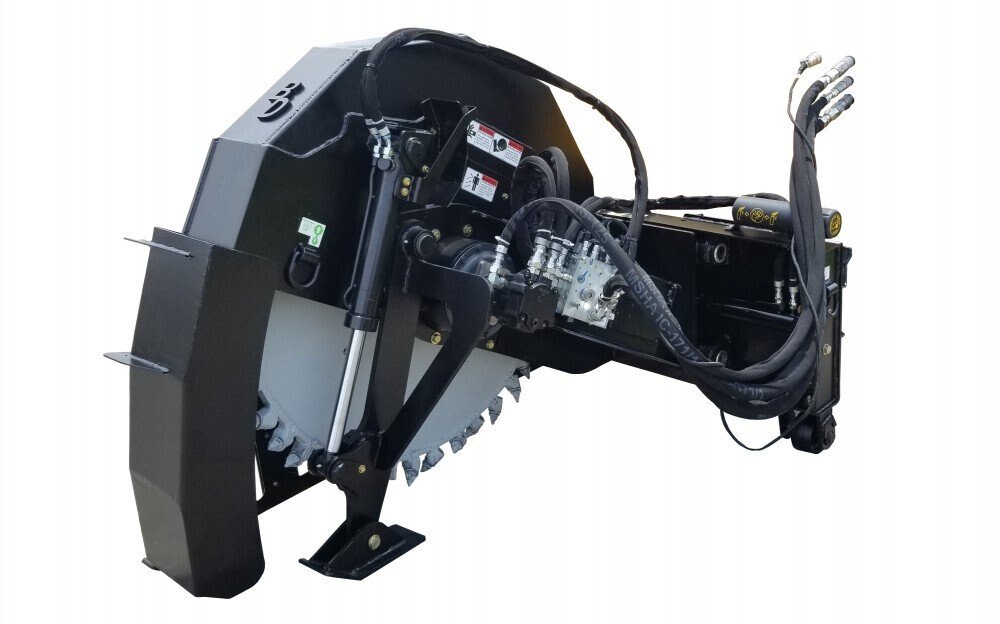

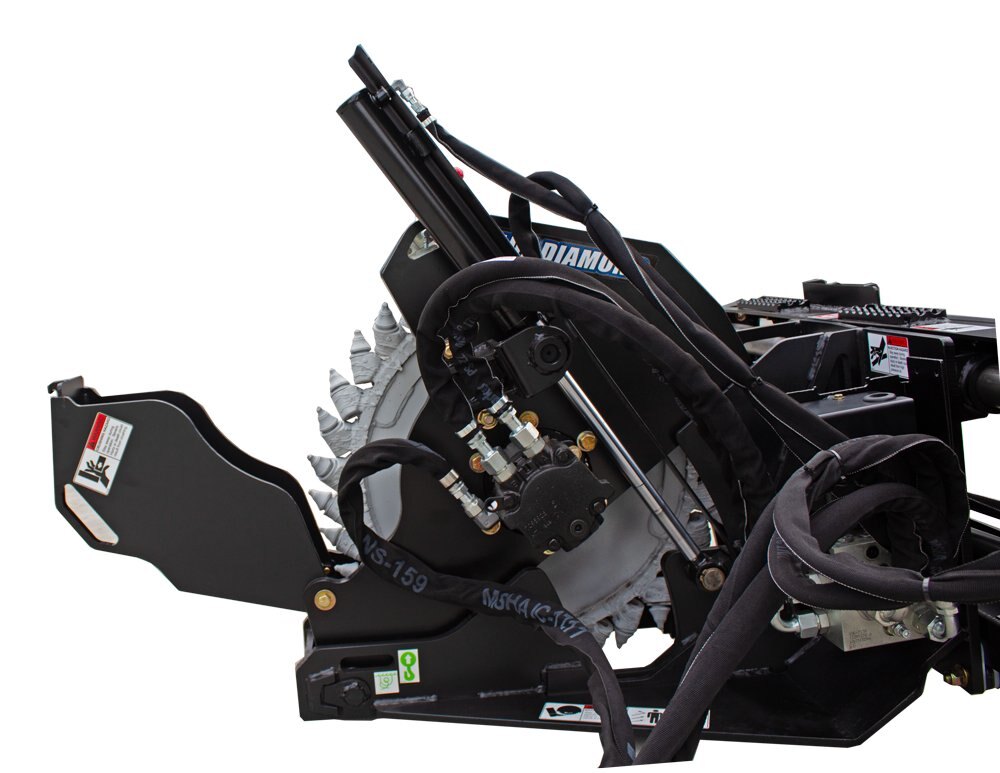

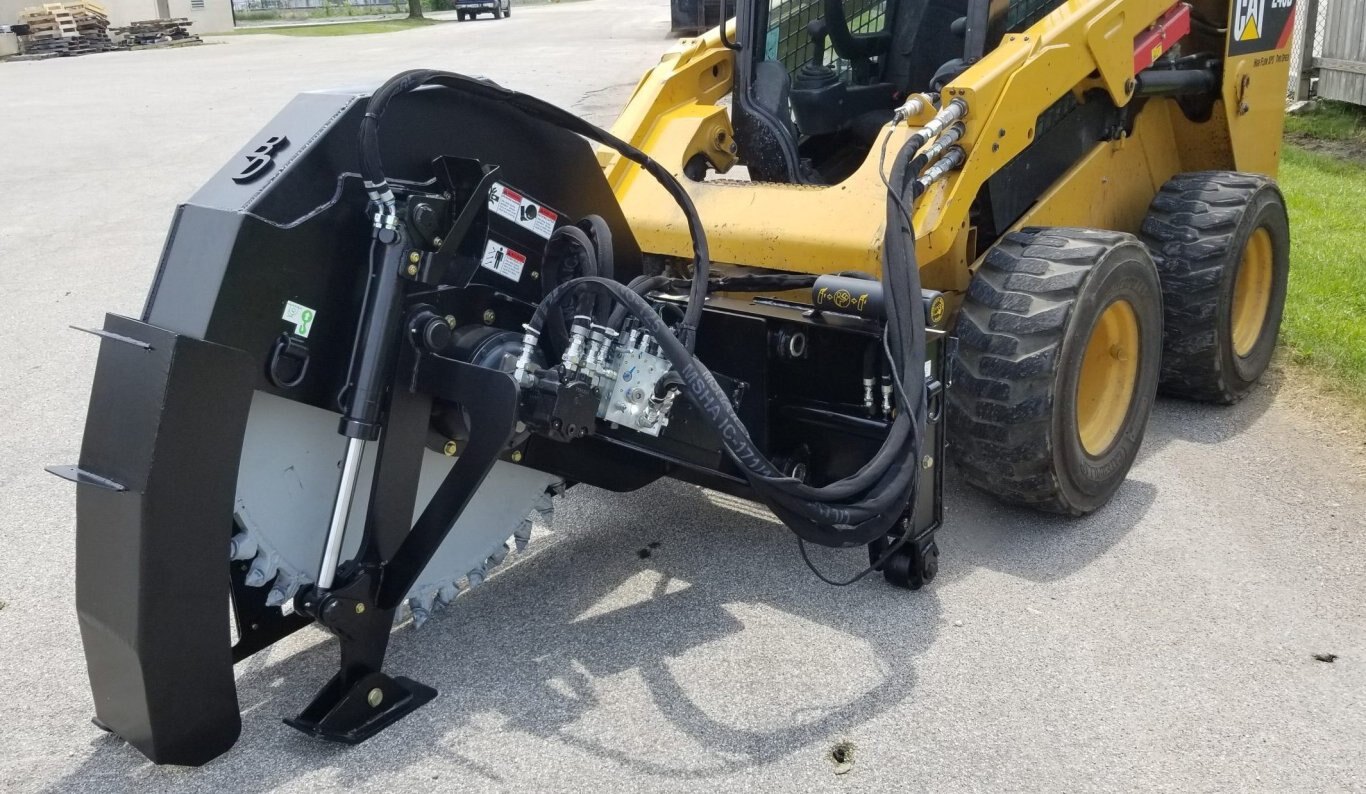

Blue Diamond® high flow road saws offer high rates of production at a substantially lower cost than smaller, self-propelled wheel saws. Designed for cutting asphalt and soil trenching, our high flow skid steer road saws offer cutting depths up to 10 or 18 inches! All feature planetary reduction drives, which efficiently provide maximum cutting torque under load. All saws utilize a ground-engaging frame, which provides accurate depth of cut control.

Specifications

Model

ROAD SAW

Category Name

Attachments

Year

2026

Sale Type

New

Manufacturer

Blue Diamond

features & benefits

Cutting wheels feature replaceable asphalt and soil cutting teeth
Hydraulic Cutting Depth: 10in Model = 0 to 10 inches; 18in Model = 0 to 18 inches
Hydraulic Sideshift: 0 to 26 inches
Available Cutting Wheels: 10in Model = 2.5 & 4.5 inch, 18in Model = 3.0, 4.5 & 6.0- inch
Requires High Flow Hydraulics at a minimum of 30 GPM at 2,500 PSI
Water Kit Available

Model	Min GPM/PSI	Cut Width	Cut Depth	Sideshift	Max Torque	Overall Height	Overall Width
161000-HP	27/2750	2.5", 4.5"	0" - 10"	26"	–	–	66"
161005-HP	32/3000	3", 4.5", 6"	0" - 18"	26"	4500 lb/ft	60"	66"

technical data

Part Number	Model	Weight
161000-HP	10" Cut Depth, Road Saw (Req Cutting Wheel)	1,196 lbs
161005-HP	18" Cut Depth, Road Saw (Req Cutting Wheel)	1,172 lbs
161505	10" Depth X 2.5"W Cutting Wheel	127 lbs
161510	10" Depth X 4.5"W Cutting Wheel	165 lbs
161530	18" Depth X 3"W Cutting Wheel	372 lbs
161533	18" Depth X 4.5"W Cutting Wheel	426 lbs
161535	18" Depth X 6"W Cutting Wheel	481 lbs
