Blue Diamond GRAPPLE RAKE - HEAVY DUTY

Name: Blue Diamond GRAPPLE RAKE - HEAVY DUTY
Brand: Blue Diamond
Availability: OutOfStock

Call for Price

Get a Quote Get Financed Value a Trade Contact Us Book a Demo Get Directions Get Directions Print

Overview

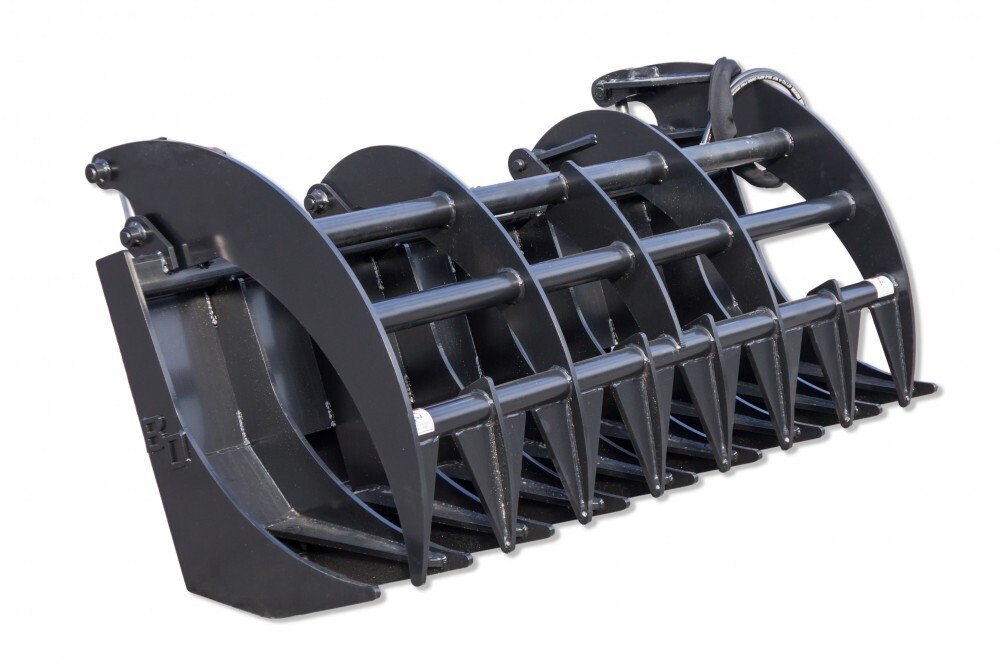

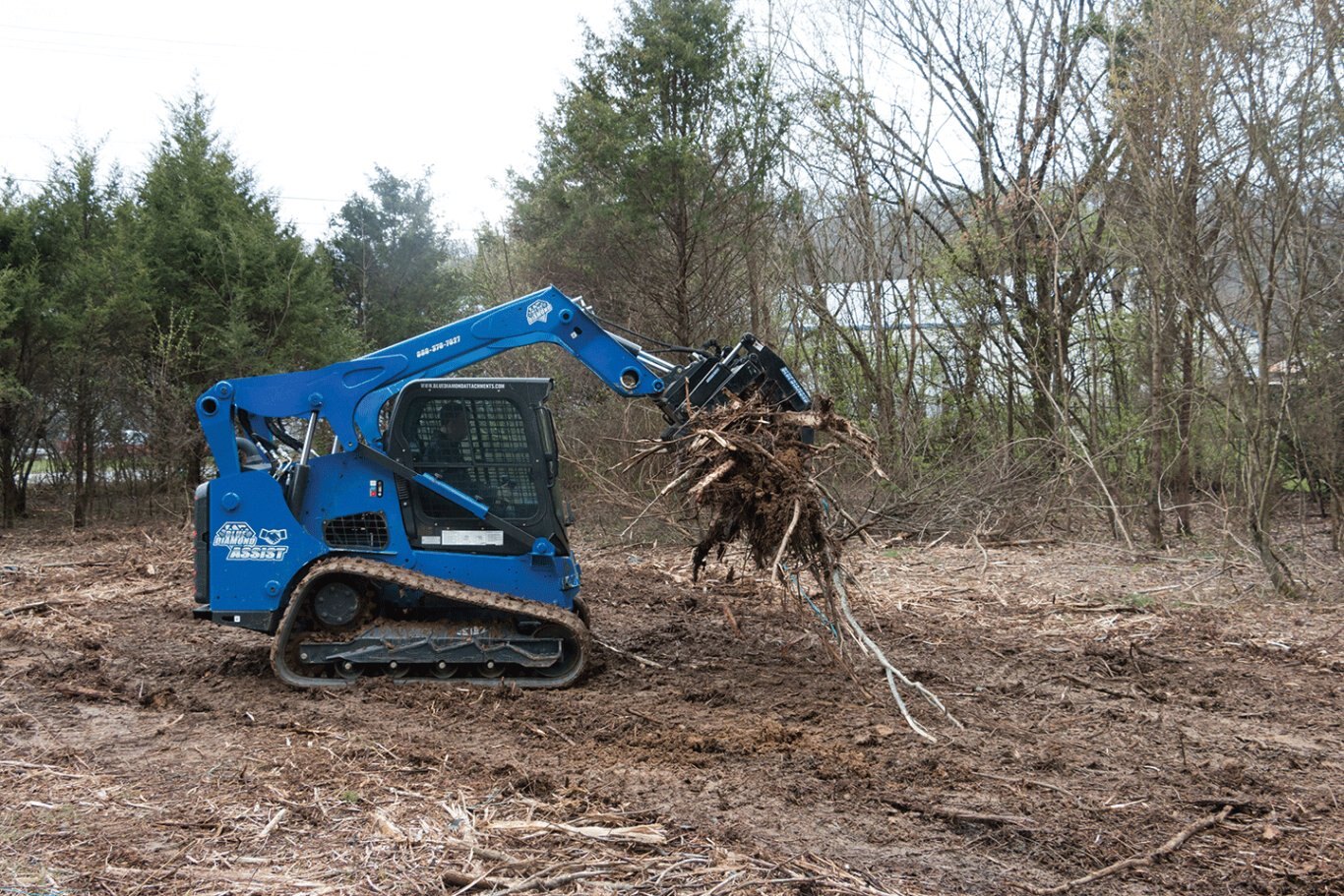

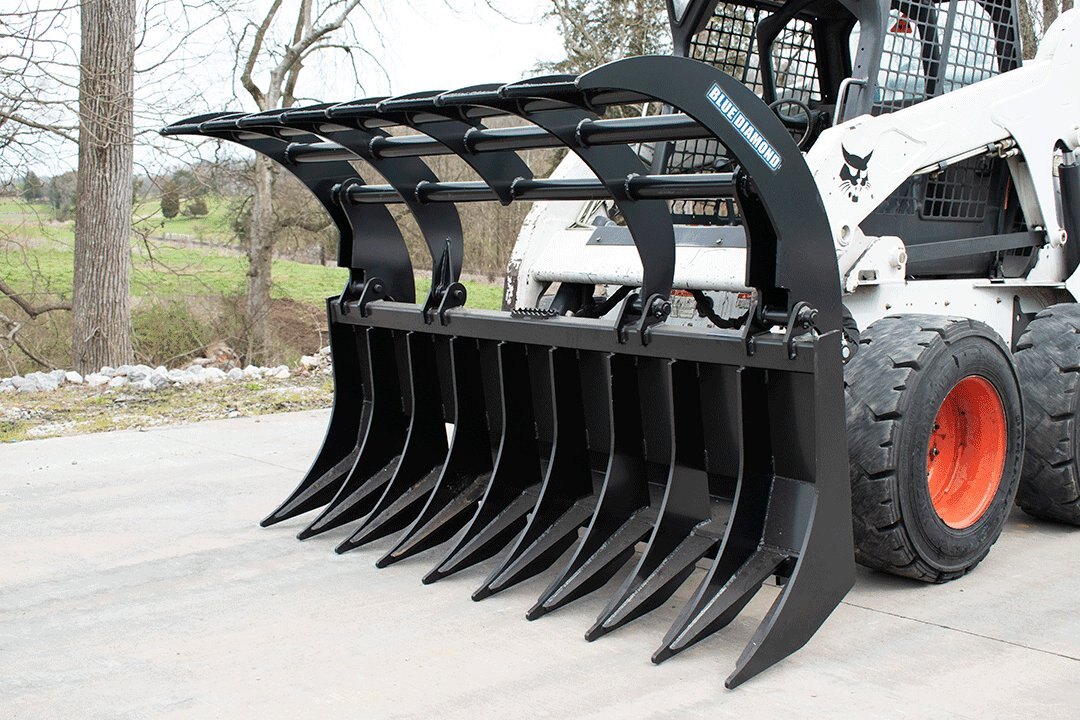

The Blue Diamond® Heavy Duty Grapple Rake for skid steers is a great alternative to a root grapple when visibility is important. Our Grapple Rakes are ideal for picking up rocks, logs, brush, or other debris quickly. The shape of the grapple makes it easy to roll debris into tight places. This grapple rake features a single top clamp and 1/2″ tines. It fully opens to 52″. Heavy duty grapple rakes are not rated for machines over 65 HP.

Specifications

Model

GRAPPLE RAKE - HEAVY DUTY

Category Name

Attachments

Year

2026

Sale Type

New

Manufacturer

Blue Diamond

features & benefits

Single top clamp
1/2" thick tines
Opens to 52”
Greaseable pivot points
3,000 psi max PSI
Not rated for machines over 65 HP

technical data

Part Number	Model	Tine Thickness	Weight
107001	63" Grapple Rake, HD, Single Clamp	1/2"	777 lbs
107005	72″ Grapple Rake, HD, Single Clamp	1/2″	878 lbs
107015	84″ Grapple Rake, HD, Single Clamp	1/2″	965 lbs
