Blue Diamond GRAPPLE BUCKET – HEAVY DUTY

Name: Blue Diamond GRAPPLE BUCKET – HEAVY DUTY
Brand: Blue Diamond
Availability: OutOfStock

Call for Price

Get a Quote Get Financed Value a Trade Contact Us Book a Demo Get Directions Get Directions Print

Overview

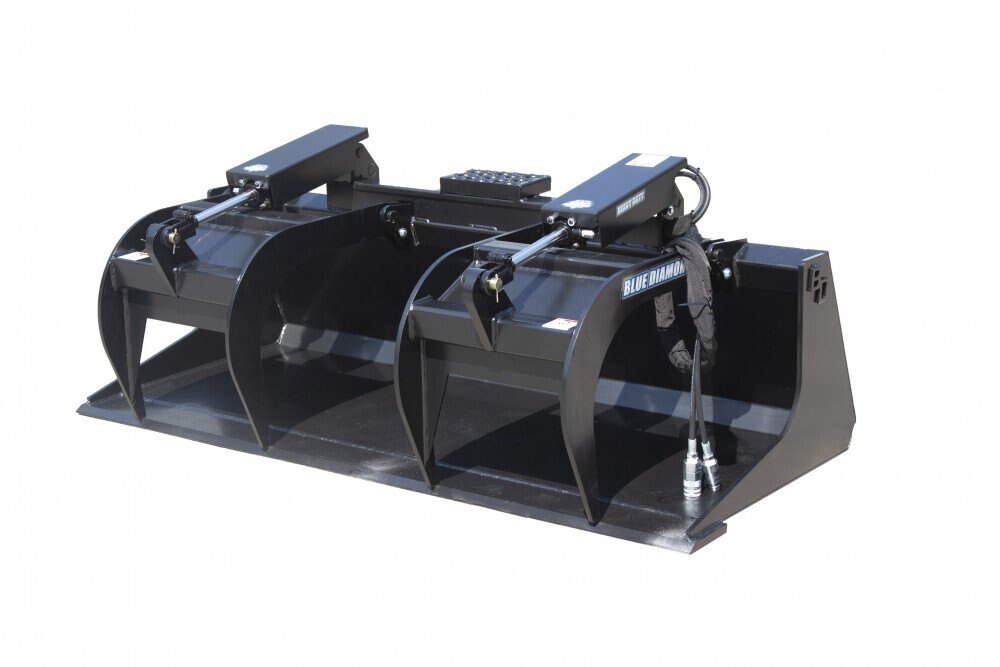

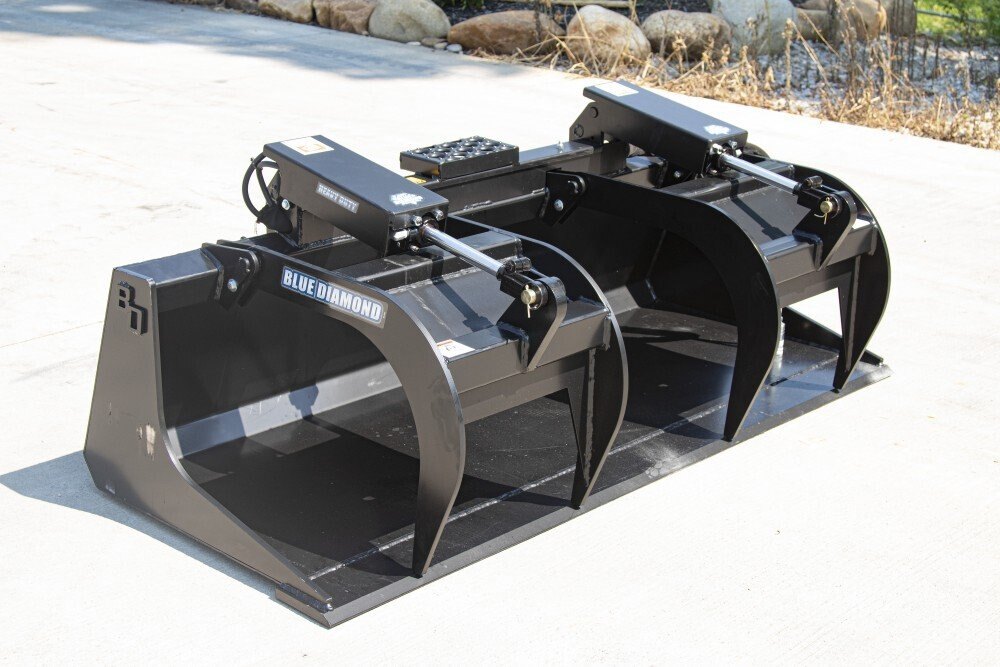

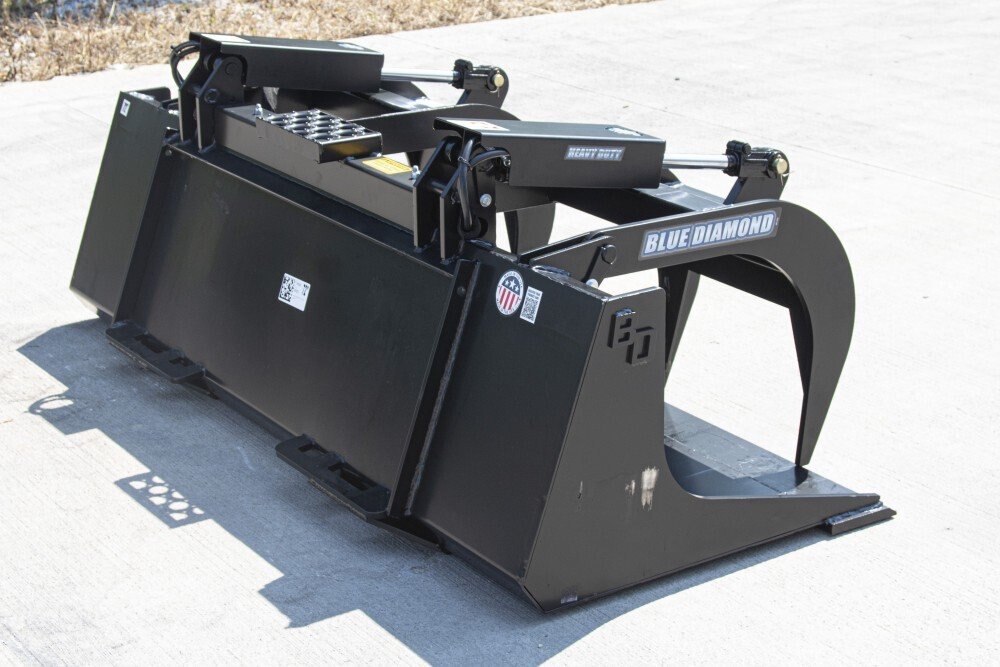

The Blue Diamond® Heavy Duty Grapple Bucket is designed for up to 50 hp skid steers with a moderate work load. Made from 1/2” steel, this attachment is strong yet light enough for smaller machines. Pivot-point grease fittings and couplers are standard.

Specifications

Model

GRAPPLE BUCKET – HEAVY DUTY

Category Name

Attachments

Year

2026

Sale Type

New

Manufacturer

Blue Diamond

features & benefits

1/2″ thick top clamps
Cylinder protection covers
Opens to 32″
Best suited for machines up to 50 hp or 1800 lb lift capacity
Punched edge for bolt-on edge
Protected hoses

technical data

Part Number	Model	Lift Capacity	Weight
106078	60" Grapple Bucket, HD Series 2, Dual Clamps, Punched Edge for BOE	10.26 CU FT	675 lbs
106086	66" Grapple Bucket, HD Series 2, Dual Clamps, Punched Edge for BOE	11.07 CU FT	700 lbs
106096	72" Grapple Bucket, HD Series 2, Dual Clamps, Punched Edge for BOE	11.88 CU FT	725 lbs
