Blue Diamond MAT GRAPPLE FORK

Name: Blue Diamond MAT GRAPPLE FORK
Brand: Blue Diamond
Availability: OutOfStock

Call for Price

Get a Quote Get Financed Value a Trade Contact Us Book a Demo Get Directions Get Directions Print

Overview

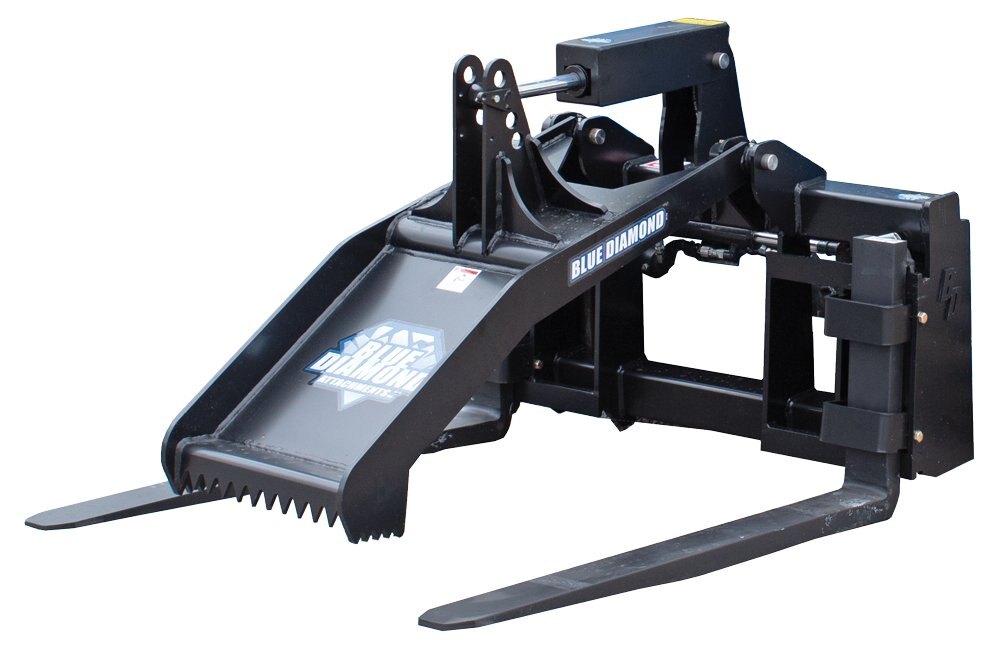

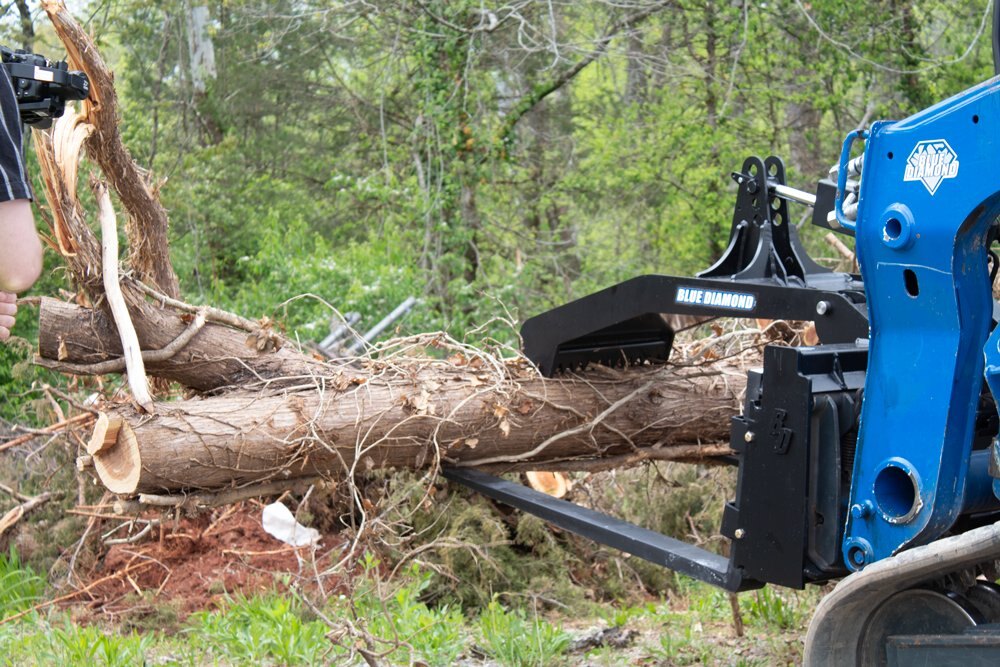

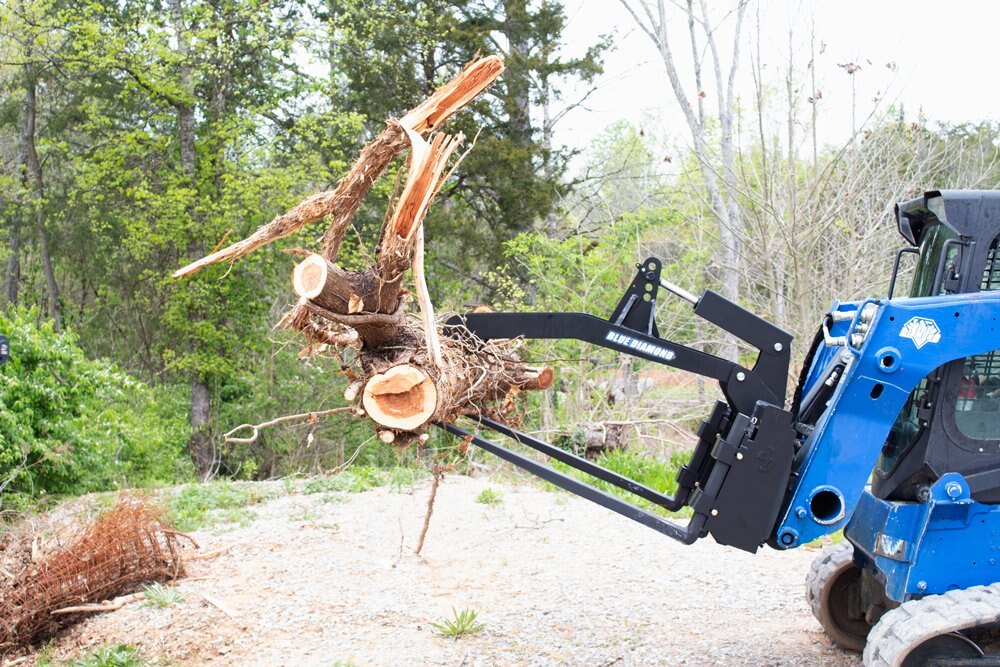

The Blue Diamond® Skid Steer Mat Grapple is a great attachment for carrying everything from pipes and logs to pallets, but it is designed specifically for equipment mats. The adjustable cylinder mount point allows the grapple to open wider or close tighter depending on your needs. The tines can be 48”, 60”, or 72” with a 4000 lb. capacity.

Specifications

Model

MAT GRAPPLE FORK

Category Name

Attachments

Year

2026

Sale Type

New

Manufacturer

Blue Diamond

features & benefits

Designed for equipment mats
48″, 60″, or 72″ tines
Special top clamp that holds mats

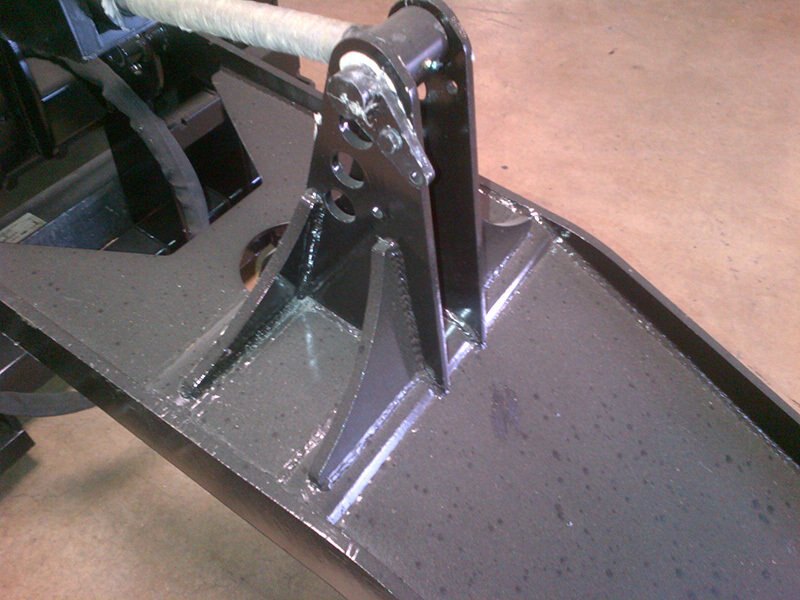

4-position top clamp

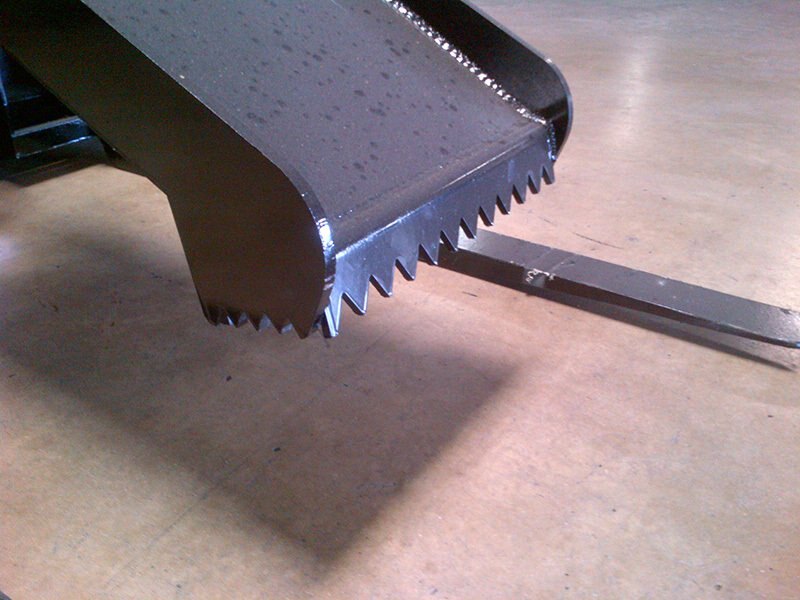

Teeth on grapple that grip mats
4,000 lbs capacity

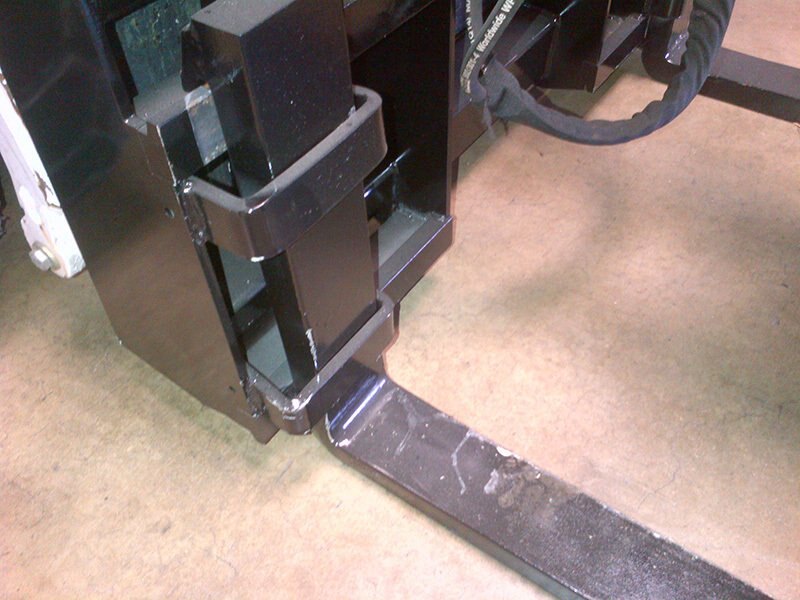

Fits Class 2 fork tines
Tines do not adjust

technical data

Part Number	Model	Tine Size	Weight
106003	Mat Grapple Without Tines	—	936 lbs
306017	Mat Grapple with 48" Tines	48” X 1 3/4”	950 lbs
306016	Mat Grapple with 60" Tines	60” X 1 3/4”	715 lbs
306015	Mat Grapple with 72" Tines	72” X 1 3/4”	936 lbs
