Blue Diamond PALLET FORKS – WALK-THROUGH

Name: Blue Diamond PALLET FORKS – WALK-THROUGH
Brand: Blue Diamond
Availability: OutOfStock

Call for Price

Get a Quote Get Financed Value a Trade Contact Us Book a Demo Get Directions Get Directions Print

Overview

Blue Diamond® Heavy Duty Skid Steer Pallet Forks are rated for 4,200 to 5,000 lbs. lift. Using an easy-to-see-through frame, the heavy duty pallet forks give added lift capacity for larger skid steers. The reinforced brick guard and quick attach area make it extremely durable for heavy use. 48” tines are standard, and 60” and 72″ are available. The powder-coated frames feature a riveted on serial tag that has the lift capacities in pounds and kilograms to meet job site requirements for lifting attachments. Rental Recommended.

Specifications

Model

PALLET FORKS – WALK-THROUGH

Category Name

Attachments

Year

2026

Sale Type

New

Manufacturer

Blue Diamond

features & benefits

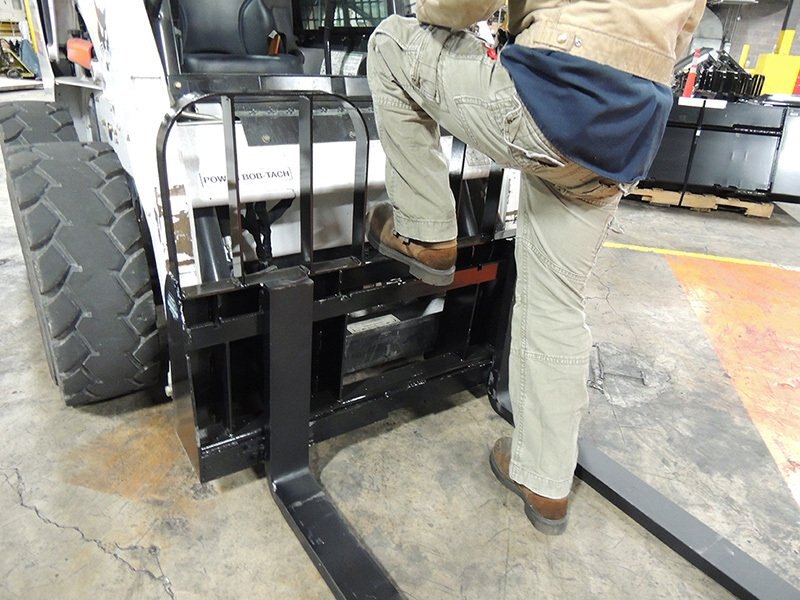

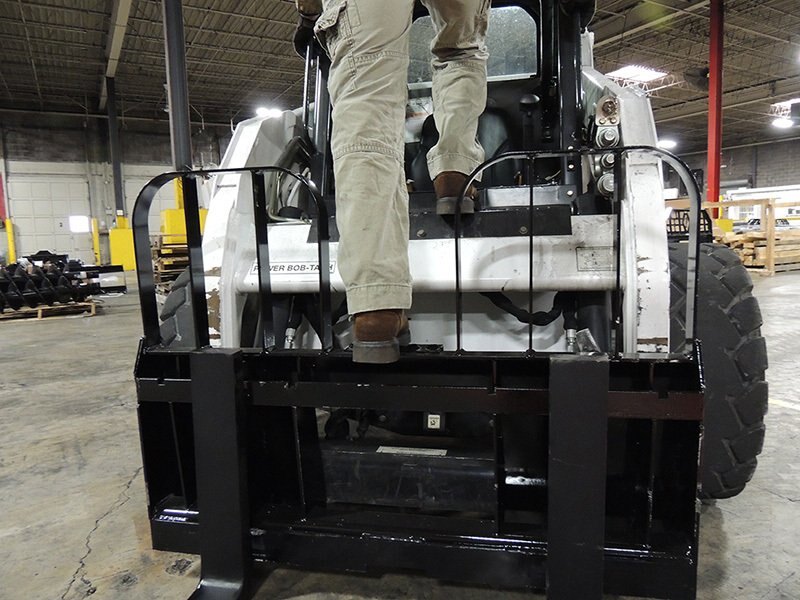

Walk-through frame allows easy entry to machine
Tread plate gives safe footing
4,200 to 5,000 lb capacity
48”, 60” and 72" tines available
Forks lock in position
Excellent visibility

technical data

Part Number	Model	Lift Capacity	Tine Size	Weight
314009	Pallet Fork - Walk-through with 48" Tines	4,200 lbs.	1 1/2″ X 48″	369 lbs.
314100	Pallet Fork - Walk-through with 60" Tines	4,200 lbs.	1 1/2″ X 60″	411 lbs.
314008	Pallet Fork - Walk-through with 48" Tines	5,000 lbs.	1 1/2″ X 48″	418 lbs.
314110	Pallet Fork - Walk-through with 60" Tines	5,000 lbs.	1 1/2″ X 60″	422 lbs.
314115	Pallet Fork - Walk-through with 72" Tines	5,000 lbs	1/34" X 72"	450 lbs
