Blue Diamond PALLET FORKS – CLASS 3 10,000 LBS. CAPACITY

Name: Blue Diamond PALLET FORKS – CLASS 3 10,000 LBS. CAPACITY
Brand: Blue Diamond
Availability: OutOfStock

Call for Price

Get a Quote Get Financed Value a Trade Contact Us Book a Demo Get Directions Get Directions Print

Overview

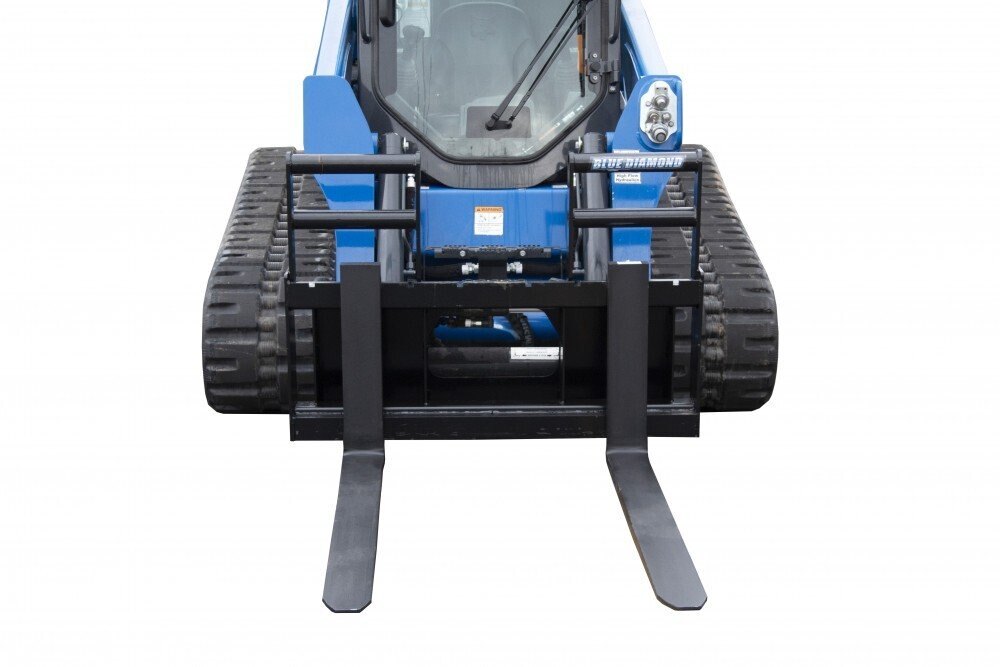

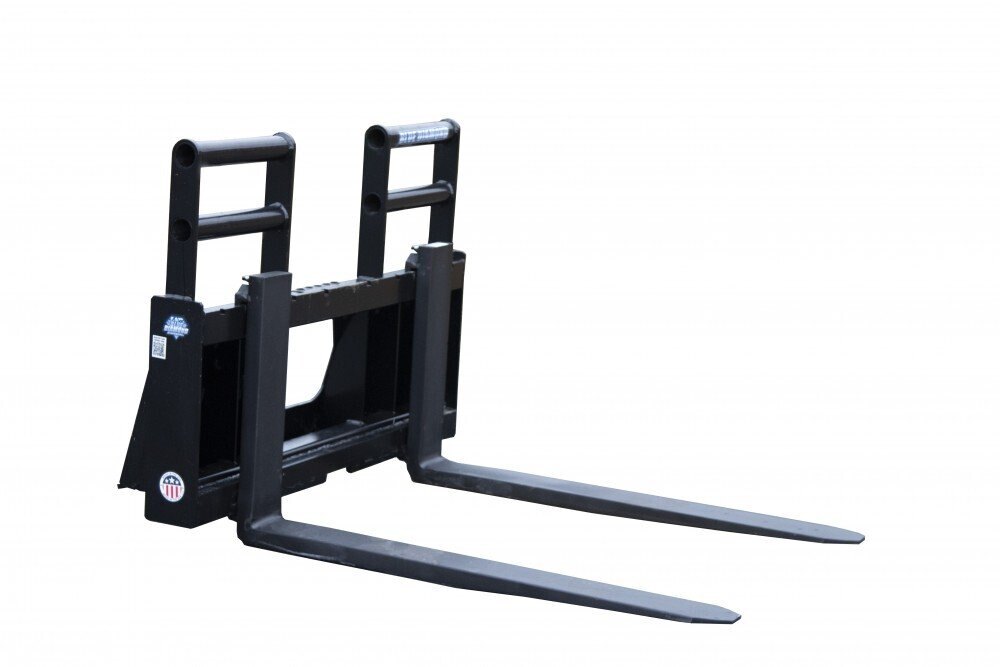

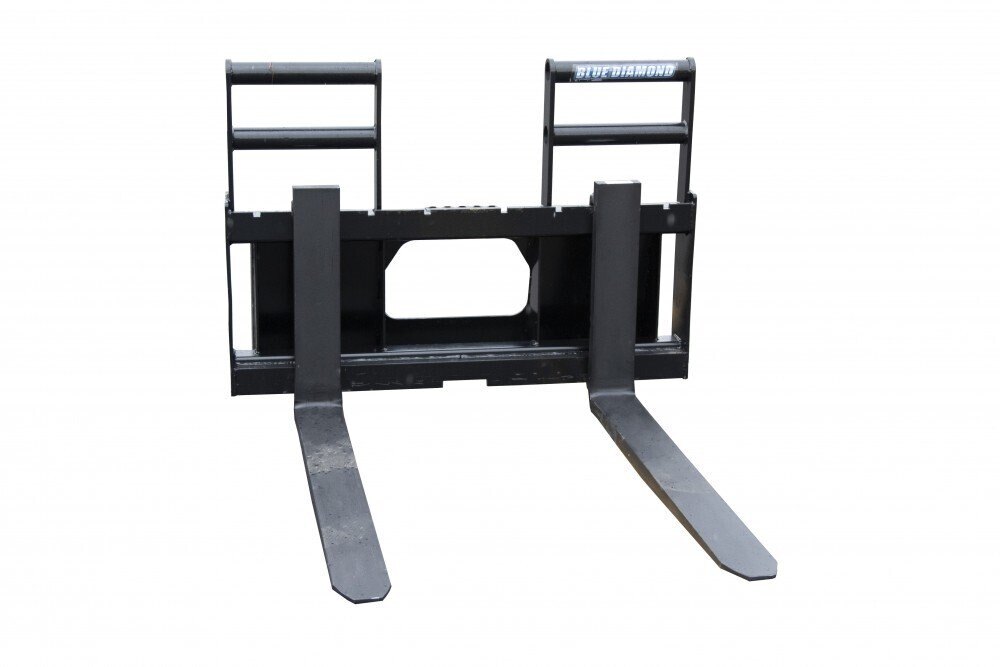

Our Blue Diamond® Class 3 Walk Through Pallet Forks are available to fit large frame track loaders and wheel loaders that have the skid steer quick attach. The cutout in the backrest offers easy cab entry for skid steers and also is designed to clear center linkage on wheel loaders. The Class 3 frame can accommodate a number of fork lengths from 48” to 96”.

Specifications

Model

PALLET FORKS – CLASS 3 10,000 LBS. CAPACITY

Category Name

Attachments

Year

2026

Sale Type

New

Manufacturer

Blue Diamond

features & benefits

10,000 lb capacity
48” to 96” length tines available
Back rest design fits multiple applications
50″ wide frame

technical data

Part Number	Model	Tine Size	Lift Capacity	Weight
314150	Walk Through, Class 3	48" X 1 3/4" X 5"	10,000 lbs	517 lbs
314152	Walk Through, Class 3	60" X 1 3/4" X 5"	10,000 lbs	579 lbs
314155	Walk Through, Class 3	60" X 2" X 5"	10,000 lbs	758 lbs
314160	Walk Through, Class 3	72" X 2" X 5"	10,000 lbs	828 lbs
314165	Walk Through, Class 3	84" X 2" X 5"	10,000 lbs	848 lbs
314167	Walk Through, Class 3	96" X 2" X 5"	10,000 lbs	875 lbs
