Blue Diamond PALLET FORKS – 4,000 LBS. CAPACITY STANDARD DUTY

Name: Blue Diamond PALLET FORKS – 4,000 LBS. CAPACITY STANDARD DUTY
Brand: Blue Diamond
Availability: OutOfStock

Videos

Call for Price

Get a Quote Get Financed Value a Trade Contact Us Book a Demo Get Directions Get Directions Print

Overview

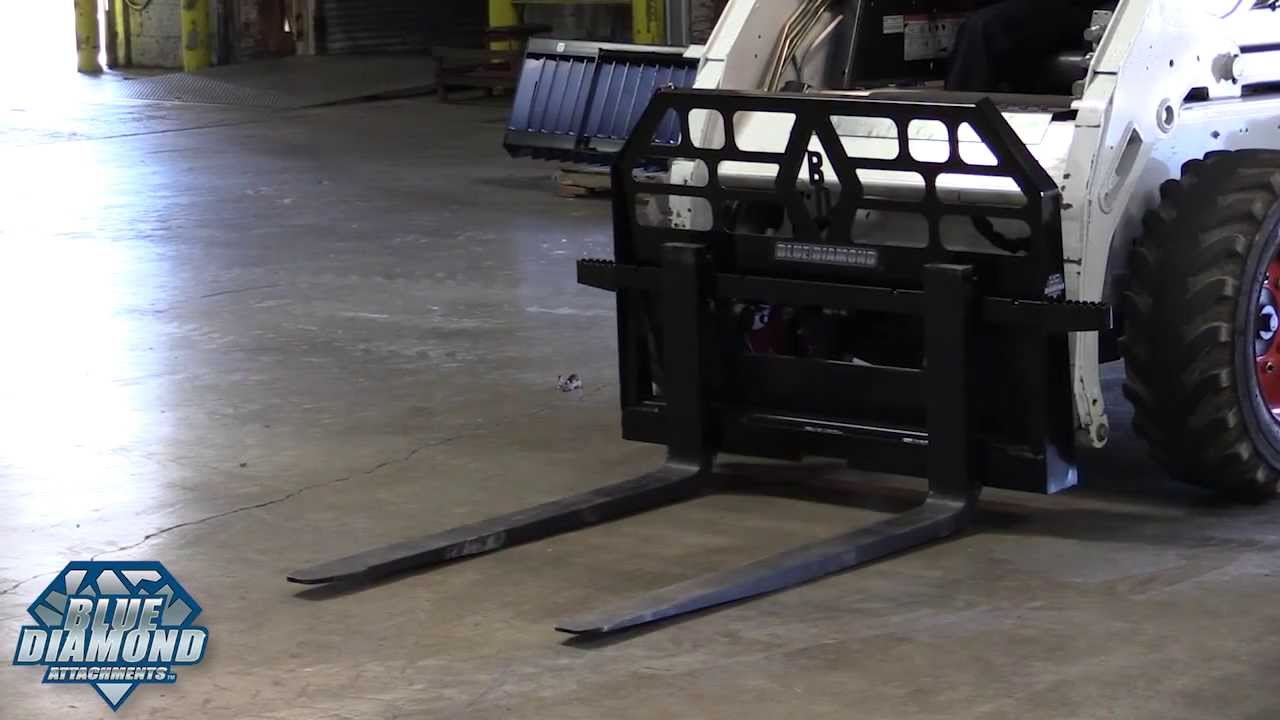

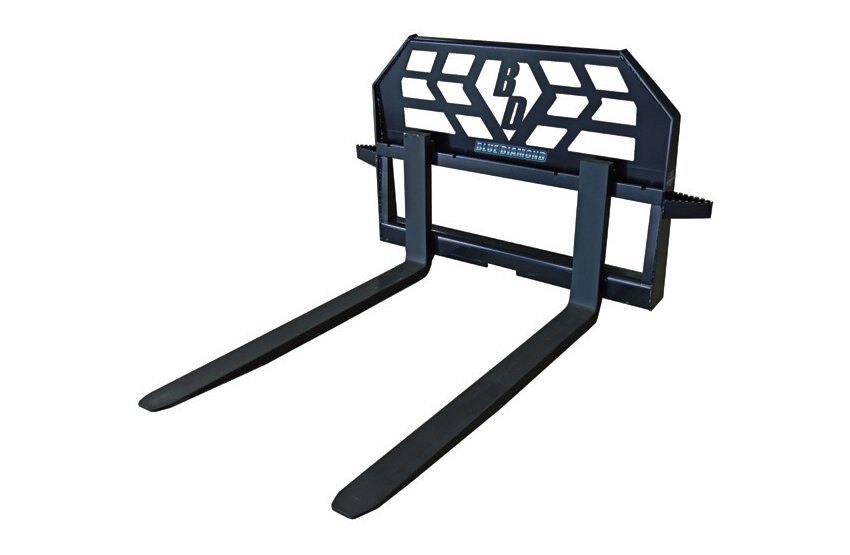

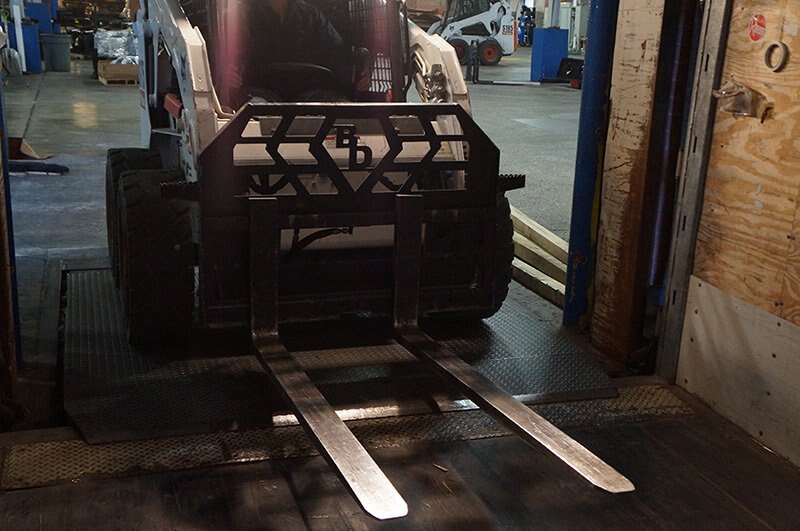

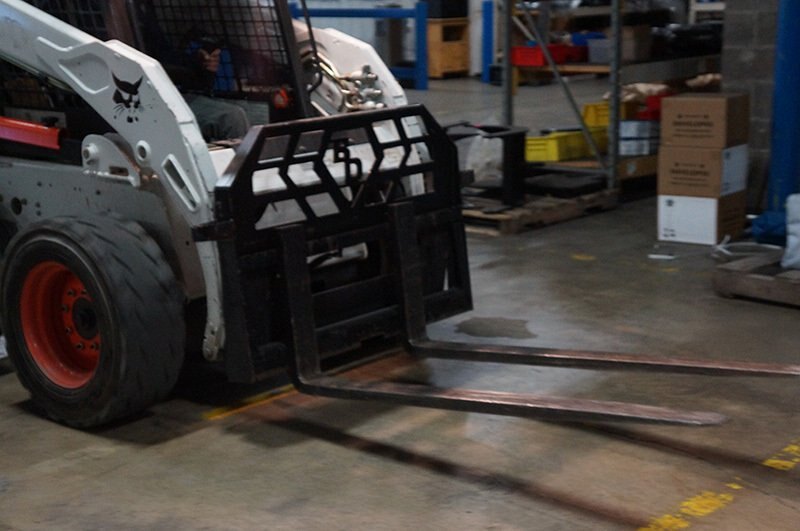

Our Blue Diamond® Skid Steer Pallet Forks offer great visibility on a heavy duty frame. The 48” tines are 1.5″ thick and are fully adjustable. This is our most popular style forks for general use. Frames are powder-coated for durable finish and serial numbered with lifting capacities in both pounds and kilograms to meet regulations in many counties. Available with or without the side steps.

Specifications

Model

PALLET FORKS – 4,000 LBS. CAPACITY STANDARD DUTY

Category Name

Attachments

Year

2026

Sale Type

New

Manufacturer

Blue Diamond

features & benefits

Rail mount tines
Easy to adjust
4,000 lb. capacity
Non-floating tines
48″ x 4″ x 1 1/2″ tines

technical data

Part Number	Model	Tine Size	Lift Capacity	Weight
314006	Pallet Fork Std, W/Steps	42” X 1 1/4”	3,700 LBS	311 lbs
314007	Pallet Fork Std	42” X 1 1/4”	3,700 LBS	318 lbs
314004	Pallet Fork, Std, W/Steps	48” X 1 1/2”	4,000 LBS	375 lbs
314070	Pallet Fork Std	60” X 1 1/2”	4,000 LBS	413 lbs
314075	Pallet Fork Std	72” X 1 3/4”	4,000 LBS	493 lbs
