Blue Diamond PALLET FORKS - 5,000 LBS. CAPACITY HEAVY DUTY

Videos

Call for Price

Get a Quote Get Financed Value a Trade Contact Us Book a Demo Get Directions Get Directions Print

Overview

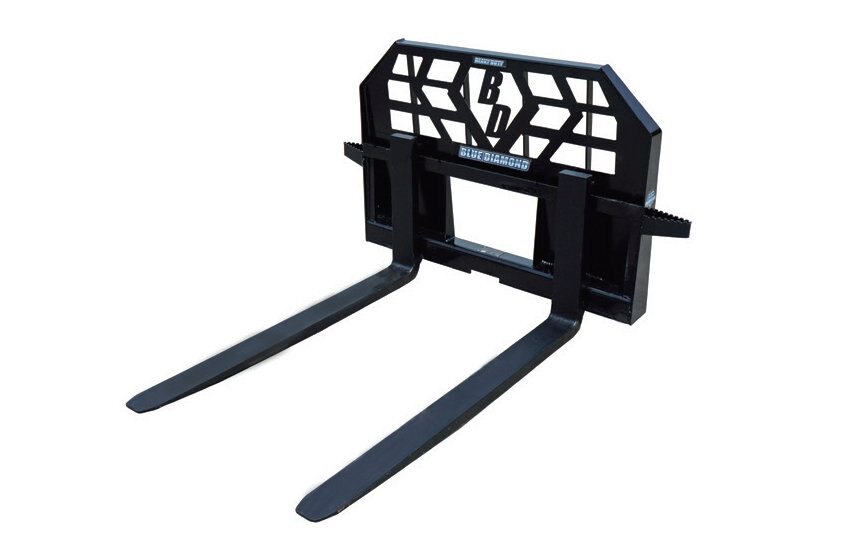

Blue Diamond® Heavy Duty Skid Steer Pallet Forks are rated for 5,000 lb. lift. Using an easy-to-see-through frame, the heavy duty pallet forks give added lift capacity for larger skid steers. The reinforced brick guard and quick attach area make it extremely durable for heavy use. 48” tines are standard, and 60” and 72″ are available. The powder-coated frames feature a riveted on serial tag that has the lift capacities in pounds and kilograms to meet job site requirements for lifting attachments. Rental Recommended.

Specifications

Model

PALLET FORKS - 5,000 LBS. CAPACITY HEAVY DUTY

Category Name

Attachments

Year

2026

Sale Type

New

Manufacturer

Blue Diamond

features & benefits

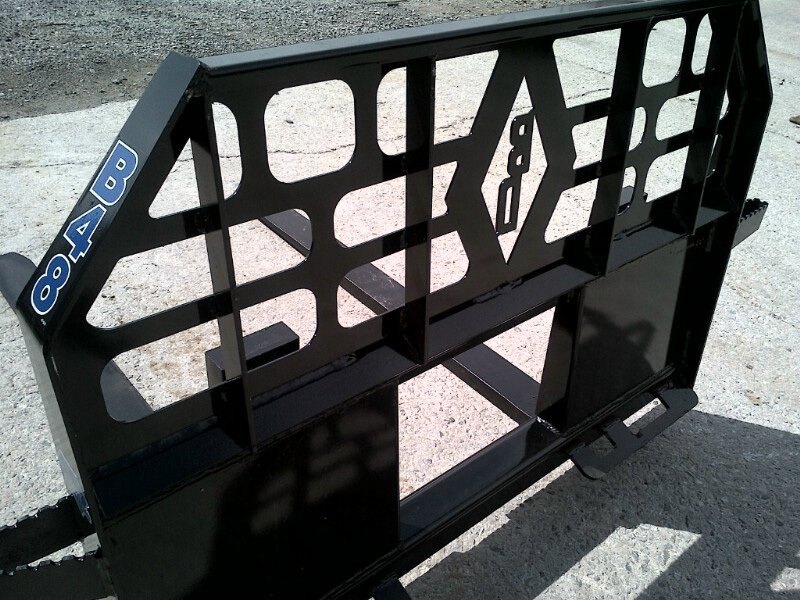

Reinforced brick guard
Added plate in quick-attach
5,000 lb. capacity
Side steps standard

technical data

Part Number	Model	Tine Size	Lift Capacity	Weight
314011	Pallet Fork, HD, W/Steps	48” X 1 1/2”	5,000 LBS	375 lbs
314012	Pallet Fork, HD, No Steps	48” X 1 3/4”	5,000 LBS	375 lbs
314013	Pallet Fork, HD, W/Steps	48” X 1 3/4”	5,000 LBS	375 lbs
314014	Pallet Fork, HD, W/Steps	60” X 1 3/4”	5,000 LBS	452 lbs
314085	Pallet Fork, HD, W/Steps	60” X 1 1/2”	5,000 LBS	420 lbs
314090	Pallet Fork, HD, W/Steps	72” X 1 3/4”	5,000 LBS	500 lbs
