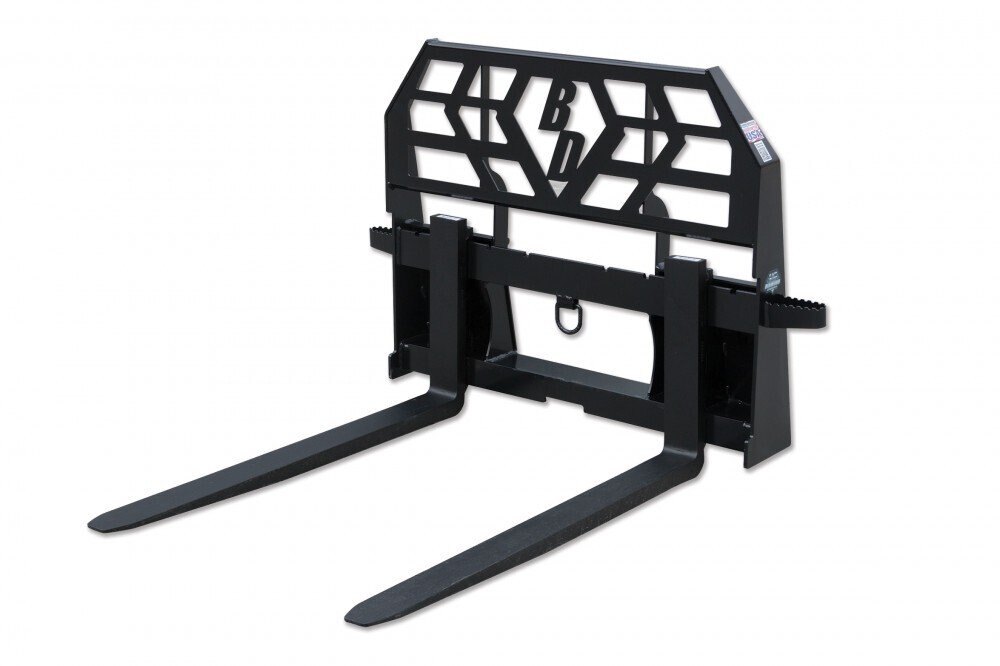

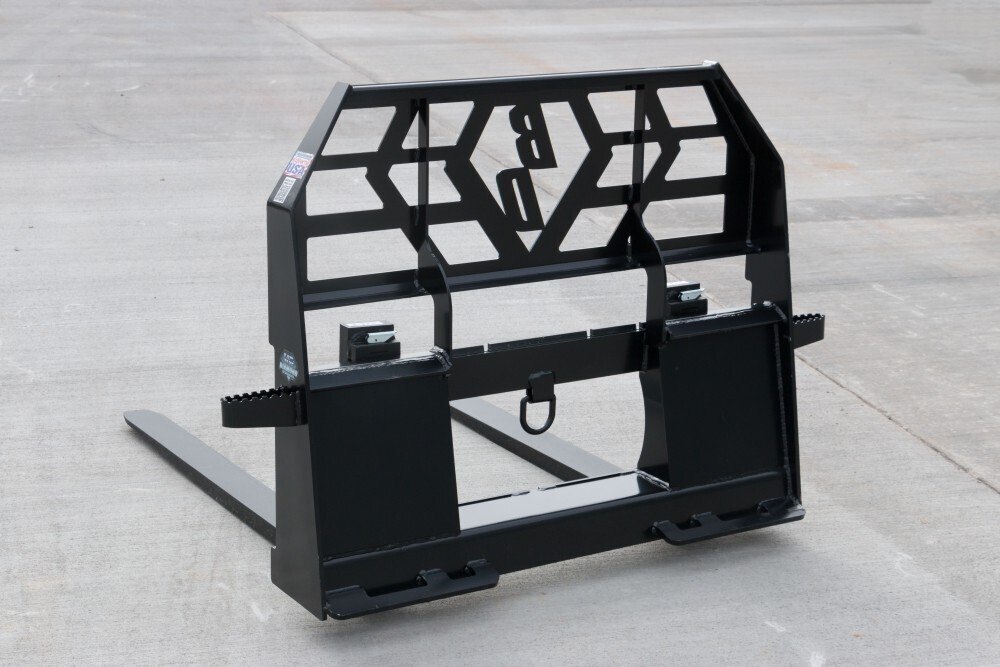

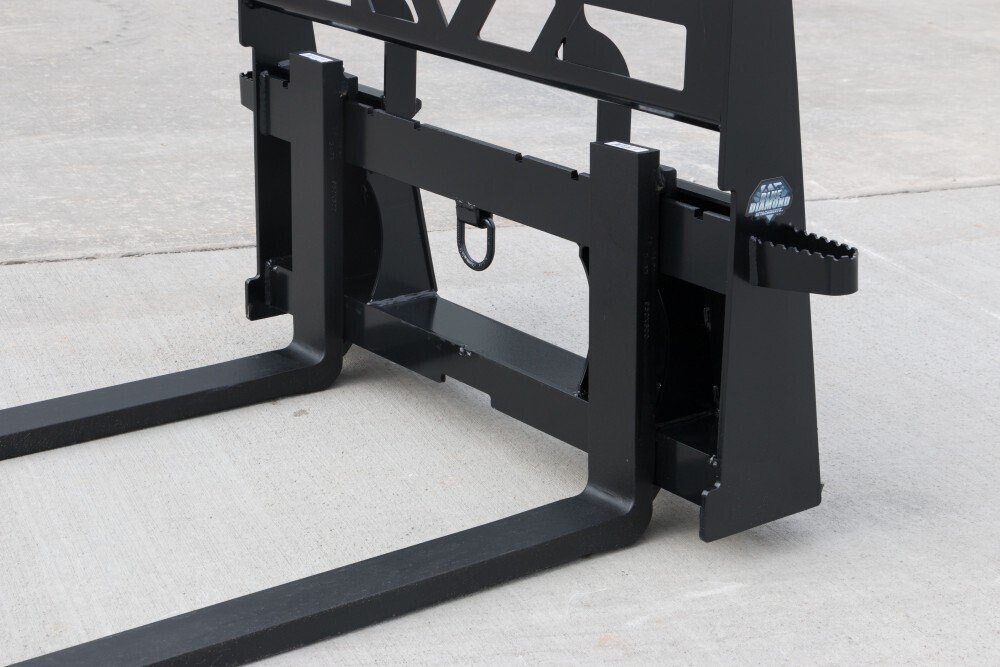

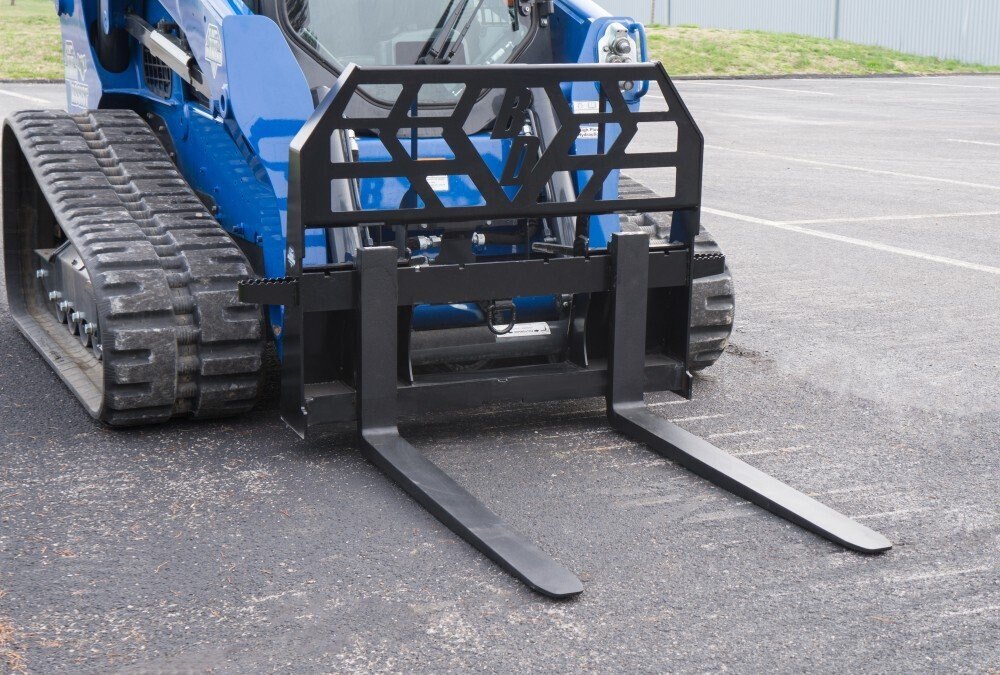

Blue Diamond PALLET FORKS – 6,000 LB CAPACITY TALL FRAME HEAVY DUTY

Call for Price
Overview

Our new Blue Diamond® Tall Frame Heavy Duty Pallet Forks are rated for 6,000 lbs lift. Featuring a heavier frame than our standard height Heavy Duty frame, these forks bring a few additional benefits. A heavy D-ring comes standard as do a high-visibility back rest and steps on each side. The back rest on this frame is set forward so the face of the backrest is flush with the front of the tines below. With a massive bottom frame and bracing, these forks are ready for whatever you’re lifting. They come standard with 48″ or 60″ adjustable tines.

Specifications
Model
PALLET FORKS – 6,000 LB CAPACITY TALL FRAME HEAVY DUTY
Category Name
Attachments
Year
2026
Sale Type
New
Manufacturer
Blue Diamond
features & benefits

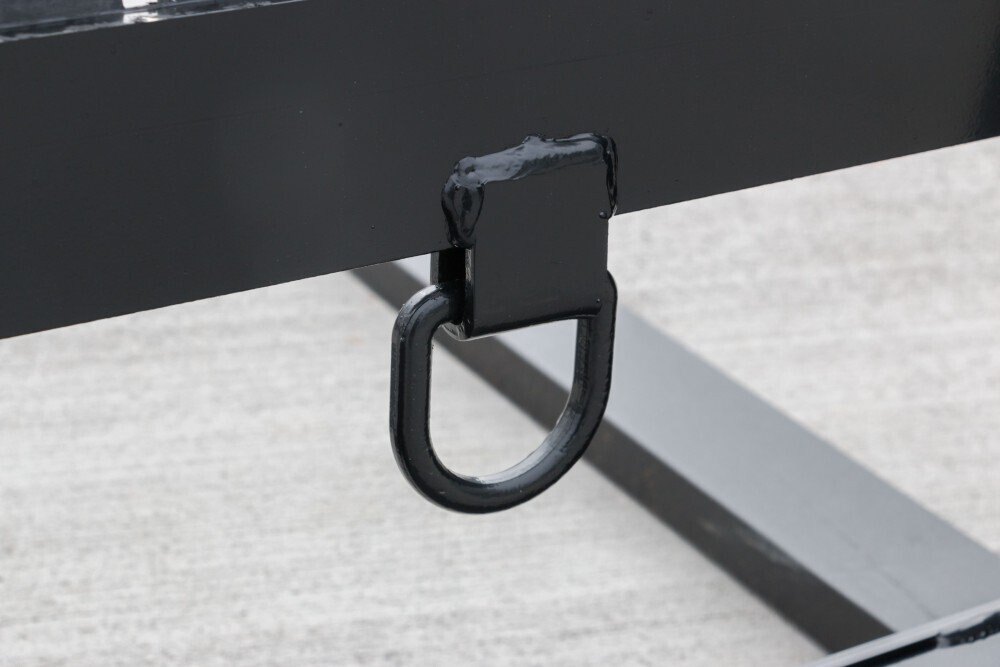

  • Includes D-ring
  • 4” carriage bar
  • Excellent visibility

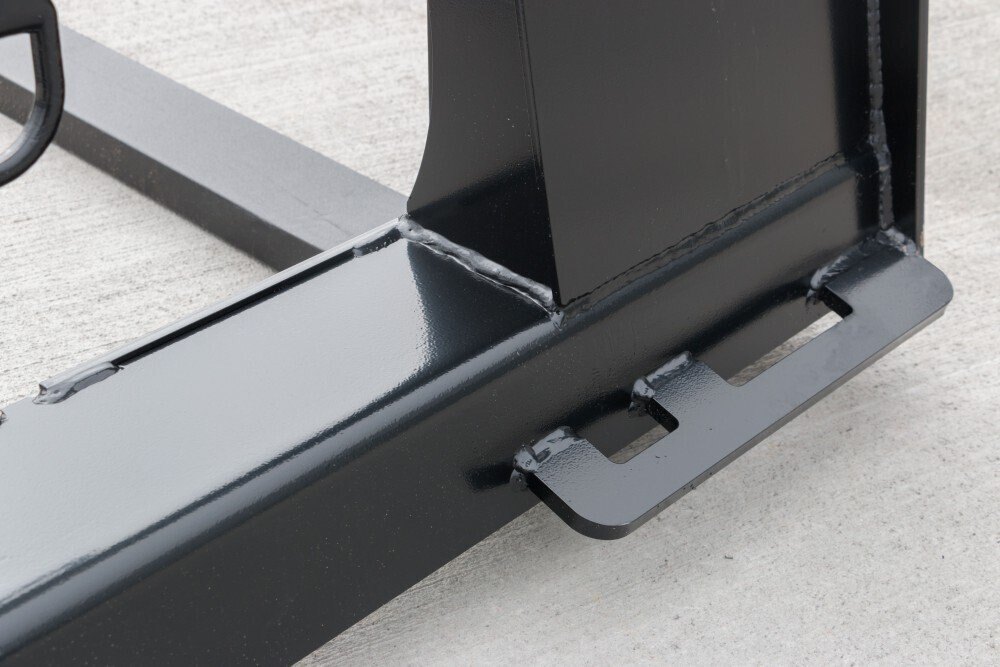

  • Side steps for easy access into your machine
  • 6,000 lb capacity
  • 45″ wide (Outside of tine measurement)
  • 38″ tall
technical data
Part Number Model Tine Size Lift Capacity Weight
314019 Pallet Fork, HD, W/Steps/D-Ring 48" x 1 3/4" 6,000 lbs 375 lbs
314020 Pallet Fork, HD, W/Steps/D-Ring 48" x 1 3/4" 5,500 lbs 486 lbs
314021 Pallet Fork, HD, W/Steps/D-Ring 60" x 1 3/4" 6,000 lbs 560 lbs
314022 Pallet Fork, HD, W/Steps/D-Ring 60" x 1 3/4" 5,500 lbs 260 lbs
314023 Pallet Fork, HD, W/Steps/D-Ring 72" x 1 3/4" 6,000 lbs 562 lbs
314024 Pallet Fork, HD, W/Steps/D-Ring 42" x 1 3/4" 6,000 lbs 481 lbs
