Blue Diamond HYDRAULIC PALLET FORKS – 4,000 LB CAPACITY

Name: Blue Diamond HYDRAULIC PALLET FORKS – 4,000 LB CAPACITY
Brand: Blue Diamond
Availability: OutOfStock

Call for Price

Get a Quote Get Financed Value a Trade Contact Us Book a Demo Get Directions Get Directions Print

Overview

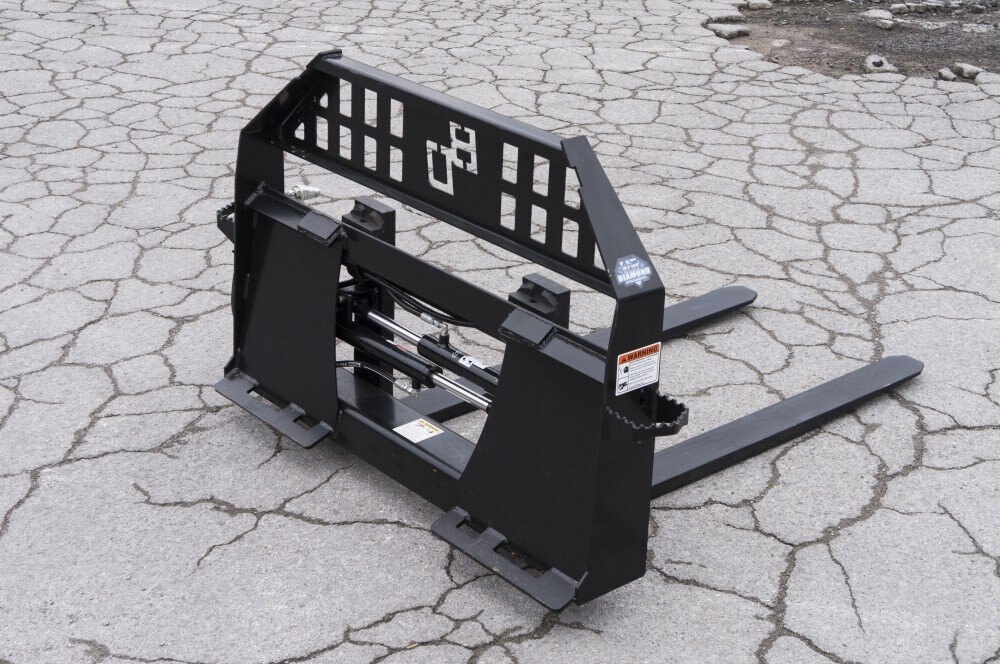

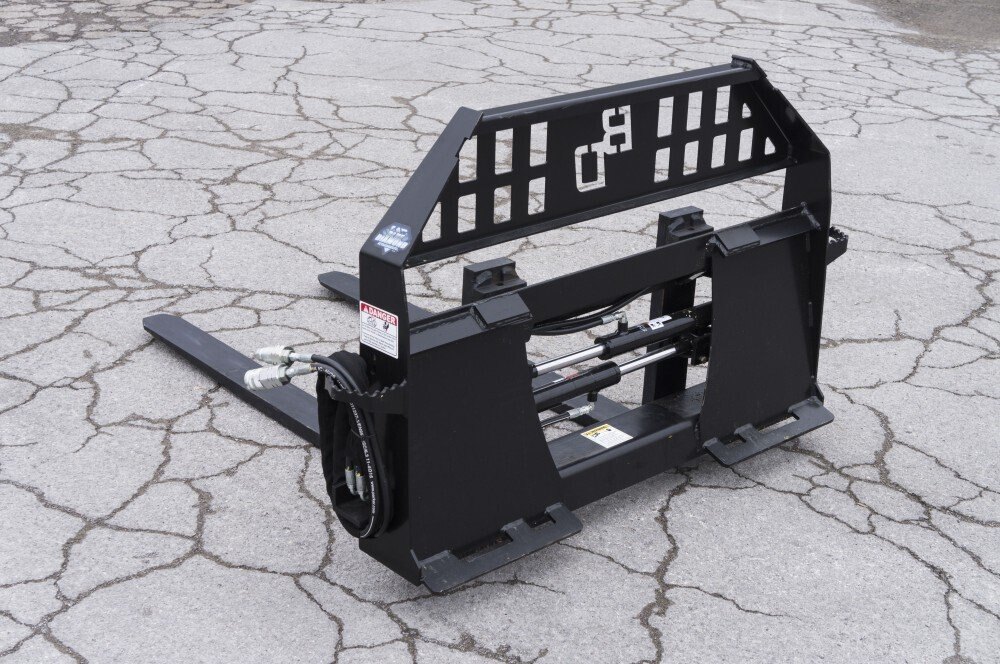

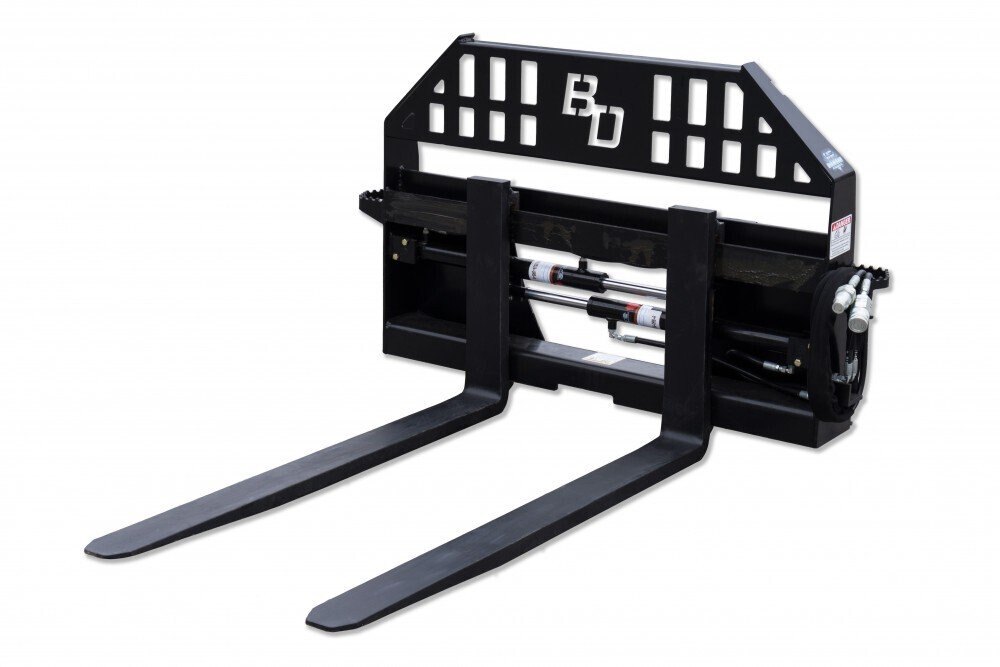

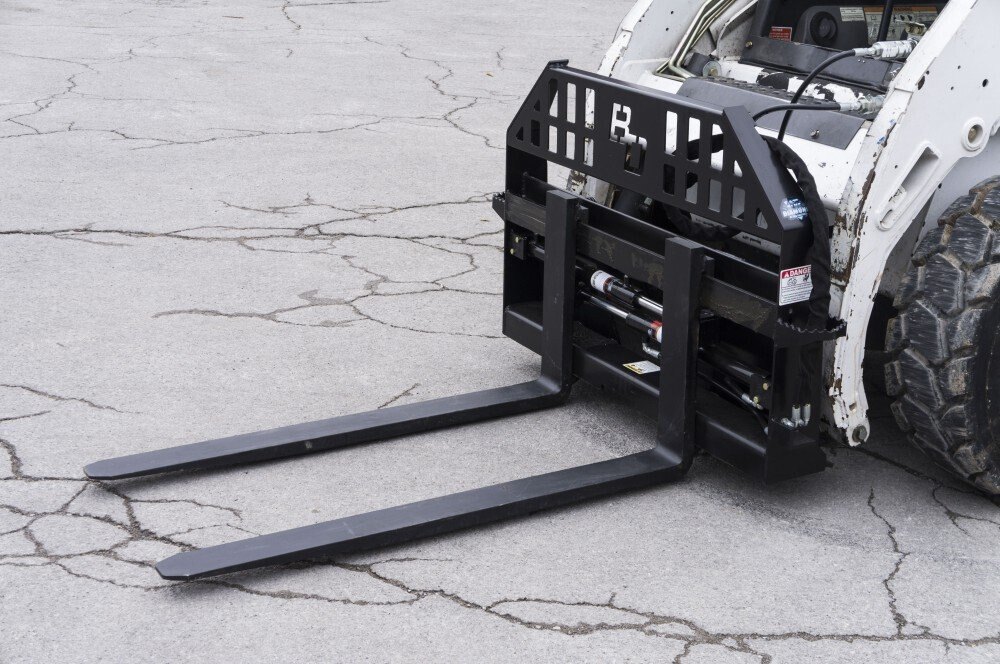

The Blue Diamond® Hydraulic-Adjusting Pallet Forks are a must-have attachment for any skid steer owner that moves or loads pallets, lumber, or nearly anything else. Save time by not having to jump out every time you need to adjust the tine width, increasing your productivity.

Specifications

Model

HYDRAULIC PALLET FORKS – 4,000 LB CAPACITY

Category Name

Attachments

Year

2026

Sale Type

New

Manufacturer

Blue Diamond

features & benefits

Forks adjust from 8” to 40” on center
Hydraulically adjustable forks
Available with 48”, 60”, or 72” Tines
Walk-through style frame
Excellent visibility
4,000 lb. capacity

technical data

Part Number	Model	Tine Size	Lift Capacity	Weight
114045	Pallet Fork, Hydraulic	48”	4,000 LBS	419 lbs
114047	Pallet Fork, Hydraulic	60”	4,000 LBS	460 lbs
114050-2	Pallet Fork, Hydraulic	48”	6,000 LBS	624 lbs
114055-2	Pallet Fork, Hydraulic	60”	6,000 LBS	672 lbs
114057-2	Pallet Fork, Hydraulic	72”	6,000 LBS	700 lbs
