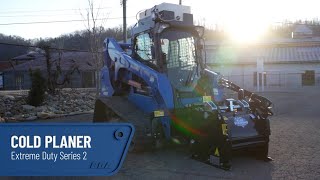

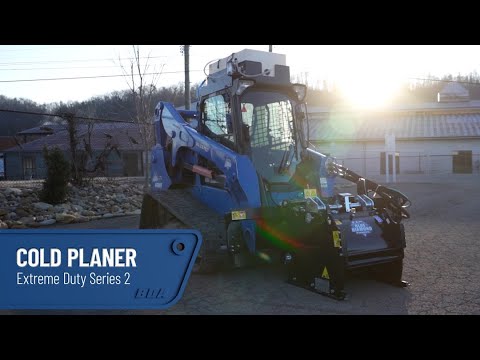

Blue Diamond COLD PLANER EXTREME DUTY SERIES 2

Videos
Call for Price
Overview

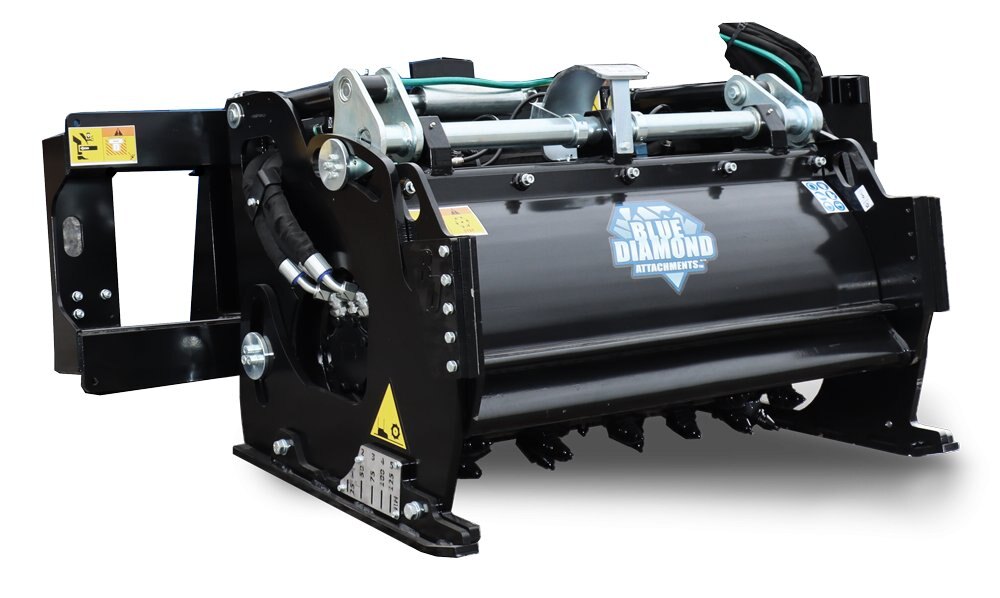

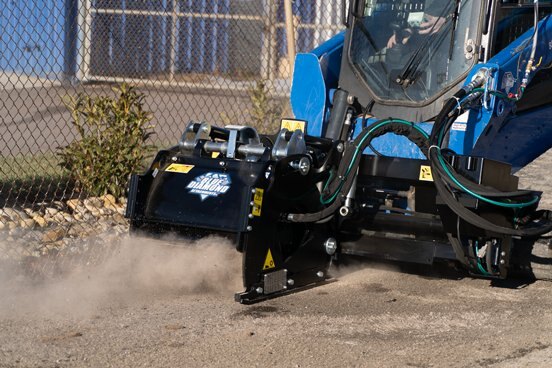

The Blue Diamond® Extreme Duty Series 2 Cold Planer is self-leveling and designed for removing the entire layer of asphalt or cement in preparation for trenching or for milling deteriorated sections for later resurfacing. Created to mill pre-set sections on hard and compact surfaces such as asphalt and cement, they allow the possibility to reuse milled material for backfilling trenches.

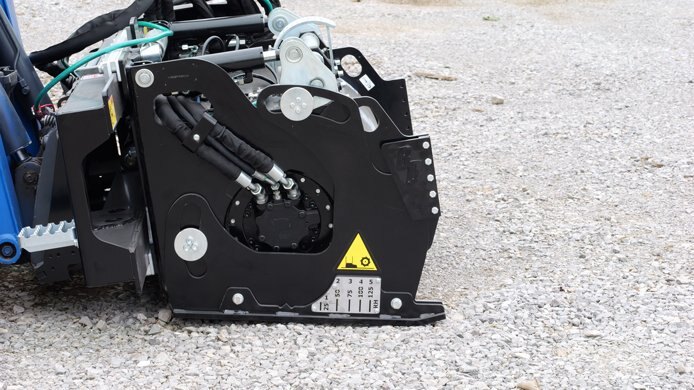

Thanks to the self-leveling system on the working surface, a constant milling depth is guaranteed under all conditions. The side slides of the cold planer automatically align themselves to the milling surface on which they rest, providing maximum stability.

Specifications
Model
COLD PLANER EXTREME DUTY SERIES 2
Category Name
Attachments
Year
2026
Sale Type
New
Manufacturer
Blue Diamond
features & benefits
  • 14” to 48” grinding widths
  • 4.3” to 6.7” cutting depths

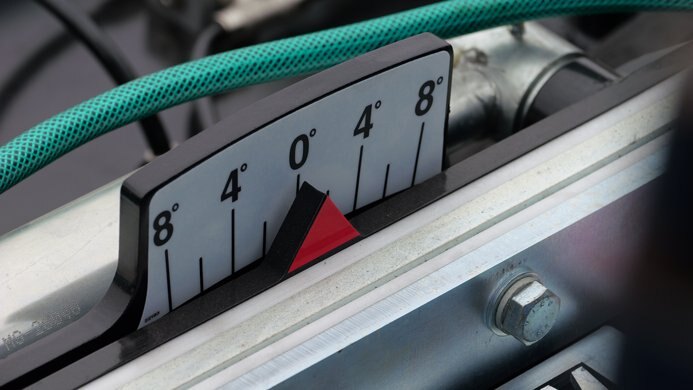

  • 8° tilt on all models

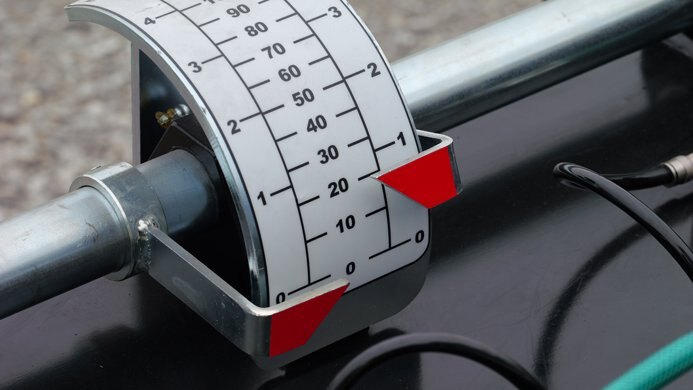

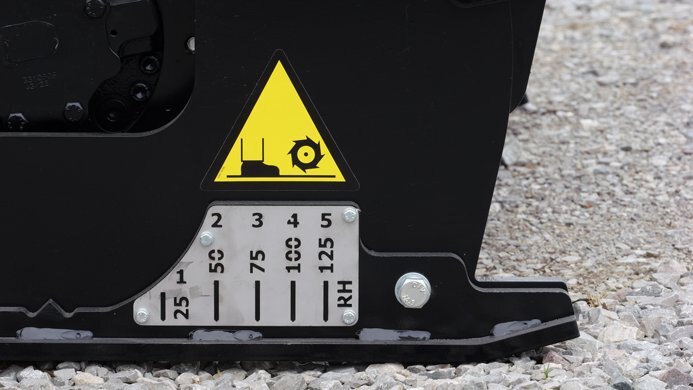

  • Independent depth adjustment on right or left
  • Milled material remains in work area
  • Floating transverse tilt with damper
  • Electronic side shift will move planer 25.5” from center to right (operator view)

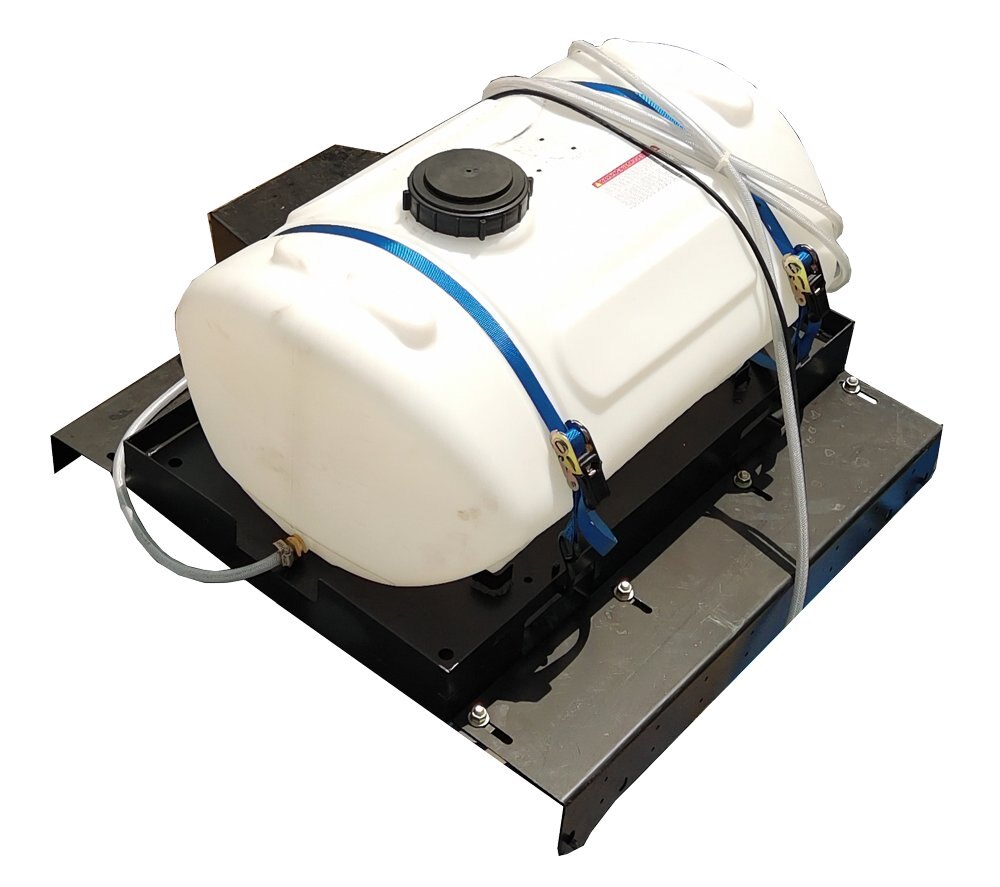

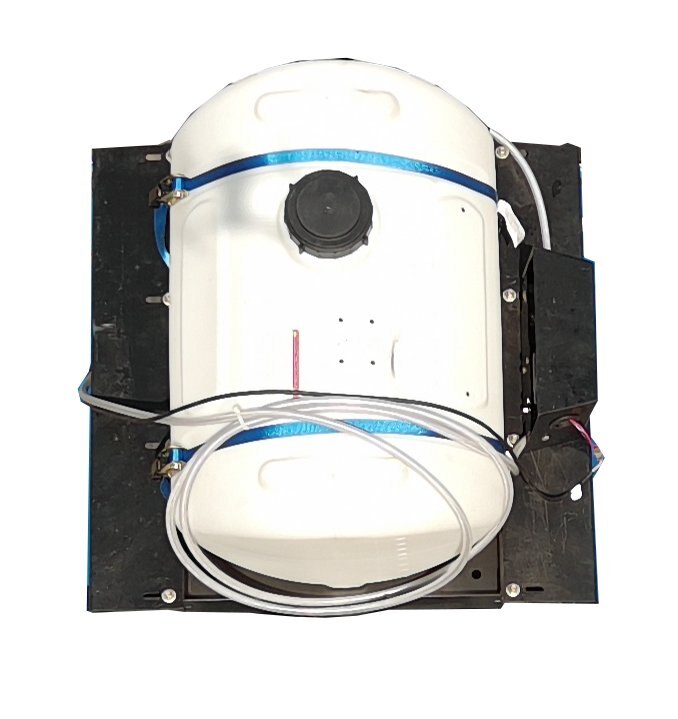

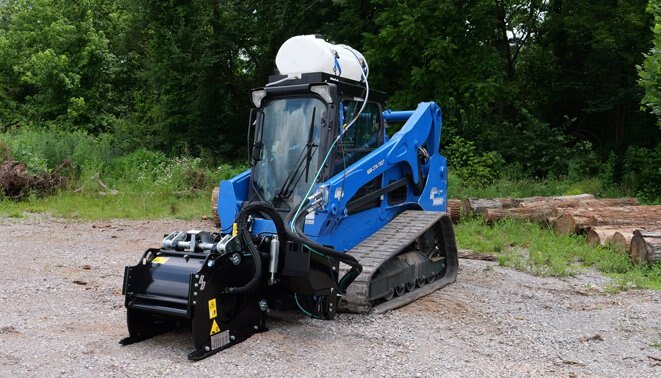

  • Pressurized water kit available - 40-gallon rooftop

APPLICATION INCLUDE:

  • Removing asphalt surfaces prior to overlay
  • Widening shoulders
  • Repairing potholes
  • Restoring drainage lines
technical data
Part Number Model Cutting Depth Mix-Max Flow Max Pressure Weight
160950 14” Extreme Duty Series 2, Low Flow 4.3" 12-21 GPM 3,625 PSI 1,350 lbs
160951 16” Extreme Duty Series 2, Low Flow 5.9" 17-30 GPM 3,625 PSI 1,450 lbs
160952 18” Extreme Duty Series 2, High Flow 6.7" 27-40 GPM 4,500 PSI 1,900 lbs
160953 20” Extreme Duty Series 2, High Flow 6.7" 27-40 GPM 4,500 PSI 2,000 lbs
160954 24” Extreme Duty Series 2, High Flow 6.7" 27-40 GPM 4,500 PSI 2,100 lbs
160955 30” Extreme Duty Series 2, High Flow 6.7" 29-45 GPM 4,500 PSI 2,300 lbs
160956 40” Extreme Duty Series 2, High Flow 5" 29-45 GPM 4,500 PSI 2,400 lbs
160957 48” Extreme Duty Series 2, High Flow 5" 32-50 GPM 4,500 PSI 2,660 lbs
360602 Extreme Duty Series 2 Pressurized Water Kit 40 Gallon 70 lbs
