ID # 67180321

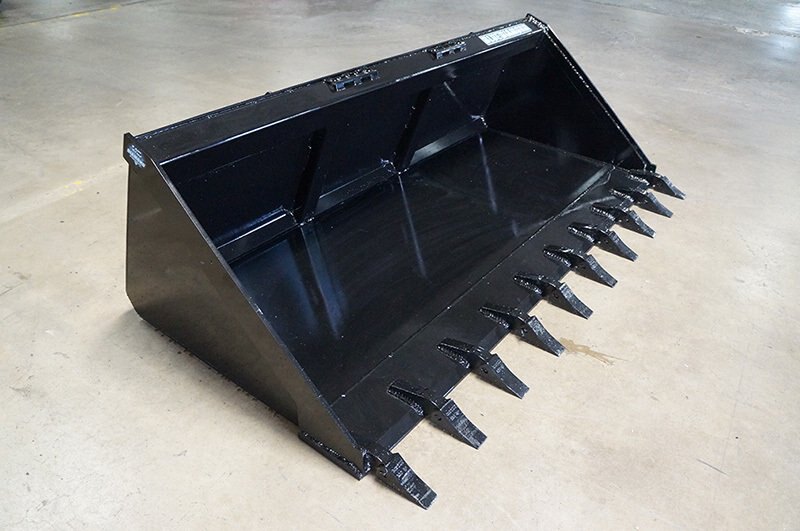

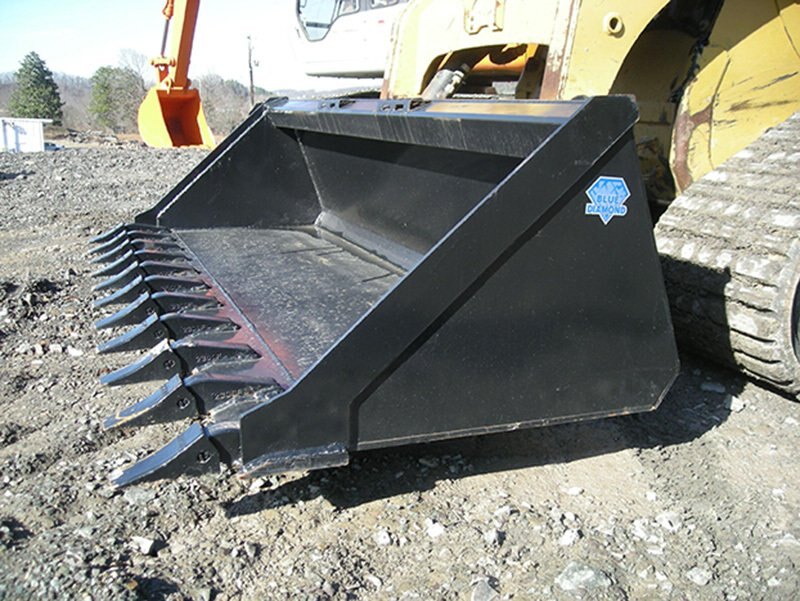

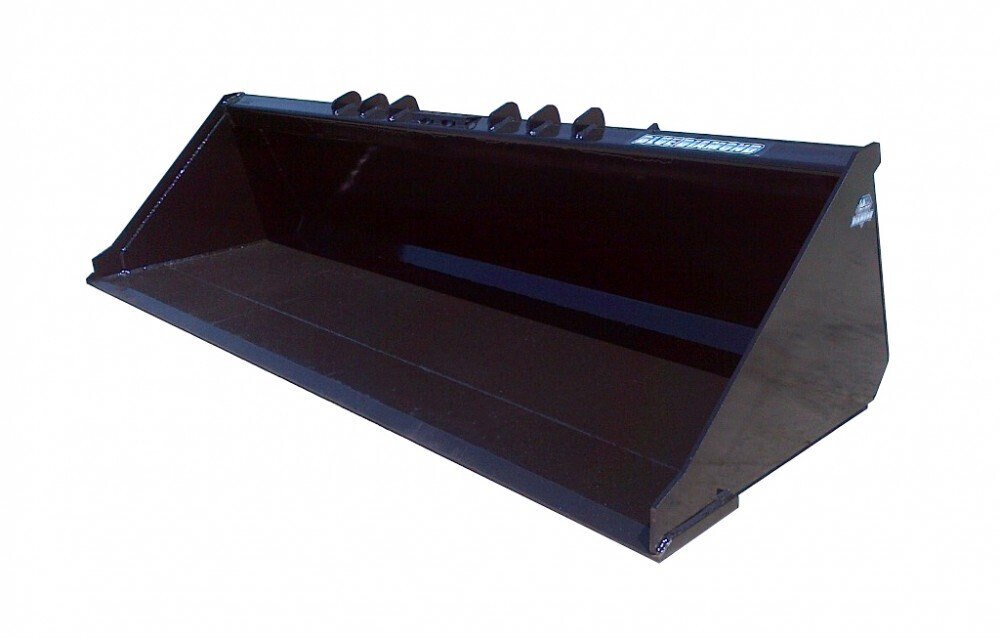

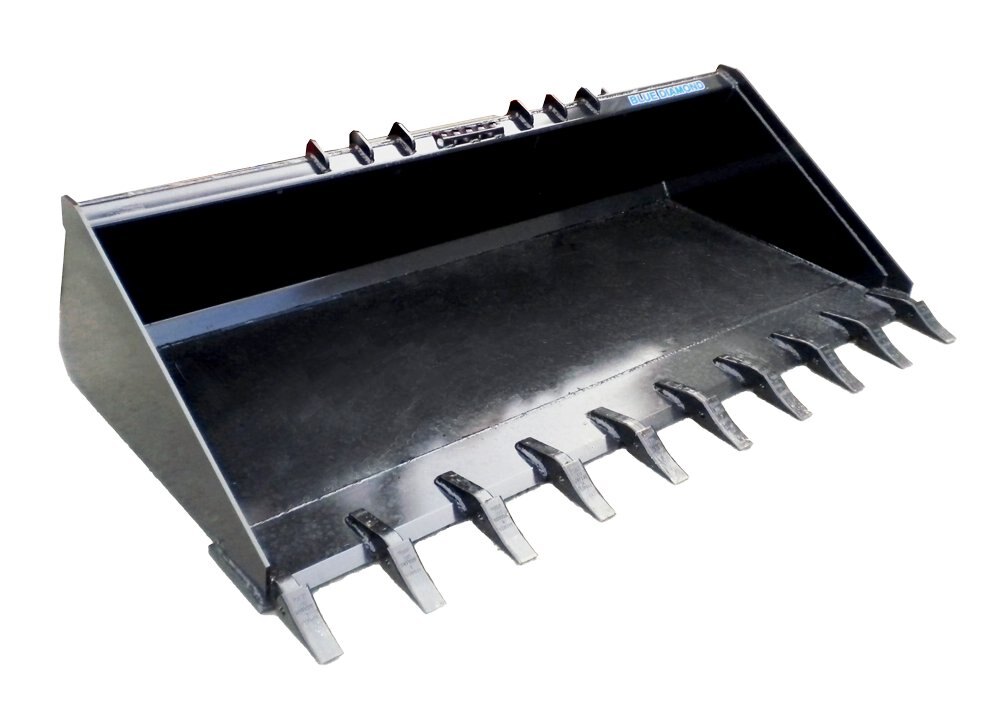

Blue Diamond LOW PROFILE – SEVERE DUTY BUCKET

  • Blue Diamond LOW PROFILE – SEVERE DUTY BUCKET
  • Blue Diamond LOW PROFILE – SEVERE DUTY BUCKET
  • Blue Diamond LOW PROFILE – SEVERE DUTY BUCKET
  • Blue Diamond LOW PROFILE – SEVERE DUTY BUCKET
  • Blue Diamond LOW PROFILE – SEVERE DUTY BUCKET
  • Blue Diamond LOW PROFILE – SEVERE DUTY BUCKET
  • Blue Diamond LOW PROFILE – SEVERE DUTY BUCKET
  • Blue Diamond LOW PROFILE – SEVERE DUTY BUCKET
  • Blue Diamond LOW PROFILE – SEVERE DUTY BUCKET
  • Blue Diamond LOW PROFILE – SEVERE DUTY BUCKET
Call for Price
 Get a Quote  Get Financed  Value a Trade  Contact Us  Book a Demo   Get Directions  Print
Overview

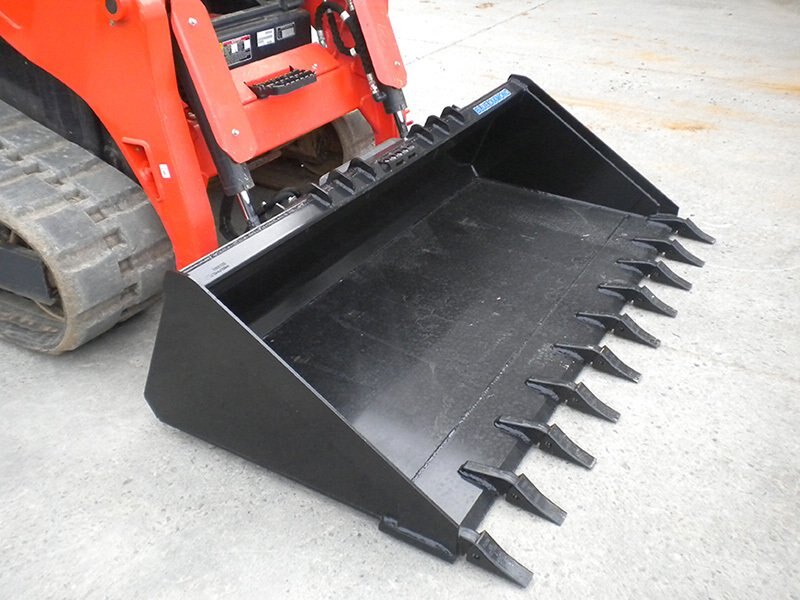

The Blue Diamond® Severe Duty Bucket is among the heaviest duty skid steer buckets on the market. It is available in 60”, 72”, 78”, 84”, or 90” widths, low profile, and/or, high capacity. It is constructed from heavy gauge steel consisting of a 1/2” bottom, double-layer 1/4” back, and a 1” x 8” cutting blade.
Specifications
Model
LOW PROFILE – SEVERE DUTY BUCKET
Category Name
Attachments
Year
2026
Sale Type
New
Manufacturer
Blue Diamond
features & benefits
  • 1/2″ floor

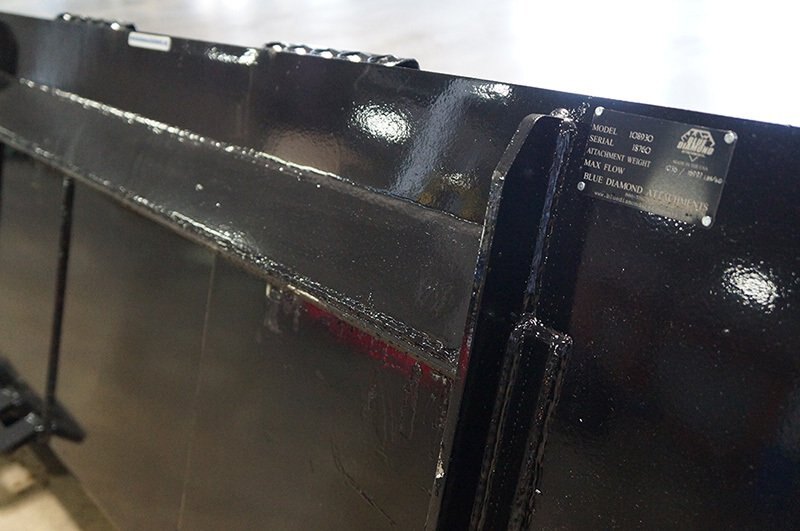

  • Double layer 1/4″ back

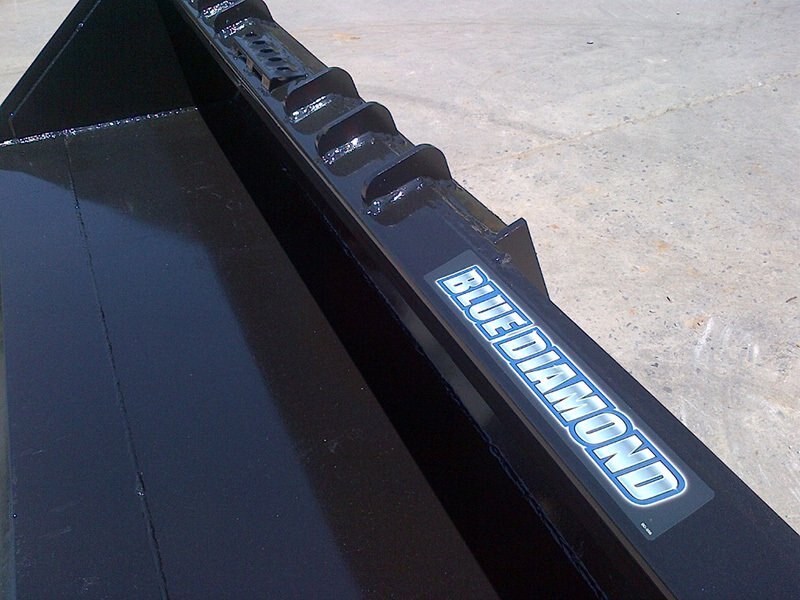

  • Heavily gusseted quick attach

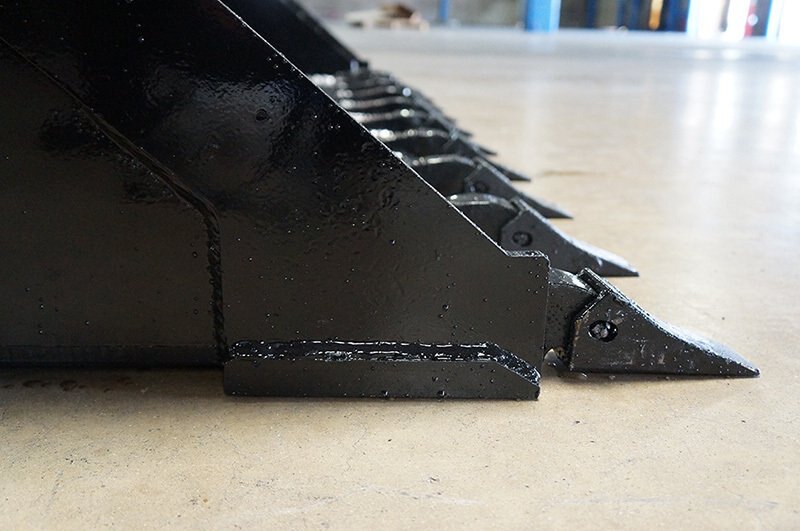

  • Tooth buckets use a 1″ x 8″ cutting edge
  • Available in low profile, long bottom, and high capacity
  • Low profile: 19” tall, 29” deep
  • Long bottom: 19” tall, 35” deep
technical data
Part Number Model Struck Capacity Weight
108250 60” Low Profile, Severe Duty, Smooth     10 cu ft     626 lbs
108253 60” Low Profile, Severe Duty, Tooth     10 cu ft        637 lbs
108260 66" Low Profile, Severe Duty, Smooth     10.4 cu ft     650 lbs
108263 66" Low Profile, Severe Duty, Tooth     10.4 cu ft     675 lbs
108270     72" Low Profile, Severe Duty, Smooth     11 cu ft     672 lbs
108273     72" Low Profile, Severe Duty, Tooth     11 cu ft     724 lbs
108275     78" Low Profile, Severe Duty, Smooth     12 cu ft     690 lbs
108277     78" Low Profile, Severe Duty, Tooth     12 cu ft     757 lbs
108280     84" Low Profile, Severe Duty, Smooth 12.9 cu ft     738 lbs
108282 84" Low Profile, Severe Duty, Tooth     12.9 cu ft     813 lbs
108283     90" Low Profile, Severe Duty, Tooth     18.8 cu ft     925 lbs
108284 72" Low Profile, Severe Duty, Smooth-Long Bottom     15.2 cu ft     732 lbs
108285     72" Low Profile, Severe Duty, Tooth-Long Bottom     15.2 cu ft     774 lbs
108286 78" Low Profile, Severe Duty, Smooth-Long Bottom     16.5 cu ft     759 lbs
108287     78" Low Profile, Severe Duty, Tooth-Long Bottom     16.5 cu ft     846 lbs
108290     84" Low Profile, Severe Duty, Smooth-Long Bottom     17.7 cu ft     853 lbs
108293     84" Low Profile, Severe Duty, Tooth-Long Bottom     17.5 cu ft     892 lbs
108296     90" Low Profile, Severe Duty, Tooth-Long Bottom     18.8 cu ft     938 lbs
literature
Name Link
Brochure Download
