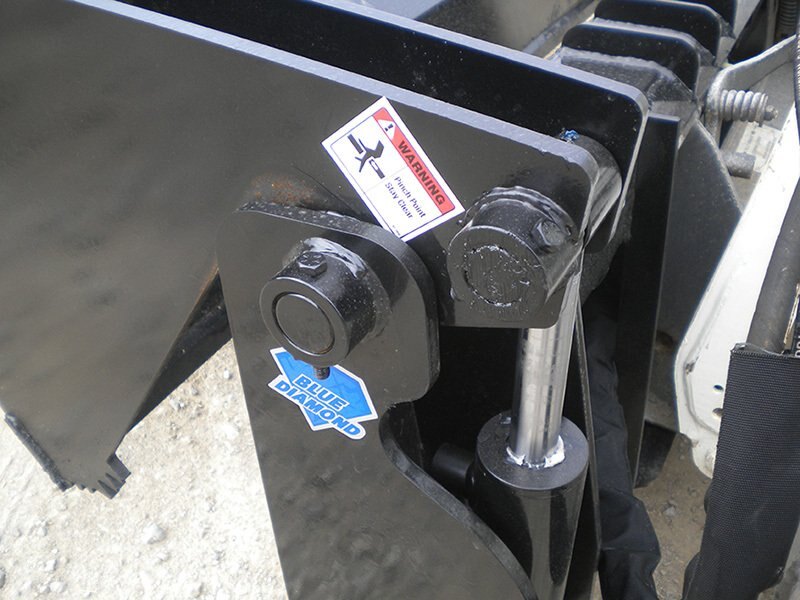

Blue Diamond BUCKET — 4-IN-1

Videos
Call for Price
Overview

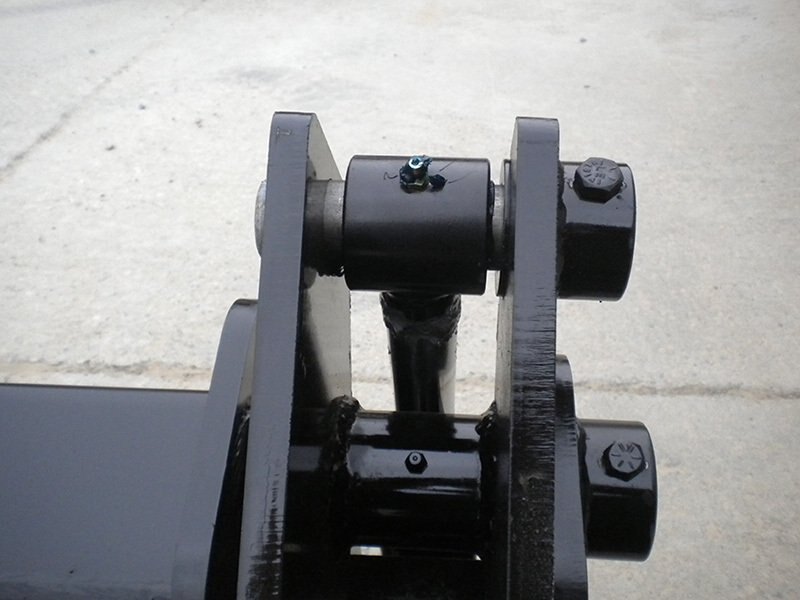

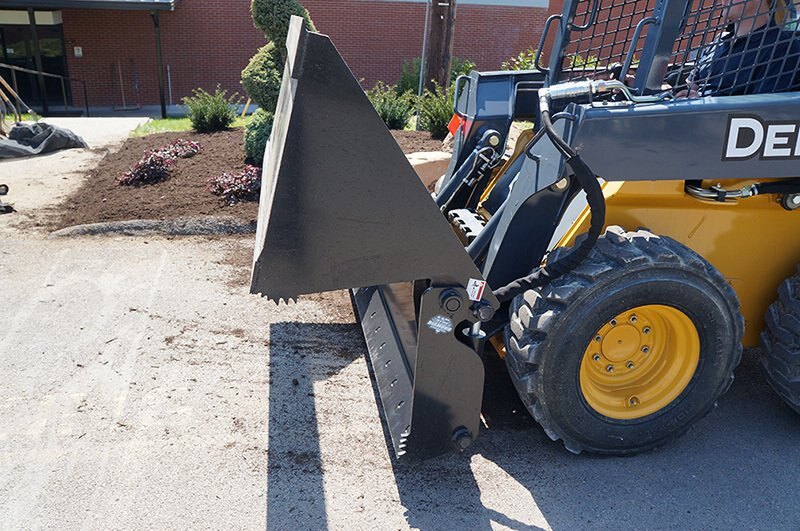

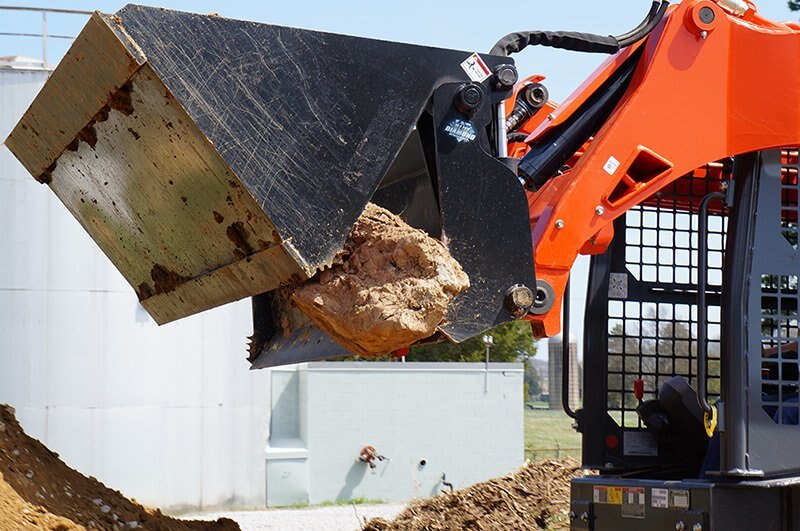

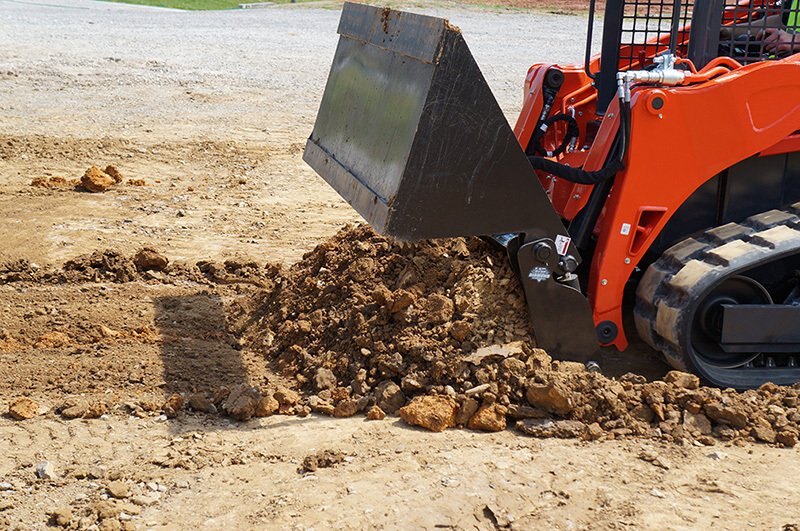

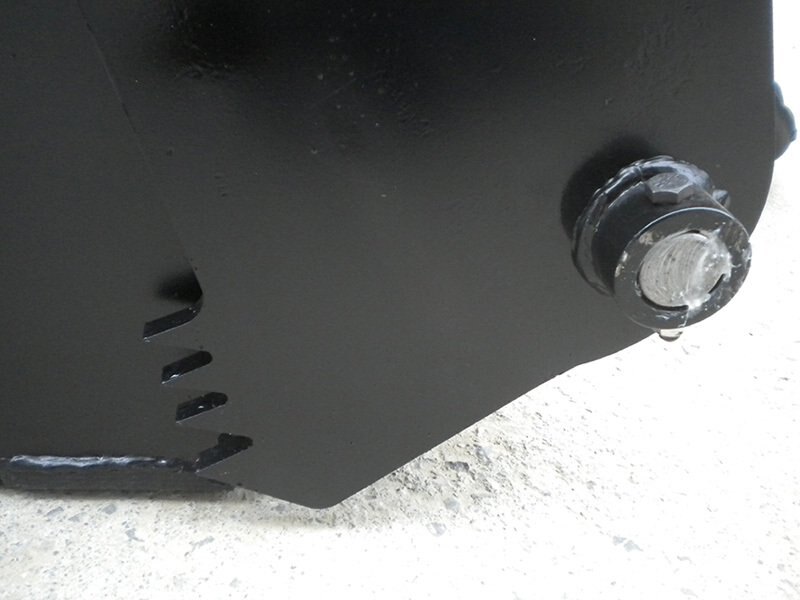

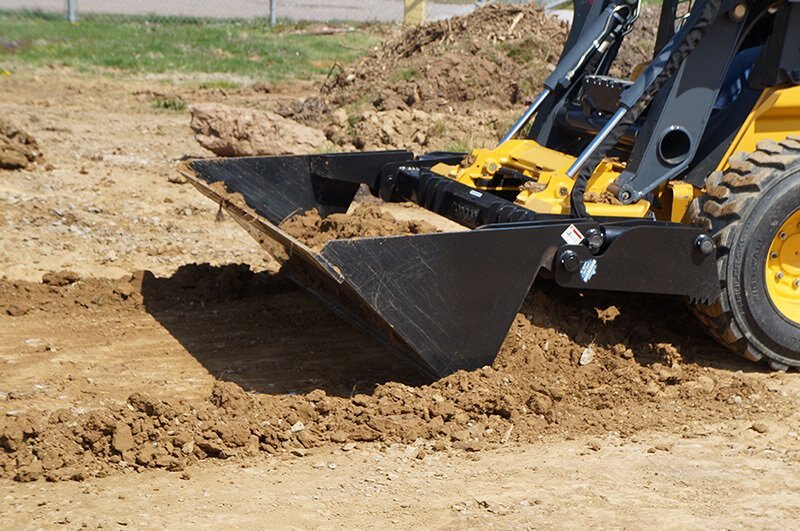

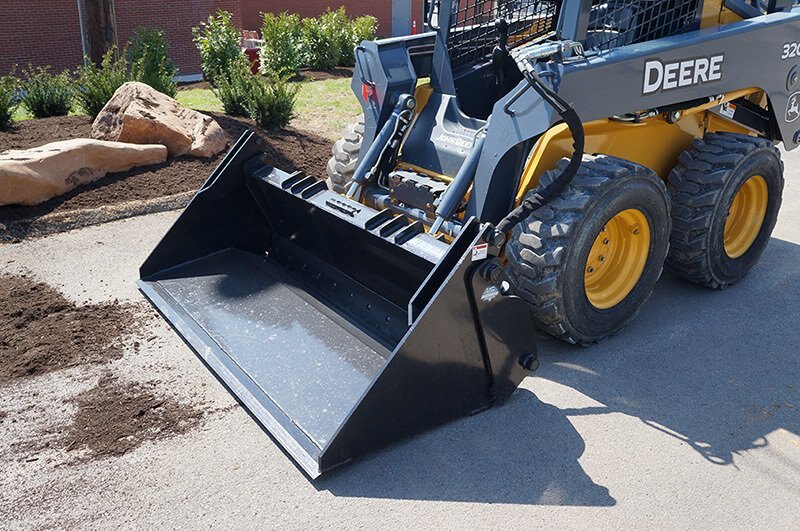

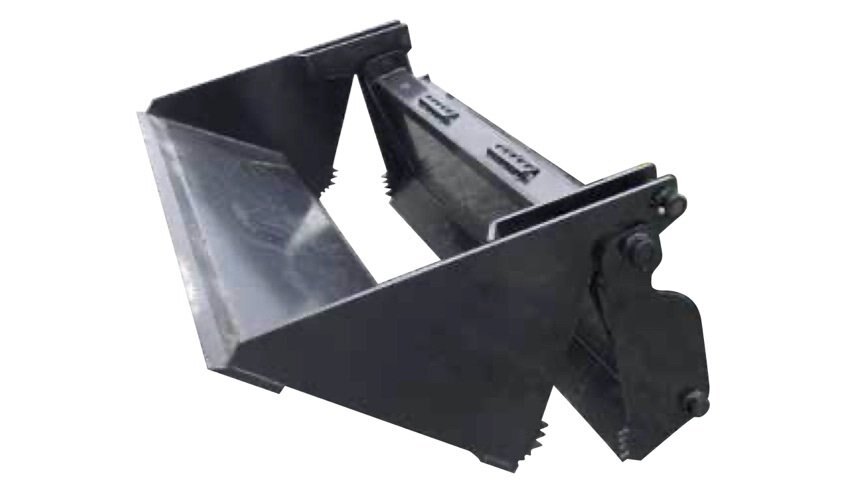

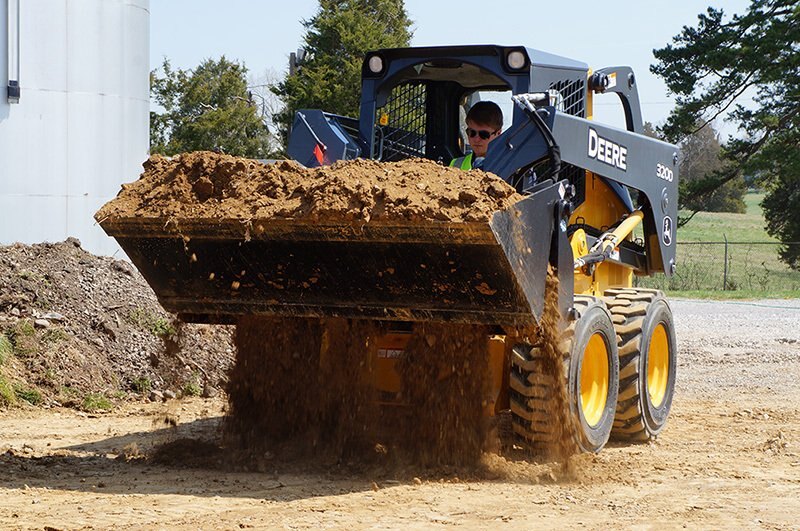

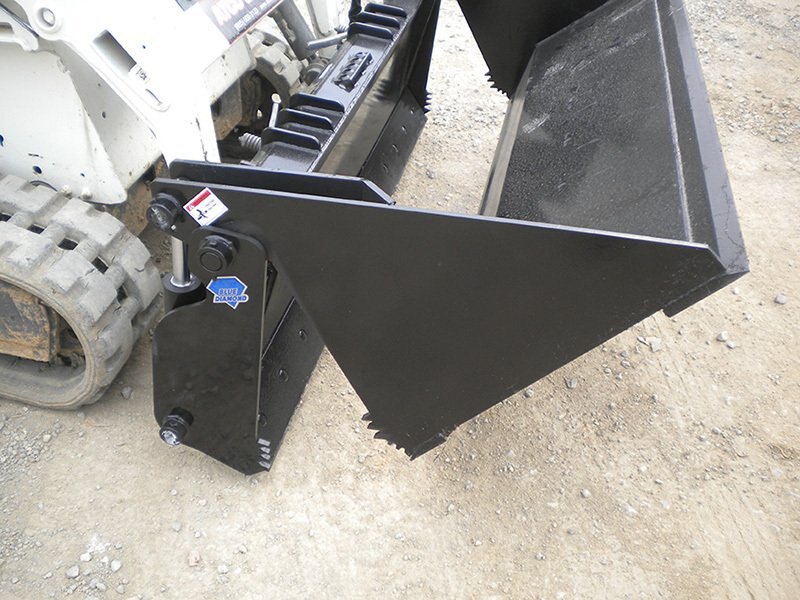

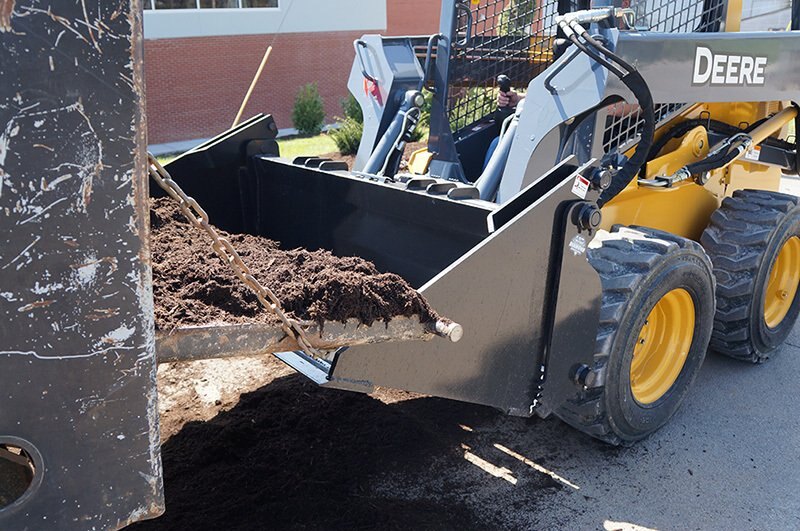

The Blue Diamond® Skid Steer 4 in 1 Bucket has set the standard with this extremely durable attachment. It will make a skid steer or compact track loader into a very versatile machine. It can be used as a grapple for moving logs or debris, push dirt with the blade like a dozer, dig with the bucket, or back drag with the open bucket like a box blade. It uses 2 powerful cylinders and can be greased on all pivot points. Pilot operated check valve to control drifting is available. Other options available are teeth or a bolt-on edge. The hose routing keeps the hoses out of the pinch point, and the oversize pins and bushings with grease fittings will keep this attachment functioning effectively for many years! Rental Recommended.

Specifications
Model
BUCKET — 4-IN-1
Category Name
Attachments
Year
2026
Sale Type
New
Manufacturer
Blue Diamond
features & benefits

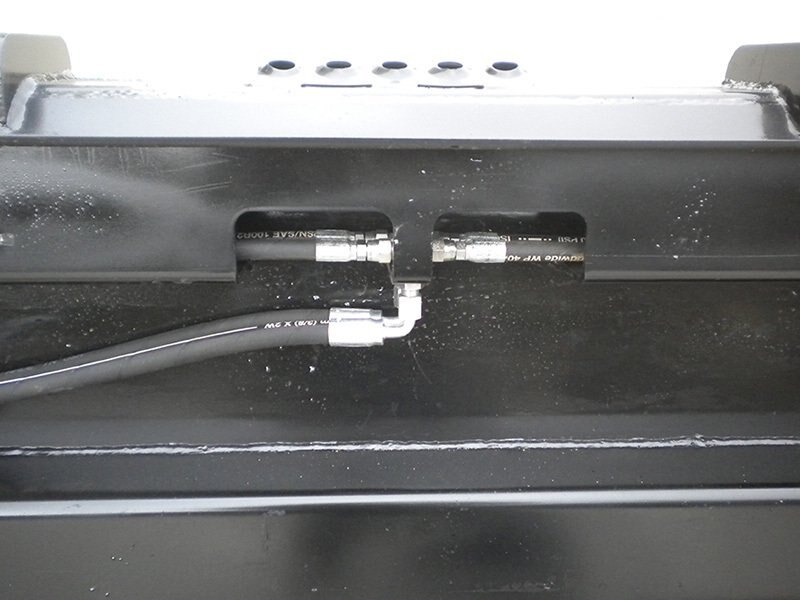

  • Protected hoses

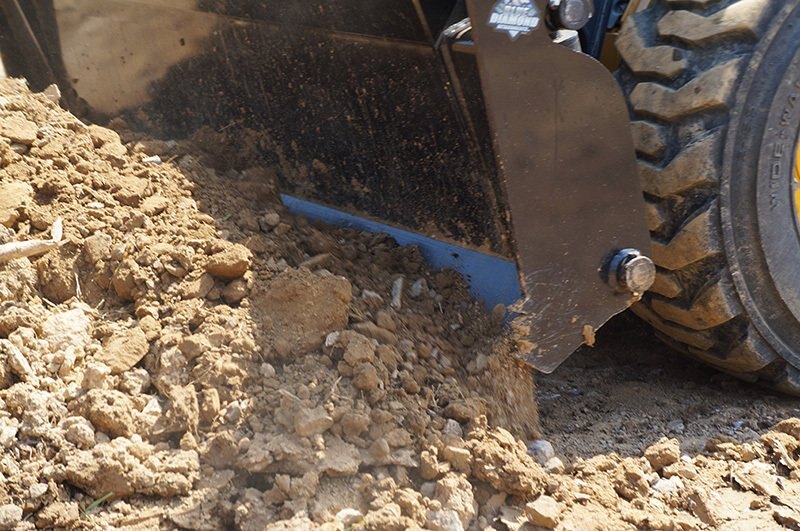

  • Standard bolt-on edge on dozer portion
  • Front bolt-on edge available

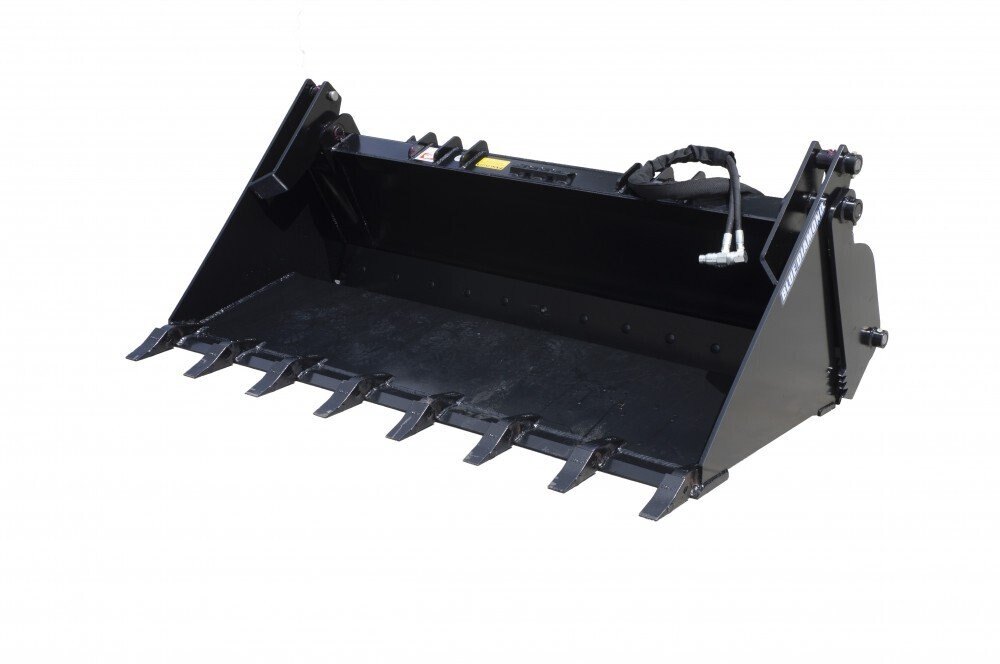

  • Weld on shanks and teeth available
technical data
Part Number Model Struck Capacity Weight
108780 66" 4-in-1, W/Smooth Edge 13.9 cu ft 862 lbs
108785 72" 4-in-1, W/Smooth Edge 15.2 cu ft 908 lbs
108790 78" 4-in-1, W/Smooth Edge 16.5 cu ft 979 lbs
108795 84" 4-in-1, W/Smooth Edge 17.7 cu ft 1,004 lbs
108776 60" 4-in-1, W/Teeth 12 cu ft 855 lbs
108781 66" 4-in-1, W/Teeth 13.9 cu ft 750 lbs
108786 72" 4-in-1, W/Teeth 15.2 cu ft 981 lbs
108791 78" 4-in-1, W/Teeth 16.5 cu ft 959 lbs
108796 84" 4-in-1, W/Teeth 17.7 cu ft 932 lbs
