Blue Diamond AUGER MOUNT - TELESCOPIC

Name: Blue Diamond AUGER MOUNT - TELESCOPIC
Brand: Blue Diamond
Availability: OutOfStock

Call for Price

Get a Quote Get Financed Value a Trade Contact Us Book a Demo Get Directions Get Directions Print

Overview

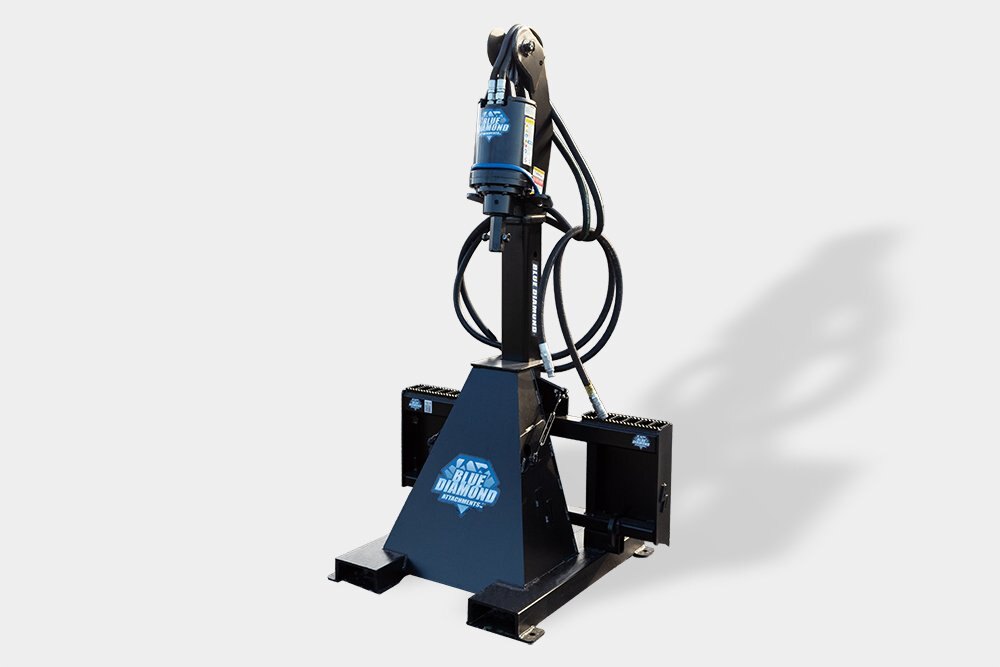

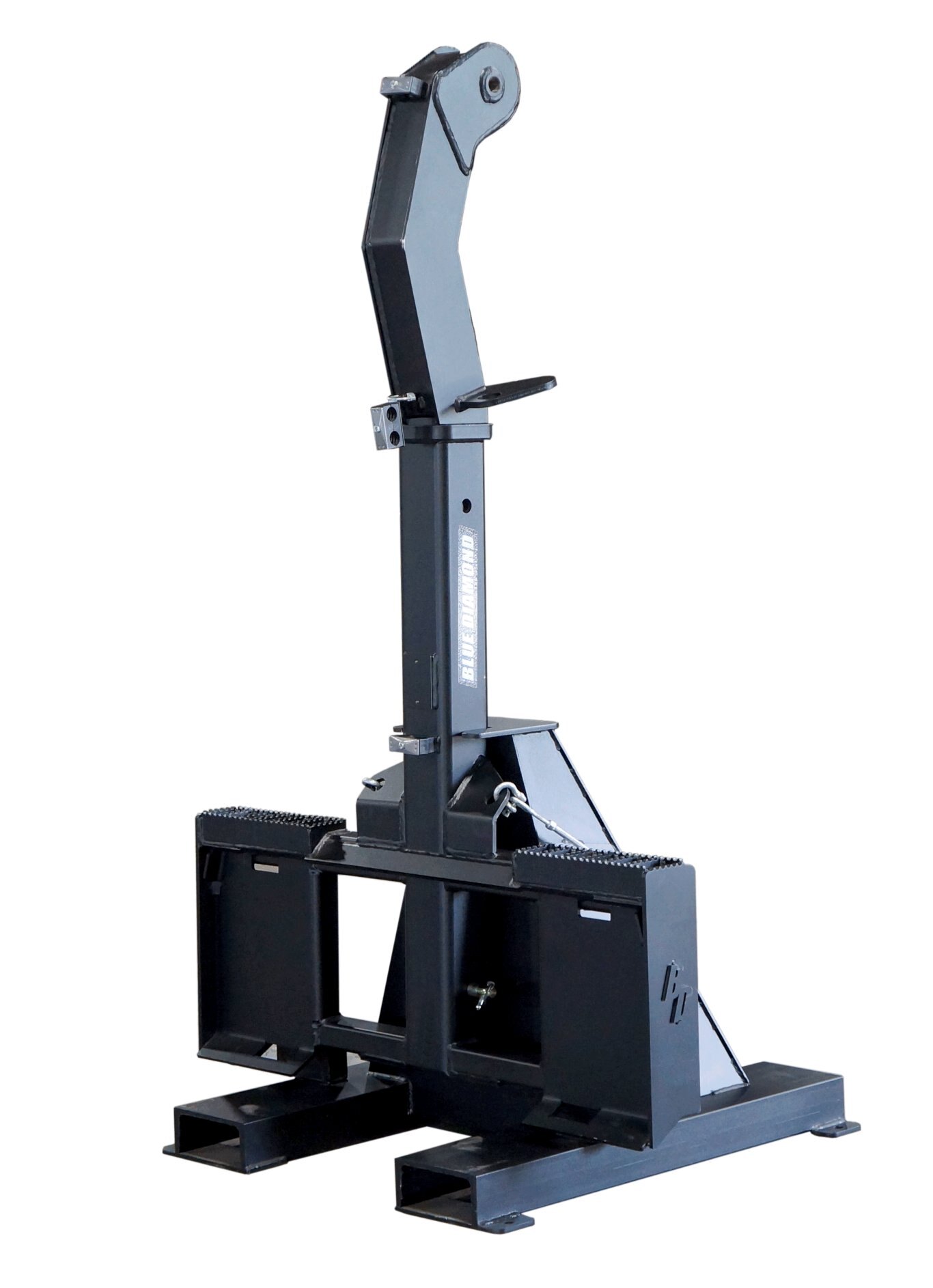

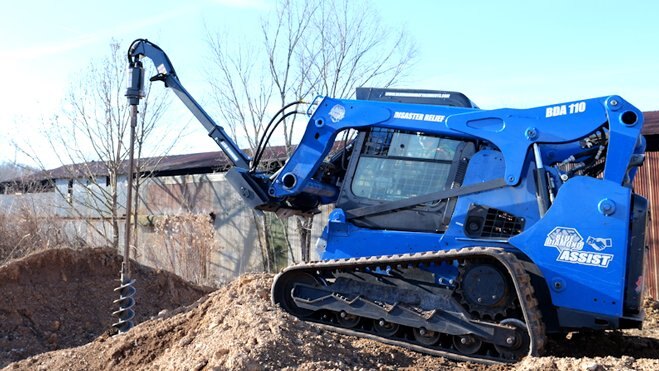

The Blue Diamond® Attachments telescopic auger mount for skid steers offers increased reach for added drilling depth or helical pile installation. These extension mounts use only the highest quality steel and strict quality control. These telescopic extension mounts have a retracted length of 78” and are extendable by 36”. Specifically designed for the Extreme Duty Series 2 auger drive for skid steers and compact track loaders.

Specifications

Model

AUGER MOUNT - TELESCOPIC

Category Name

Attachments

Year

2026

Sale Type

New

Manufacturer

Blue Diamond

features & benefits

78” retracted length
Extendable by 36”
Minimum Skid Steer rated operating capacity 1800 lbs
Maximum auger drive torque 7000 ft/lbs
Maximum auger bit weight 220 lbs

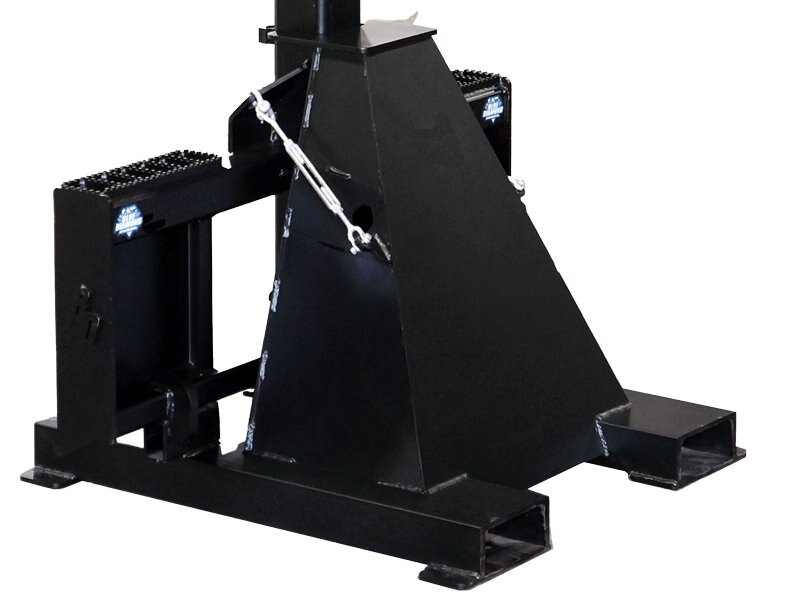

Optional Transport Stand
Hose sets have pressure gauge option
Auger drive, hoses, and stand are not included with mount

technical data

Part Number	Model	Weight
105780	Mount	359 lbs
105781	Optional Transport Stand	255 lbs
205788	14’ Hose Set 1/2” Couplers	20 lbs
205789	14’ Hose Set 3/4” Couplers	20 lbs
205790	14’ Hose Set 1/2” Couplers w/ Pressure Gauges	20 lbs
205791	14’ Hose Set 3/4” Couplers w/ Pressure Gauges	20 lbs
