Pole Setter - EZ SPOT UR - HD

The HEAVY DUTY POLE SETTER

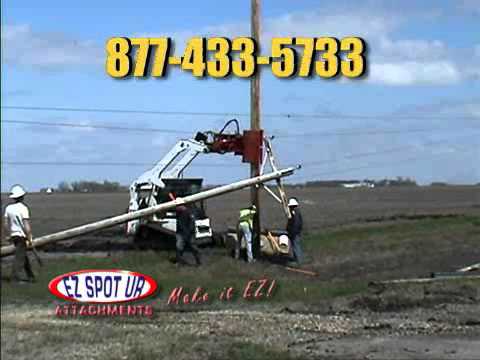

The EZ SPOT UR HEAVY DUTY POLE SETTER is designed to handle big, heavy utility poles up to 45 feet long. With the Heavy Duty Pole Setter, the operator can pick up a pole on the ground, or on a trailer, and rotate up to the vertical. At this point the operator can easily position the pole the way he wants, without any effort, and with a complete security.

The ‘BIG BERTHA’ offers a 115 degree rotation. It opens to 20.5 inches and closes down to 5 inches (0 inches with optional inserts), and assures quick and easy loading, unloading, pulling or setting of 45 foot UTILITY POLES. The HEAVY DUTY DOUBLE POLE CLAW eliminates the need for cranes, slings, and man-hours. The Rubber lining prevents damage, and the second sequencing claw allows for precision setting.

Features

• Fit all the Skid Steers equipped with the Universal Quick’Tach.

• Rotates to 115 degrees .

• Designed with 2 independent jaws that open and close one after another for more security and safety.

• Designed with a double cylinder rotating plate for more stability and precision.

• Made of 1/2 inch steel grade 80 or higher. • Comes standard with rubber lining to protect the pole.

• The clamping is activated by two 3’’ X 6’’ cylinders.

• The backing plate is designed to carry the pole above the skid steer to facilitate the pole transportation and reduce the natural movement of the pole.

• Comes complete with flush faced coupler, spring hose mount and wiring harness

• Can be adapted to Excavator, Wheelloader, Telehandlers and Backhoes.

Faster, and more precise than a crane, the EZ SPOT UR HEAVY DUTY DOUBLE POLE CLAW, also call the ‘BIG BERTHA’ will allow the operator to reach places that were before not permitted with a digger derrick truck.

The Heavy Duty Pole Setter is currently being used in the following industries:

• Utilities • Rural Electric Associations • Electrical Contractors • Mining • Oil • Foundations • Government • Parks and Recreations • Piling and Shoring • Boring and Drilling • Fencing • Wind Tower Installation • Solar Panel Installation • Electric Cooperatives
