Overview

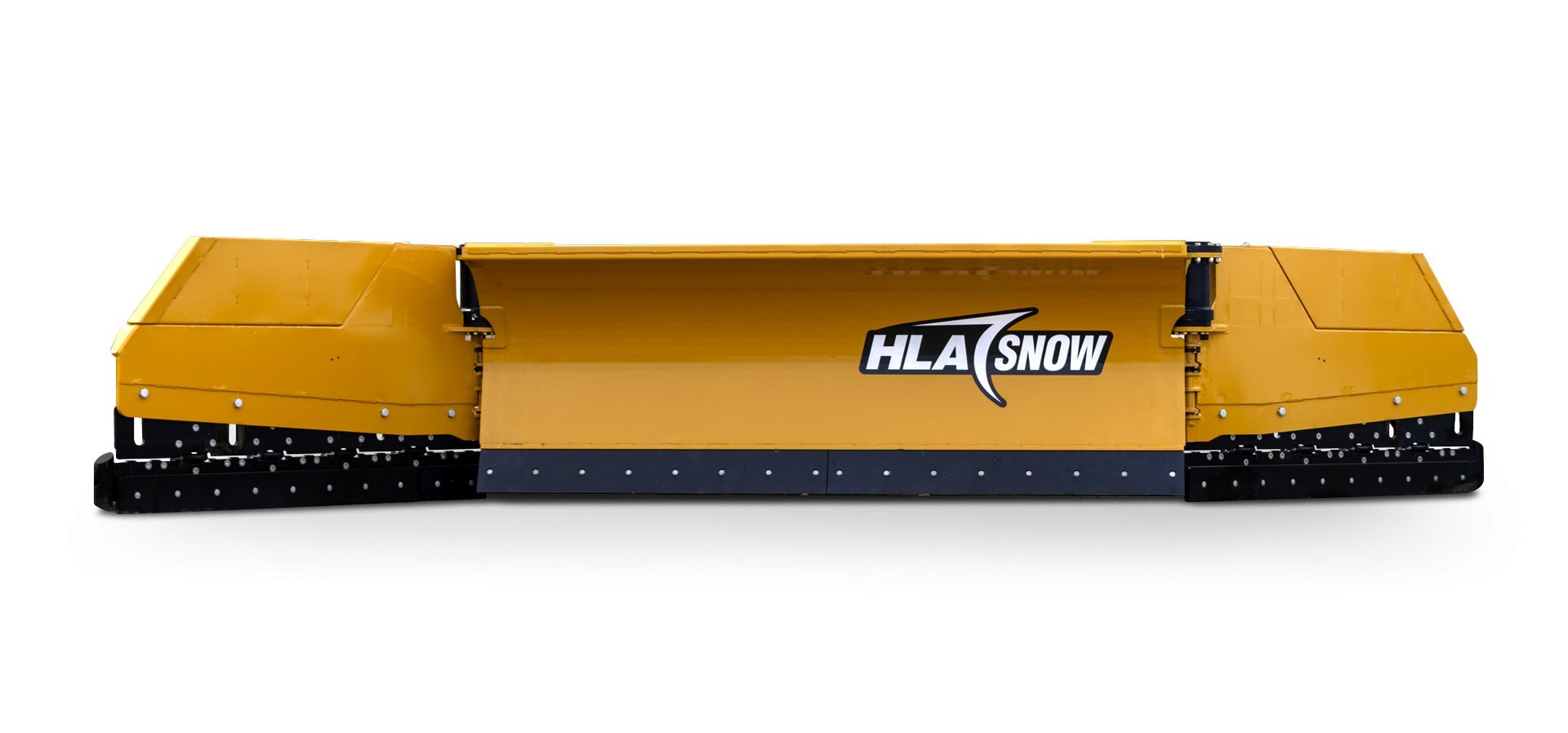

The 5226W Series SnowWing is sized for ag tractors and wheel loaders from 25,000 to 40,000 lbs. operating weight. Featuring 72" long adjustable wings with spring trip protection, powered by patented high-torque rotary actuators, it combines functionality of both angle blades and box pushers, to provide unparalleled efficiency and productivity for commercial contractors.

 FEATURES

2 Year Warranty

Designed for harsh conditions, HLA Snow backs its 3000, 4000, 5000, and 6000 series blades with a 2 Year Commercial Warranty.

6' Wings

The six foot wing models in the SnowWing lineup reach even further, requiring fewer passes to finish each job.

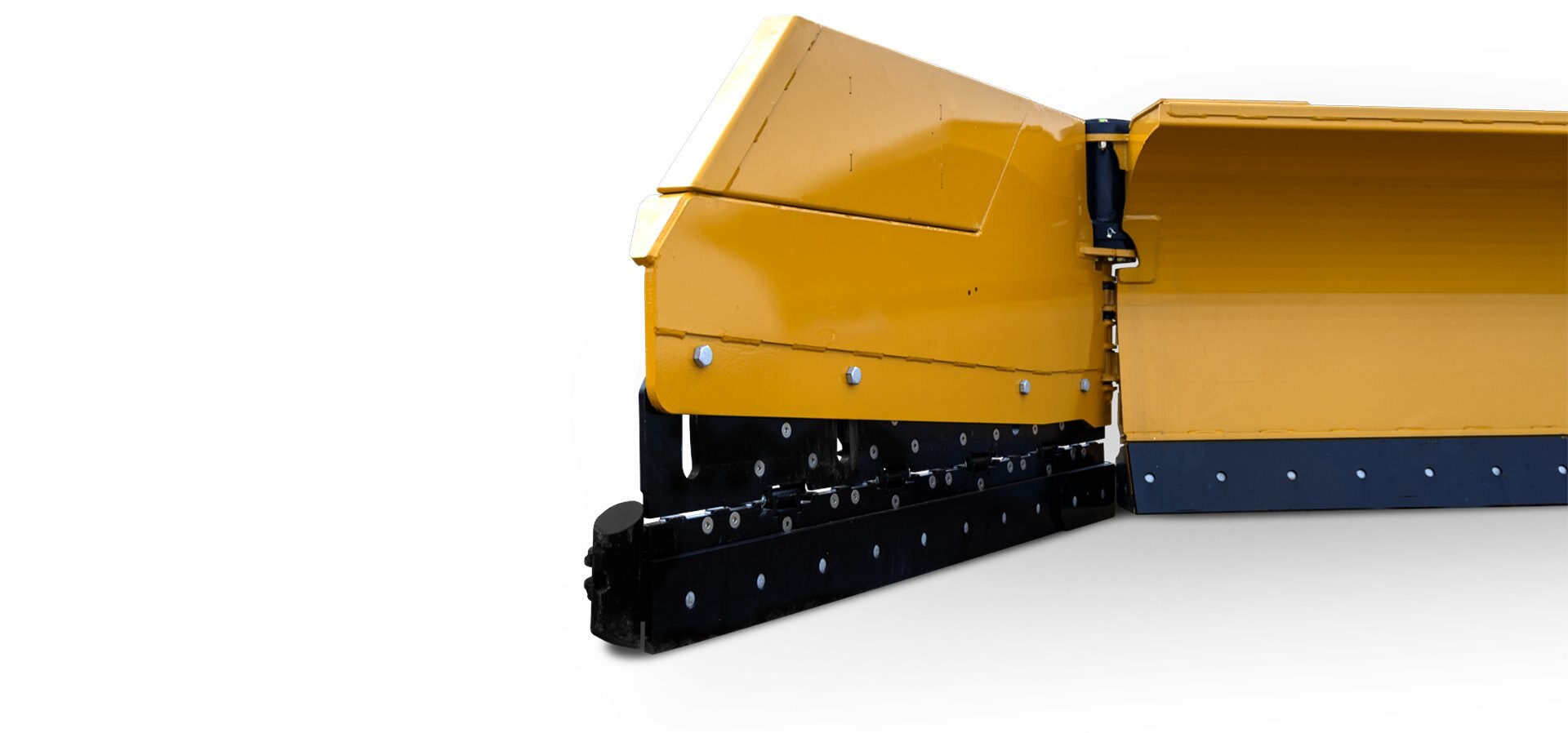

Spring Trip Wing

The six foot wings come standard with a spring trip edge.

Removeable Upper Wing Tip

Each six foot wing model comes standard with removeable upper wing tips. When removed, it forms a contour wing, designed to go under the fifth wheel pin of trailers, clearing those hard to reach places for an even cleaner finish.

180° Rotation

Infinitely and independently adjustable, our wings are rugged enough to stay put and give you control of any situation.

35° Angle with Crossover Relief Valve Protection

Allows the blade to be rotated 35° in either direction, while the cross over relief valve protects from structural damage to either the machine or property.

OPTIONS

Spill Guard

Available on all SnowWing models and the 3000, 4000, 5000, & 6000 series SnowBlades.

Carbide Cutting Edges

Carbide edges are designed for heavy commercial use, this non reversible cutting edge is suited for heavy duty clearing on concrete or asphalt.

NOTE: Colour added to image to highlight carbide.

Foot Switch

The new Foot Switch is a direct replacement for the 3-way toggle switch traditionally used to control the diverter valve on SnowWing plows.

Available as a field install kit to retrofit from a 3-way toggle switch, or as an upgrade option with a new plow order.
