Excavator Attachments



ID # 67285162

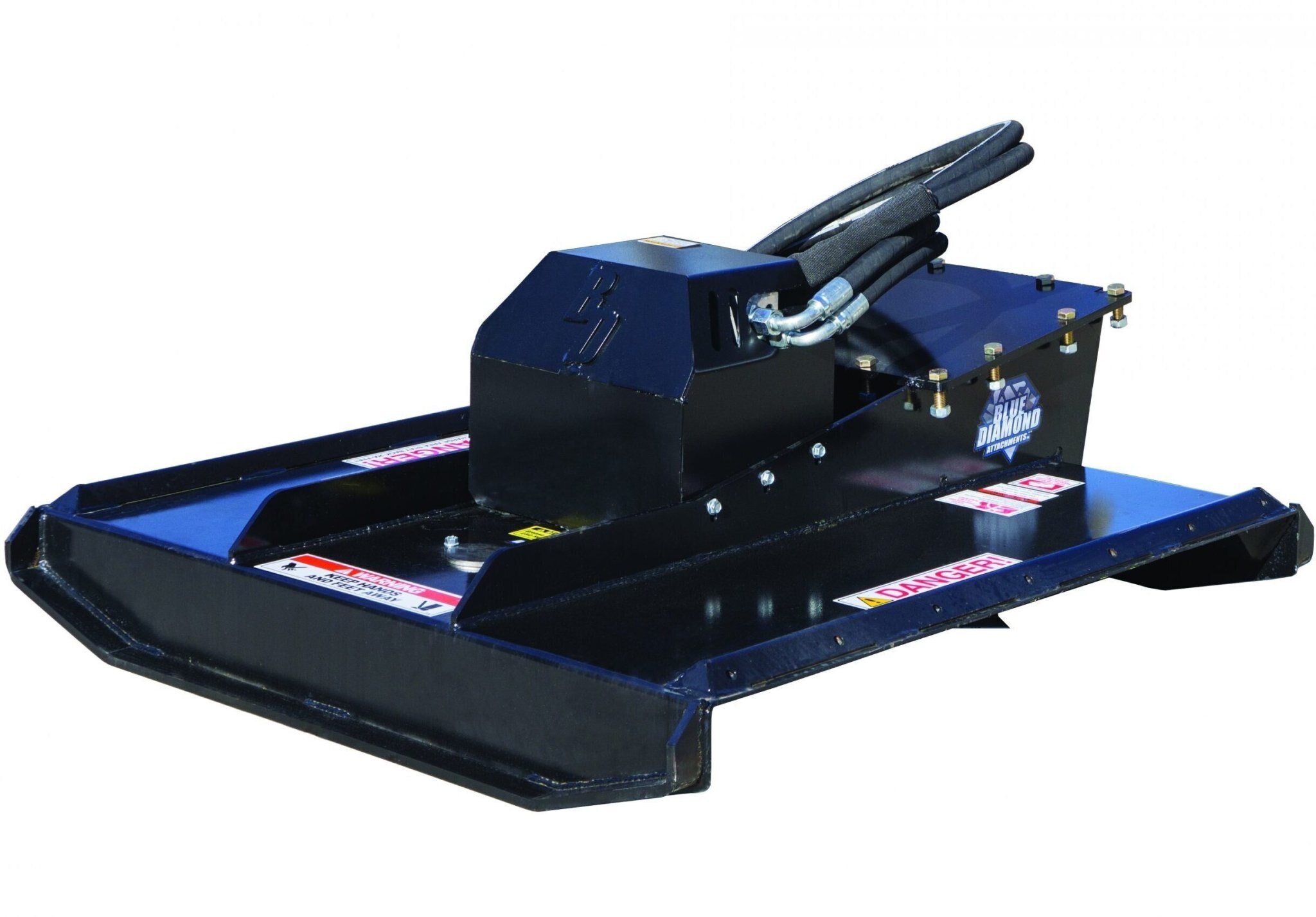

MINI EXCAVATOR BRUSH CUTTER – HEAVY DUTY

Videos
Call for Price
Overview

Blue Diamond® Mini Excavator Brush Cutters are engineered for 6,000 to 19,000 lb mini excavators and offer 36", 42" and 50" cutting widths. The greaseable direct drive system has a 3/4" thick blade carrier that stores energy and keeps the blades cutting even in difficult conditions. These brush cutters use a 3-blade system with straight AR400 double edged blades offering a 4" cutting capacity.

  • 36", 42", and 50" cutting widths
  • 80 CC, 100 CC, and 125 CC hydraulic motor options
  • Greaseable direct drive system
  • 4" cutting diameter
  • Bidirectional operation
  • 3 - AR400 double-sided blades
  • 1/4″ thick deck for 50″
  • 3/16″ thick deck for 36″ and 42″
  • Optional chain guards and deflectors available for 36″ and 42″ models
  • 50" model has standard chain guard
  • No case drain required
Part Number Model Host Machine Size Flow Range (GPM) Chain Curtain Weight (No Mount)
103600 36" W/ 80CC 6,000-15,000 lbs 13-28 Optional 551 lbs
103650 42" W/ 80CC 7,300-19,000 lbs 13-24 Optional 630 lbs
103709 50" W/ 80CC 12,000-19,000 lbs 13-22 Yes 939 lbs
103712 50" W/ 100CC 12,000-19,000 lbs 23-28 Yes 934 lbs
203662-KIT Optional Chain Guard Kit 36"       60 lbs
203665-KIT Optional Chain Guard Kit 42"       80 lbs
Specifications
Model
Heavy-Duty
Category Name
Excavator Attachments
Sale Type
New
Manufacturer
Blue Diamond
