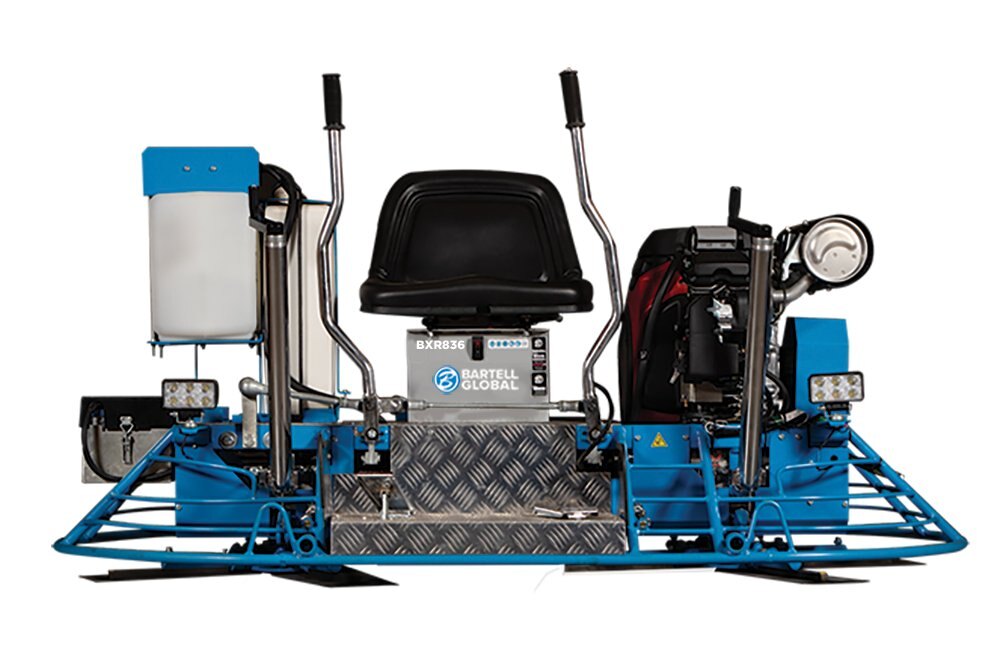

BARTELL BX836 RIDE-ON TROWEL

Call for Price
Overview

BXR836

  • Small footprint and responsive steering provide maneuverability in tight spots
  • Equipped with gasoline or propane engine
  • Heavy-duty gearbox provides longer life and less maintenance

Powered Vertical Bk EN

Product Description

At just 615 pounds, and very compact dimensions, this unit can be transported with ease and placed on a slab very early in the process. Great for getting into tight areas and for use where stickups are present.

The BXR836 is also great for multi-story applications due to its ease of hoisting. With its low profile, this unit gives the best sight-line of the slab and you can feel the concrete as it progresses in its finish transition.

The BXR836 is the perfect jump to riding, for those currently only walking.

  • Equipped with gasoline or propane engine
  • Heavy-duty gearbox provides a longer life and less maintenance
  • Twin stick, multi-directional levers deliver immediate, responsive steering
  • Low profile provides excellent visibility
  • Non-overlapping design for floating/panning
  • Dual 4 blade trowel standard
Blade Configuration Panning & Finishing (Non-Overlapping)
Engine Type Gas Honda GX690 Propane Vanguard 627cc
Power Output 22hp (16kW) 21hp (15.7kW)
Blade RPM 145 130
Float Blade Size 10" x 14" (25cm x 36cm)
Finish Blade Size 6" x 14" (15cm x 36cm)
Combo Blade Size 8" x 14" (20cm x 36cm)
Float Pan 36.5" (93cm)
Weight 615lbs (279kg) 635lbs (288kg)
Operating Weight 650lbs (295kg) 655lbs (297kg)
Length 73" (186 cm)
Width 38.5" (98cm)
Height 41" (104cm)
Specifications
Model
BXR836
Category Name
Concrete Tools
Sale Type
New
Manufacturer
Bartell
